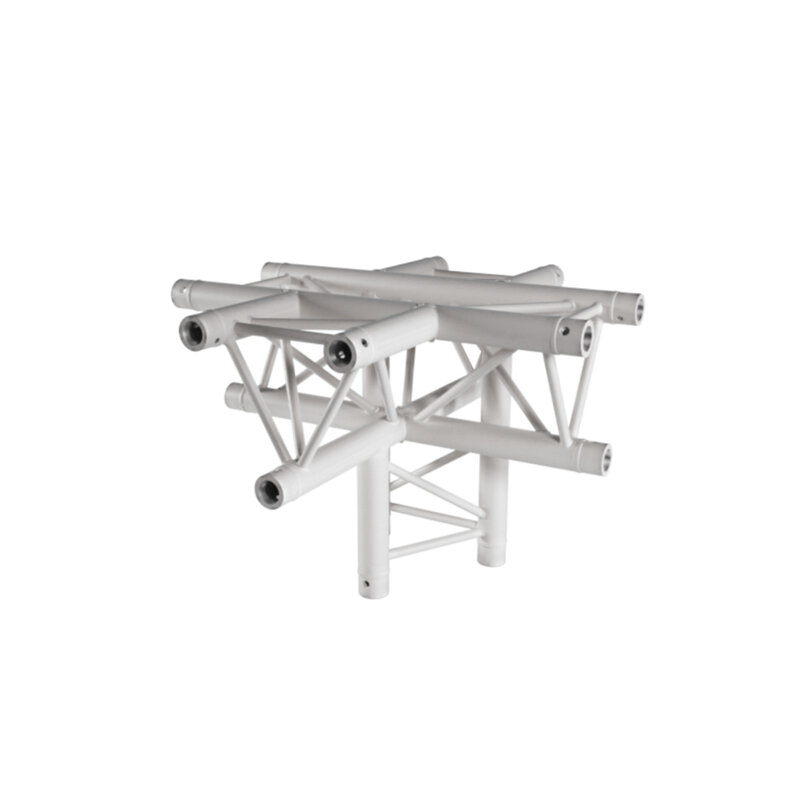

Traliccio triangolare da 290 mm, giunto angolare a 4 direzioni di 90°, vertice basso, bianco.
290 mm triangular truss, 90° 4-way corner joint, low vertex, white.
Structure triangulaire de 290 mm, joint d'angle à 4 voies à 90°, sommet bas, blanc.
Dati tecnici
Technical characteristics
- Triangular section with 240 mm distance between each tube (290 mm outside)
- 50 mm tubes
- 16 mm threads
- Taper pin and key assembly
- Tee + mast – 4 directions
- Section: 290 mm
- Color: white
- Application: horizontal tee + vertical mast junction
- Manufactured to ISO DIN 4113 and TÜV standards
- Aluminium alloy structure (EN AW 6082 T6)

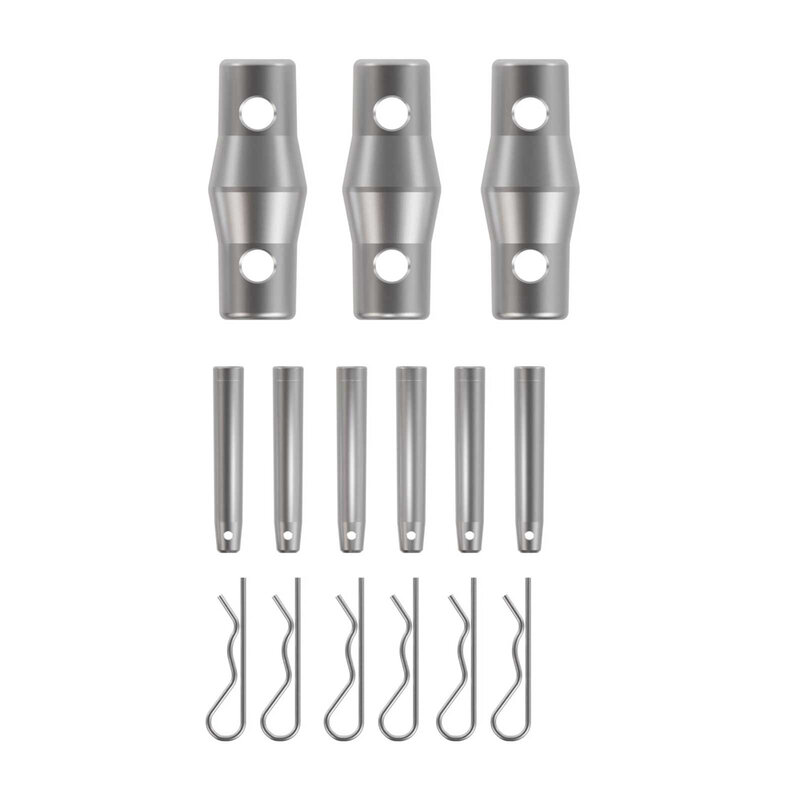

- Supplied with 2 x connection kit
- Max. dimensions: 50 x 71 cm
