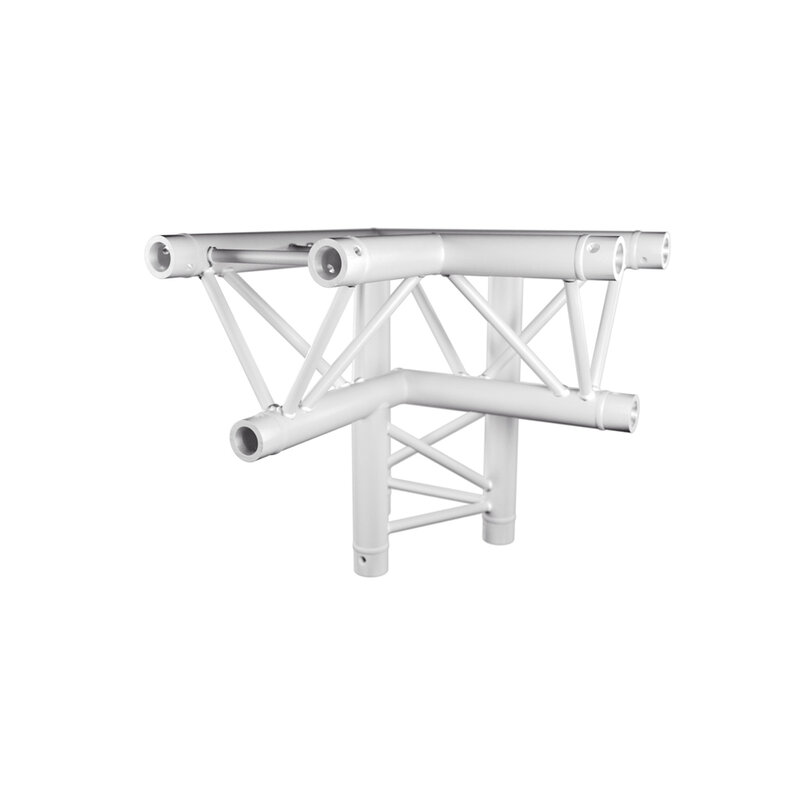

Traliccio triangolare in alluminio da 290 mm, giunto angolare 3 direzioni a 90°, vertice in basso a sinistra, bianco.
290 mm aluminum triangular truss, 3-way 90° corner joint, top bottom left, white.
Structure triangulaire en aluminium de 290 mm, joint d'angle à 3 voies 90°, sommet bas gauche, blanc.
Dati tecnici
Technical characteristics
- Triangular section with 240 mm distance between each tube (290 mm outside)
- 50 mm tubes
- 16 mm threads
- Taper pin and key assembly
- Angle – 3 directions: 90°
- Section: 290 mm
- Color: white
- Application: horizontal/vertical junction, left, point down
- Manufactured to ISO DIN 4113 and TÜV standards
- Aluminium alloy structure (EN AW 6082 T6)
- Max. dimensions: 50 x 50 cm

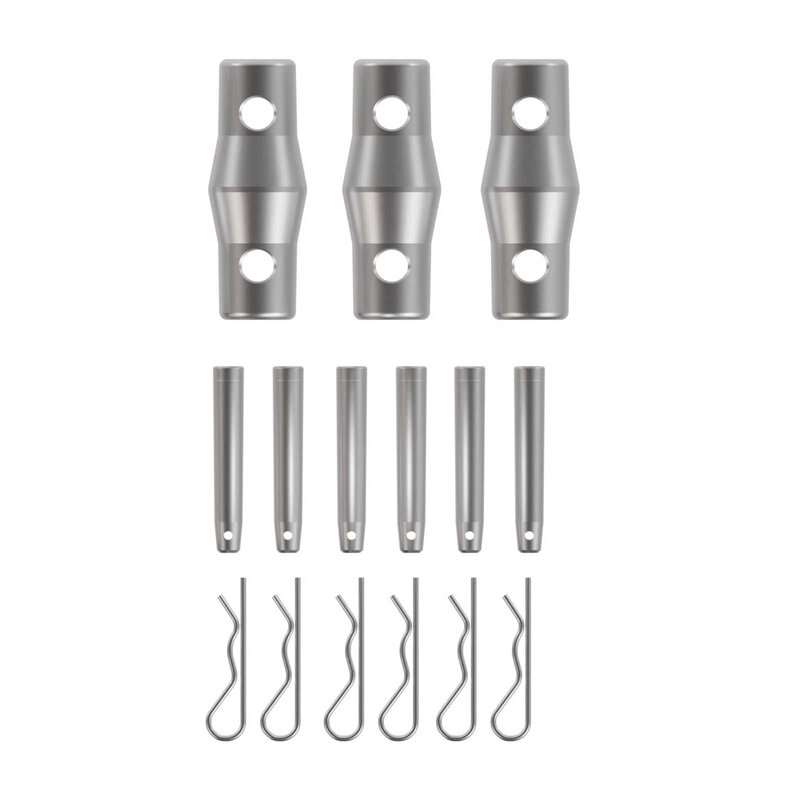

- Supplied with 2 x connection kit
