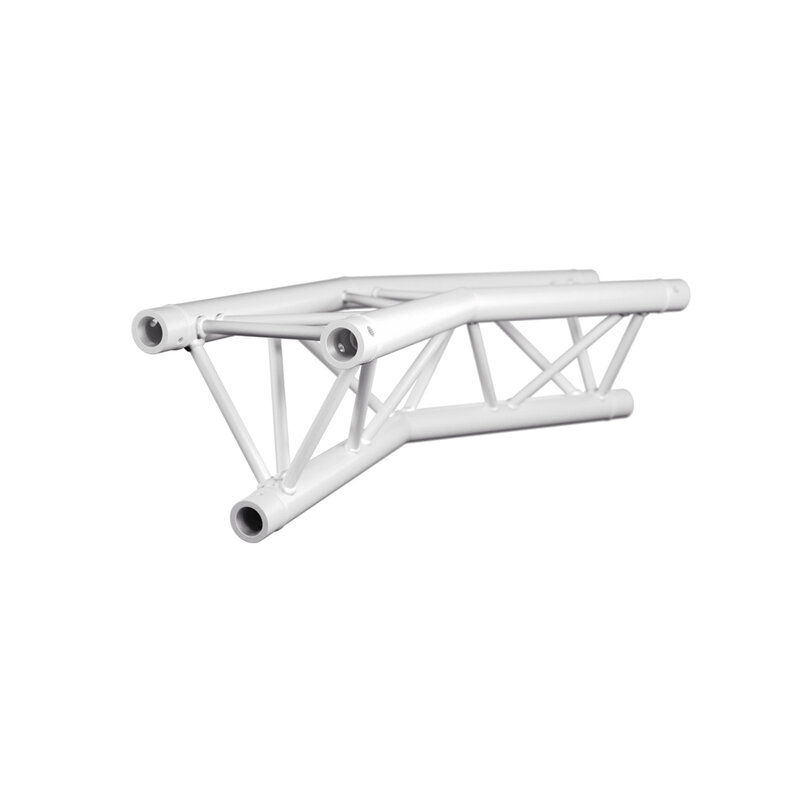

Traliccio triangolare in alluminio da 290 mm, giunto angolare a 135°, bianco.
290 mm aluminium triangular truss, 135° corner joint, white.
Structure triangulaire en aluminium de 290 mm, joint d'angle de 135°, blanc.
Dati tecnici
Technical characteristics
-
- Triangular section with 240 mm distance between each tube (290 mm outside)
- 50 mm tubes
- 16 mm threads
- Taper pin and key assembly
- Angle - 2 directions: 135°
- Section: 290 mm
- Color: white
- Manufactured to ISO DIN 4113 and TÜV standards
- Aluminium alloy structure (EN AW 6082 T6)
- Application: horizontal joint, point down

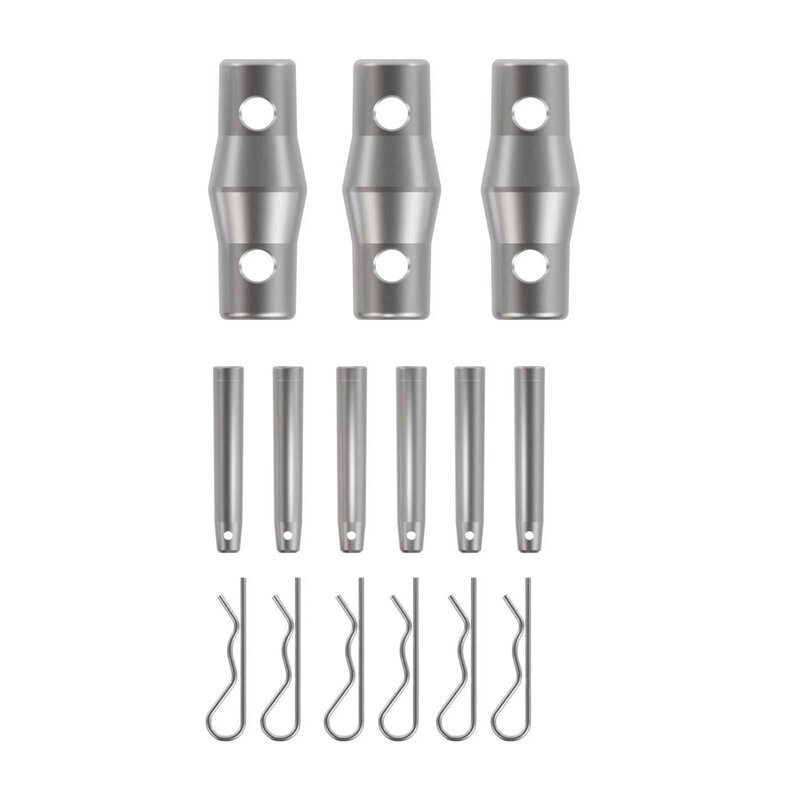

- Supplied with 1 x connection kit
- Max. dimensions: 50 x 50 cm
- Weight: 4.8 kg
