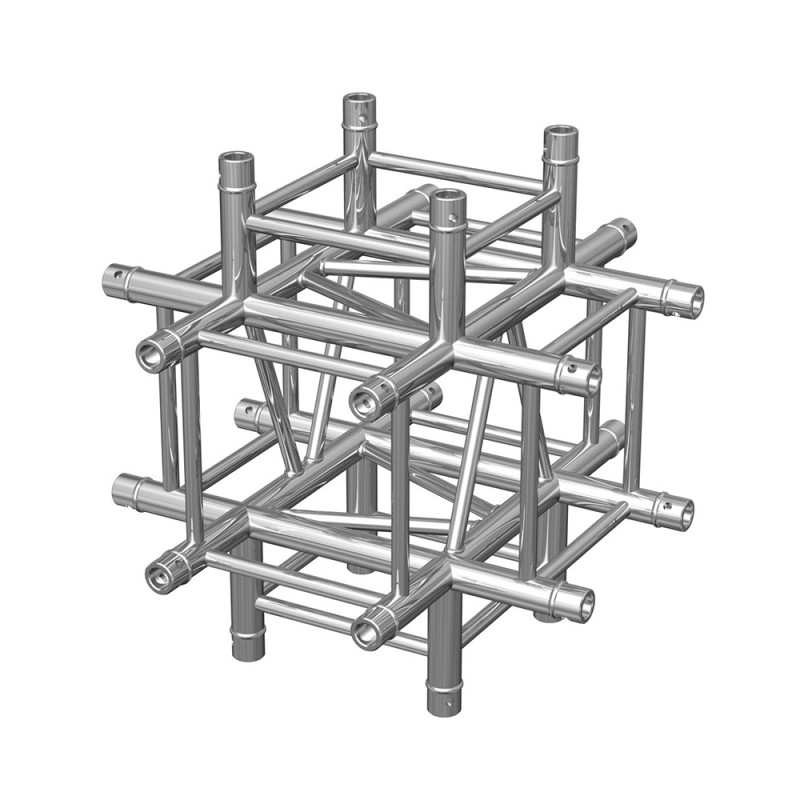

H10060 - AGQUA-08

Quatro angle - 90° - 6 directions - Connection kits included
NON DISP.

641.30€ Prezzo di listino (IVA esclusa)

Descrizione
ITENFR

Americana quadrata da 290 mm, giunto angolare a 6 direzioni. Angolo di 90°. Certificata ISO DIN 4113 e TÜV. Realizzata in lega di alluminio (EN AW 6082 T6, diametro 50 mm, spessore 2 mm). Connettori e perni conici per installazione e smontaggio rapidi. Installazione sicura, stabile e resistente garantita. Adatta per palcoscenici, stand fieristici, palchi da concerto e DJ, teatri, discoteche, lounge, giardini ed eventi all'aperto.

290 mm square truss 6 directions corner joint. 90° angle. ISO DIN 4113 and TÜV certified. Made in aluminium alloy (EN AW 6082 T6, diameter 50 mm, thickness 2 mm). Conical connectors and pins for quick set up and disassembling. Safe, stable and resistant installation guaranteed. Suitable for stage structures, exhibition booths, concert and DJ stages, theaters, discoteques, lounges, gardens and outdoor events.

Angle Quatro 6 directions 90°. Fabrication répondant aux normes ISO DIN 4113 et TÜV. Structure en alliage d'aluminium (EN AW 6082 T6) de 50 mm de diamètre et 2 mm d?épaisseur. Section carrée pour supporter de plus grandes charges, assemblage par manchons coniques.

Dati tecnici

  • 50 mm tubes
  • 16 mm threads
  • 240 mm square section with 240 mm centre-to-centre distance between each tube (290 mm outside)
  • Tapered pin and key sleeve assembly
  • Angle 6 directions: 90°.
  • Use: horizontal and vertical junction

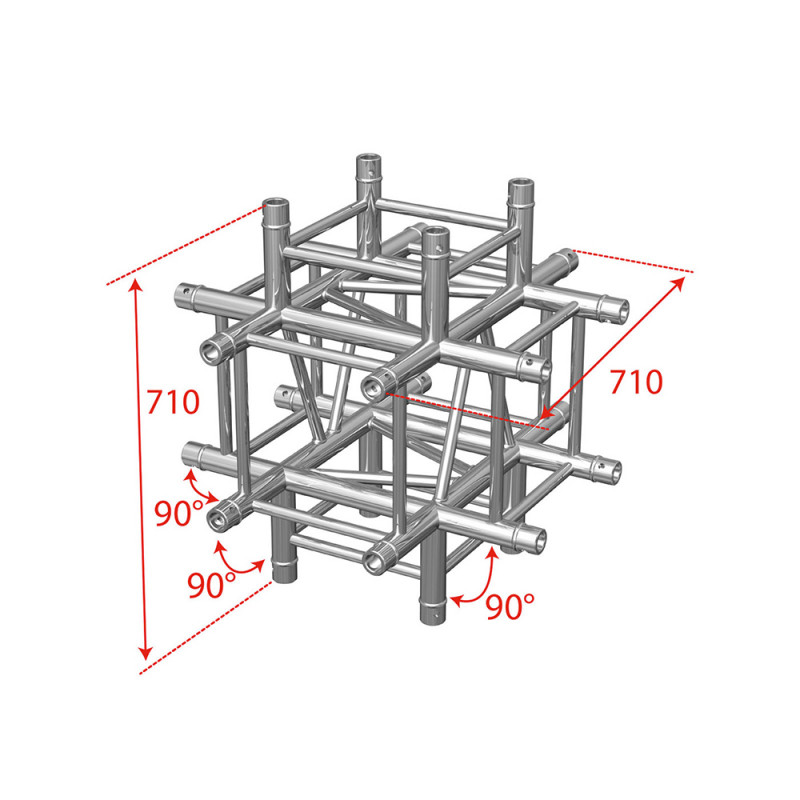

  • Max. dimensions: 71 cm x 71 cm x 71 cm
  • Manufactured in accordance with ISO DIN 4113 and TÜV.
  • Made of 50 mm aluminium alloy (EN AW 6082 T6, diam 50 mm, thickness 2 mm)
  • The conical connectors and pins allow you to set it up quickly, and guarantee a very safe, stable and resistant installation. Disassembling it is also very quick.
