Caratteristiche principali:
La ga mma PRO è compatibile con le piattaforme più utilizzate dai provider. Grazie alla loro struttura, queste piattaforme possono essere utilizzate sia all'interno che all'esterno. La parte superiore è realizzata in compensato resistente all'acqua con rivestimento antiscivolo. Le piattaforme possono essere supportate solo da gambe rotonde della serie PRO. Il sistema di bloccaggio rapido delle gambe garantisce una buona stabilità al set.Sicurezza
Resistenza

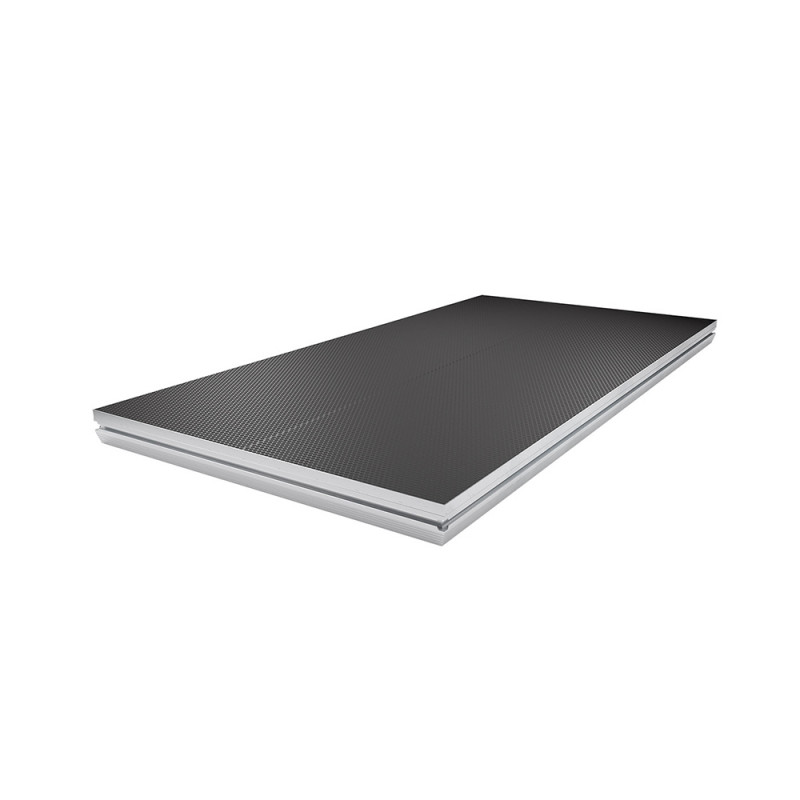

PRO platform 2 m x 1 m x 15 mm, non-slip, 750 kg/m2, black finish, compatible with all Contestage round legs and stairs and only with PLTPRO series guardrails.
PRO Platforms
The PRO range is compatible with the platforms most used by providers.
Thanks to their structure, they can be used both indoors and outdoors. The top of the platform is made of water-resistant plywood with a non-slip coating.
Compatible with these types of round feet
Platforms can be supported by PRO series round legs only. The quick-locking system of the legs ensures a good stability to the set.
About security
In accordance with the NF E85-015 standard:
– A maximum height of 150 cm is allowed
– A guardrail must be installed if the height to be climbed is greater than 50 cm.
These provisions are not exhaustive. For other requirements, please refer to the standard mentioned above.
Attention to soil capacity:
A loose floor can affect the safety of the installation.
Please distribute the loads evenly over the entire platform surface.
About railings and stairs:
A guardrail must be installed as soon as the height of fall is higher than 50 cm.
A staircase less than or equal to 120 cm wide must have at least one handrail.
Resistance
Fire resistance :
Fire resistance class: BFL-S1 (corresponds to the French M1 class).
It complies with the European standard EN13501-1+A1:2010
Resistance Water resistance :
The top is made of birch multi-ply plywood filmed underneath and covered with a non-slip coating on top.
It is designed to withstand water splashes, so it can withstand the occasional rain.
It should not be i mmersed and installed for a long period of time or stored outdoors as it may swell and reduce the load capacity.
Plate-forme PRO 2 m x 1 m x 15 mm, antidérapante, 750 kg/m2, finition noire, compatible avec tous les pieds ronds et échelles Contestage et uniquement avec les garde-corps de la série PLTPRO.
Caractéristiques principales :
La gamme PRO est compatible avec les plateformes les plus couramment utilisées par les fournisseurs. Grâce à leur structure, ces plates-formes peuvent être utilisées aussi bien à l'intérieur qu'à l'extérieur. La partie supérieure est fabriquée en contreplaqué résistant à l'eau avec un revêtement antidérapant. Les plateformes ne peuvent être soutenues que par des pieds ronds de la série PRO. Le système de verrouillage rapide des pieds garantit une bonne stabilité de l'ensemble.
Sécurité
Ces dispositions ne sont pas exhaustives. Pour d'autres exigences, veuillez vous référer à la norme mentionnée ci-dessus. P.S. Un sol ou un plancher instable peut compromettre la sécurité de l'installation : veuillez répartir les charges de manière homogène sur toute la surface de la plate-forme.
Résistance

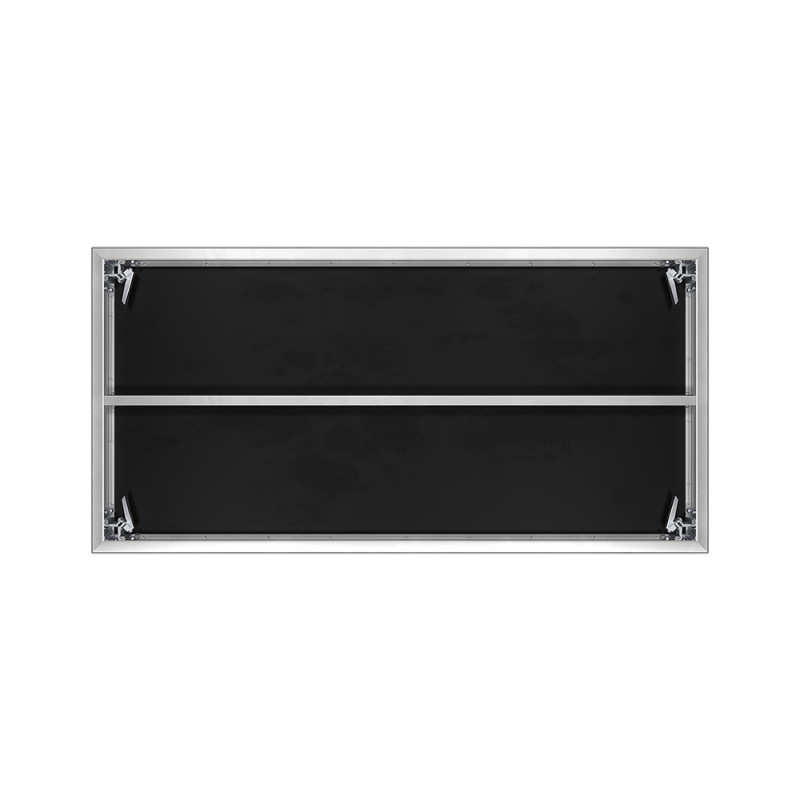

Material | Frame: aluminum Top: 15 mm plywood with anti-slip coating |
Dimensions | 2 m x 1 m |

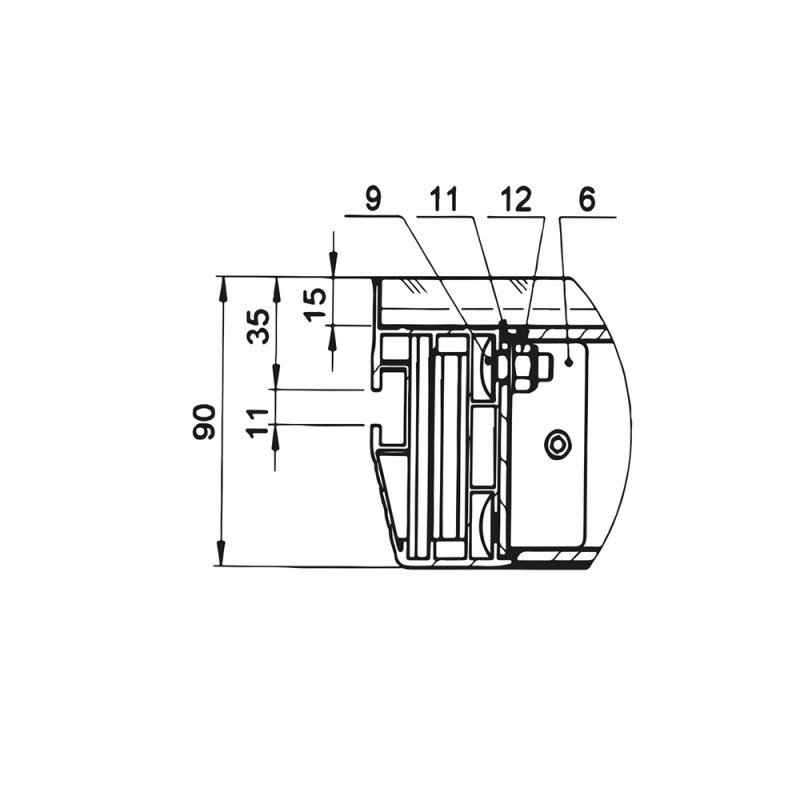

Thickness | 90 mm |
Distributed load eligible | 750 kg/m² |
Finish | Aluminum / black |
Weight | 39 kg |
