Faro spot a LED per applicazioni teatrali, studi televisivi, produzioni itineranti, auditorium, concerti, stand fieristici, showroom, destinato a service e noleggiatori.
Utilizza un LED COB bianco da 50 W con alto fattore CRI di 92. Comportamento della sorgente luminosa selezionabile: alogena (lento) o LED (veloce). 4 sono le curve dimmer: lineare, quadrata, quadrata inversa, curva a S. Presente lo zoom manuale da 10 a 50°. Il paraluce a 4 alette a bandiera è incluso.
Il controllo avviene tramite DMX con 4 diverse modalità di canale ed è disponibnile la funzionalità RDM per la configurazione remota. Presenti anche le modalità stand-alone e Master/Slave, mentre in caso di guasto DMX è possibile scegliere tra blackout e freeze. Per la navigazione nei vari menu è presente un display LCD.
Infine, il corpo del faro è realizzato in alluminio estruso anodizzato nero con una robusta staffa.
LED spotlight for theater applications, television studios, touring productions, auditoriums, concerts, exhibition stands, showrooms, suitable for services and rental companies.
Uses a 50 W white COB LED with high CRI factor of 92. Selectable light source behavior: halogen (slow) or LED (fast). There are 4 dimmer curves: linear, square, inverse square, S-curve. There is a manual zoom from 10 to 50°. The 4-wing barndoor is included.
Control is via DMX with 4 different channel modes and RDM functionality is available for remote configuration. There are also stand-alone and Master/Slave modes, while in the event of a DMX failure it is possible to choose between blackout and freeze. For navigation in the various menus there is an LCD display.
Finally, the fixture body is made of black anodized extruded aluminum with a sturdy bracket.
Projecteur à LED pour les applications théâtrales, les studios de télévision, les tournées, les auditoriums, les concerts, les stands d'exposition, les salles d'exposition, les sociétés de location et de services.
Il utilise une LED COB blanche de 50 W avec un facteur CRI élevé de 92. Le comportement de la source lumineuse peut être sélectionné : halogène (lent) ou LED (rapide). 4 courbes de gradation : linéaire, carrée, carrée inversée, courbe en S. Zoom manuel de 10 à 50°. Coupe-flux à quatre volets inclus
Le contrôle s'effectue via DMX avec 4 modes de canaux différents et la fonctionnalité RDM est disponible pour la configuration à distance. Les modes autonome et maître/esclave sont également présents et, en cas de défaillance du DMX, il est possible de choisir entre le blackout et le freeze. Un écran LCD permet de naviguer dans les menus.
Enfin, le corps du luminaire est en aluminium extrudé anodisé noir avec un support robuste.
Technical characteristics
Power input | 100 - 240 VAC 50/60 Hz |
Energy label | no |
Power consumption | 50 W |
Color | black |
Display | LCD |
Fixation | optional standard clamp |
IP rating | indoor |
Manual | yes |
Master/Slave | yes |
SMART-DMX | no |
Standalone | fixed |
Programmable | no |
Upgradable software | yes |
Max. DMX channels | 3 |
Lamp socket | none |
Lamp | COB |
Min. color temperature | 3200 K |
Max. color temperature | 3200 K |
CRI | 92 |
Colors | warm white |
Mix colors | no |
Functions | manual zoom |

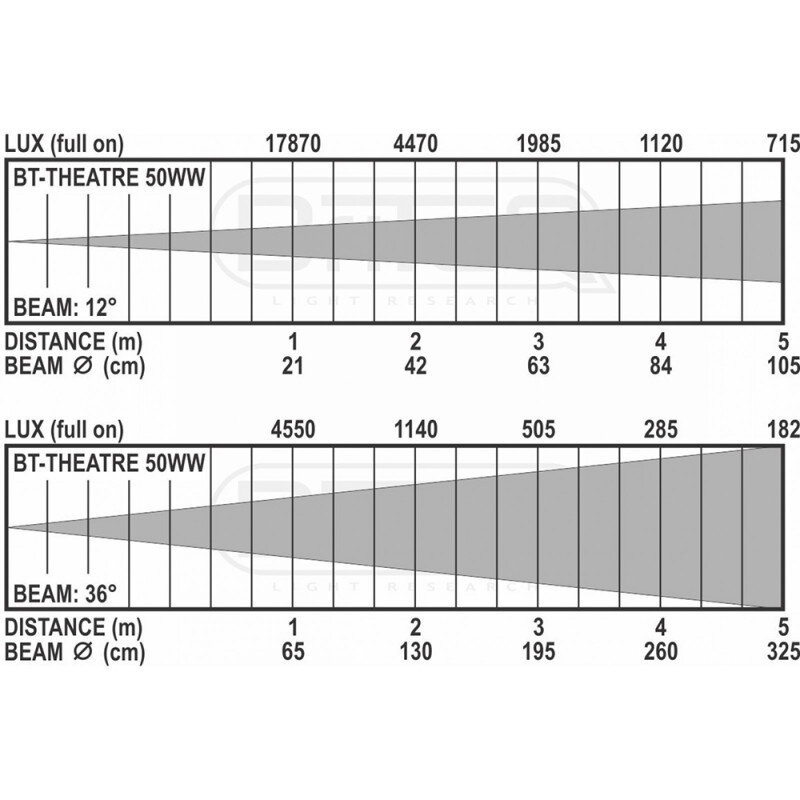

Min. beam angle | 10° |
Max. beam angle | 50° |
Min. refresh rate | 1.2 kHz |
Max. refresh rate | 1.2 kHz |
Input | 3-pin XLR, Schuko CEE 7/7, RDM |
Output | 3-pin XLR |

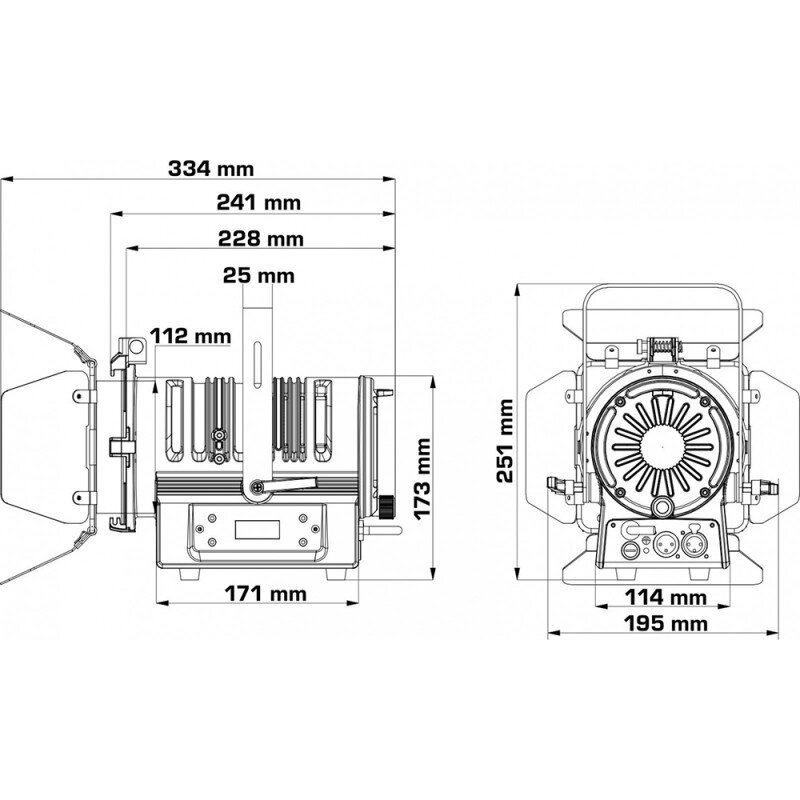

Dimensions | 24.1 x 25.1 x 19.5 cm |
Weight | 3.63 kg |
