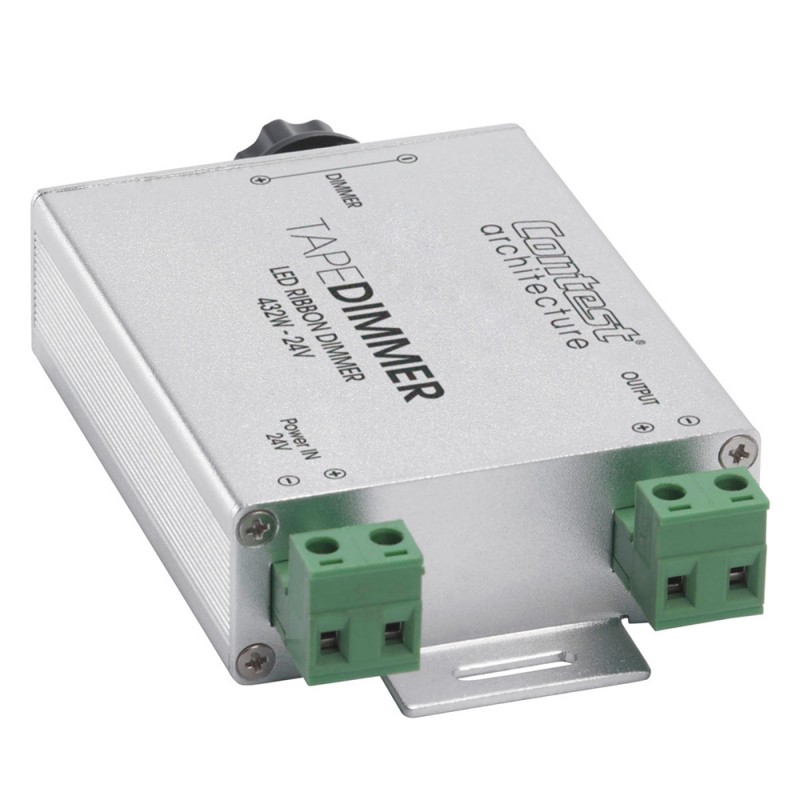

H9866 - TAPEDIMMER

1-channel dimmer for a 24 V ribbon

50.30€ Prezzo di listino (IVA esclusa)

Descrizione

Dimmer ultracompatto a 1 canale per nastro 24 V 432 W max. Controller a manopola per impostare manualmente l'intensità della luminosità dei nastri PURETAPE. Compatibile con alimentatori da 24 V.
Ultra-compact 1-channel dimmer for a 24 V ribbon 432 W max. Knob controller to set manually the brightness intensity of PURETAPE ribbons. Compatible with 24 V power supply units.

Variateur ultra-compact à 1 canal pour un ruban 24 V 432 W max. Contrôleur à bouton rotatif pour la gradation manuelle des rubans PURETAPE. Compatible avec les alimentations de 24 V.

Dati tecnici

General Characteristics:

  • Compatible with the monochromatic ribbons
  • Compatible with the 24 V power supply units
  • Max power: 432 W @ 24 V
  • Control: Use the control knob to set the intensity
  • Input: 24 VDC, 432 W max.
  • Ribbon output: 24 VDC, 432 W max, 400 Hz
  • You can use only 1 out of the 3 monochromatic ribbon channels
  • IP20: Cannot be used outdoor

Additional Characteristics:

  • Dimensions: 112 x 65 x 24 mm
  • Weight: 0.5 kg
  • Power supply: 24 VDC (not supplied), ribbon power supply unit
