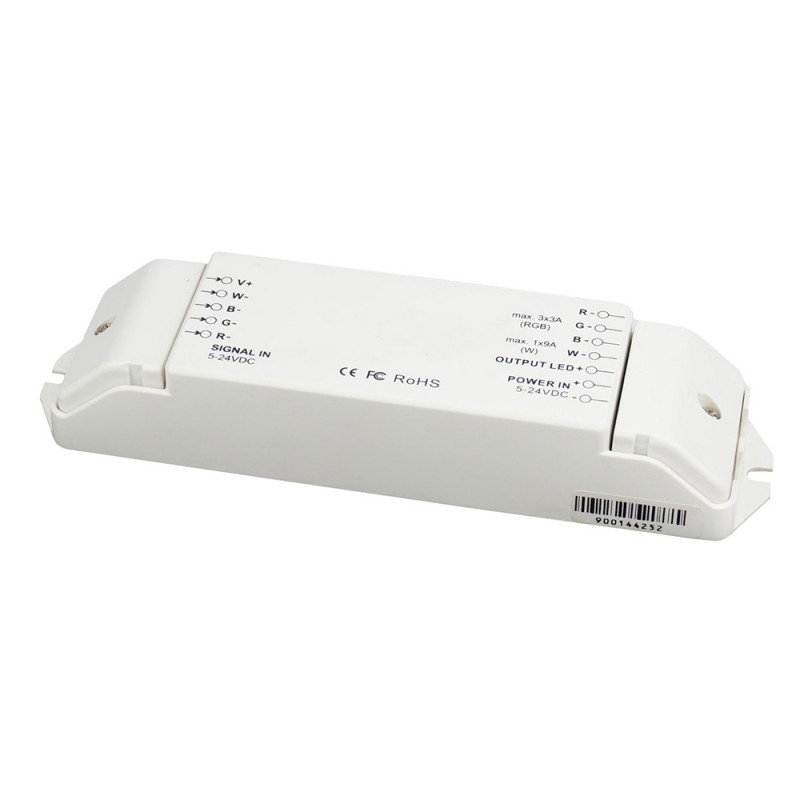

H10770 - TAPEBOOSTER RGB W

4-Channel signal booster 5-24 VDC - 3 x 3A + 1 x 9A max.

107.70€ Prezzo di listino (IVA esclusa)

Descrizione

Amplificatore di segnale a 4 canali - 5-24 VDC - RGB 3 x 3A o monocromatico 1 x 9A max. Per nastri monocromatici e RGB.
4-Channel signal booster - 5-24 VDC - RGB 3 x 3A or monochromatic 1 x 9A max. For monochromatic and RGB ribbons.
Amplificateur de signal à 4 canaux - 5-24VDC - RGB 3 x 3 A ou monochrome 1 x 9 A max. Pour les rubans monochromes et RGB.

Dati tecnici

Input voltage DC5V-DC24
Max Load Current

RGB: 3A×3CH

W: 9A×1CH

Output signal Constant voltage PWM
Max output power

RGB: 72W×3CH

W: 216W(24 V)

Product Dimension L176 × W46 × H30(mm)
Gross Weight 145g
