Pinspot LED RGB W IP65 a fascio singolo per applicazioni di spettacolo e architetturali. PROIETTORE: Pinspot LED 60 W RGB W impermeabile progettato per ogni tipo di evento dal vivo, palco da concerto, spettacolo televisivo, stand fieristici, illuminazione architetturale, installazione esterna, illuminazione di facciate. SORGENTE LUCE: LED RGB W a singolo beam con assorbimento di 60 W. Frequenza di refresh LED 1200 Hz senza flickering. Comportamento della lampada selezionabile: alogena (lento) o LED (veloce). 4 curve dimmer: lineare, quadrata, quadrata inversa, curva a S. Regolazione del bilanciamento del bianco. CONTROLLO: controllo DMX con 4, 6, 7 canali. Funzione RDM per una facile configurazione remota. In caso di guasto DMX è possibile scegliere tra modalità blackout e freeze. FUNZIONI: Angolo di apertura del fascio: 15°. Classificazione IP65. Raffreddamento con ventola. DMX IN/OUT a 5 poli e Neutrik powerCON IN/OUT per collegamento in cascata. Display LCD per la navigazione nel menu di configurazione.
Single beam IP65 RGB W LED Pinspot for entertainment and architectural applications. FIXTURE TYPE: Waterproof LED 60 W RGB W Pinspot designed for every kind of live event, concert stage, TV show, exhibition booth, architectural lighting, outdoor installation, facade lighting. LIGHT SOURCE: RGB W LED single beam with 60 W power consumption. Flicker free 1200 Hz LED refresh rate. Selectable lamp behavior: halogen (slow) or LED (fast). 4 dimmer curves: linear, square, inverse square, S-curve. White balance adjustment. CONTROL: DMX control with 4, 6, 7 channels. RDM function for easy remote setup. In case of DMX failure you can choose between blackout and freeze mode. FEATURES: Beam angle: 15°. IP65 rating. Fan cooling. 5-pin DMX IN/OUT and Neutrik powerCON IN/OUT for easy daisy chaining. LCD display for setup menu navigation.
Elégant projecteur LED type Pinspot IP65 RGBW, idéal pour tous types événements ( les concerts, les studios TV, les théâtres, les discothèques, les clubs, les salons d’exposition, les installations architecturales, les éclairages de façade, les événements intérieurs, les sociétés de location). Il est équipé d’une LED 60 W RGB W étanche. Idéal pour les shows TV et captation caméra avec un taux de rafraîchissement de 1200 Hz, évite les scintillements. 4 courbes de gradation : linéaire, carré, carré inversé, courbe en S. Réglage de la balance des blancs.
CONTROLE : mode DMX utilisant 4, 6 ou 7 canaux. Choix d’un mode black-out ou freeze en cas de défaillance du DMX. Fonctionnalité RDM pour une configuration à distance simple.
CARACTERISTIQUES : angle du faisceau 15°. Indice protection IP65. Refroidissement par ventilateur. Connecteurs XLR DMX entrées/sorties 5 broches et connecteurs NeutrikPowerCON® entrée/sortie pour un branchement facile en série et une installation rapide. L’écran LCD permet une navigation facile à travers les différents menus de configuration.
Dati tecnici

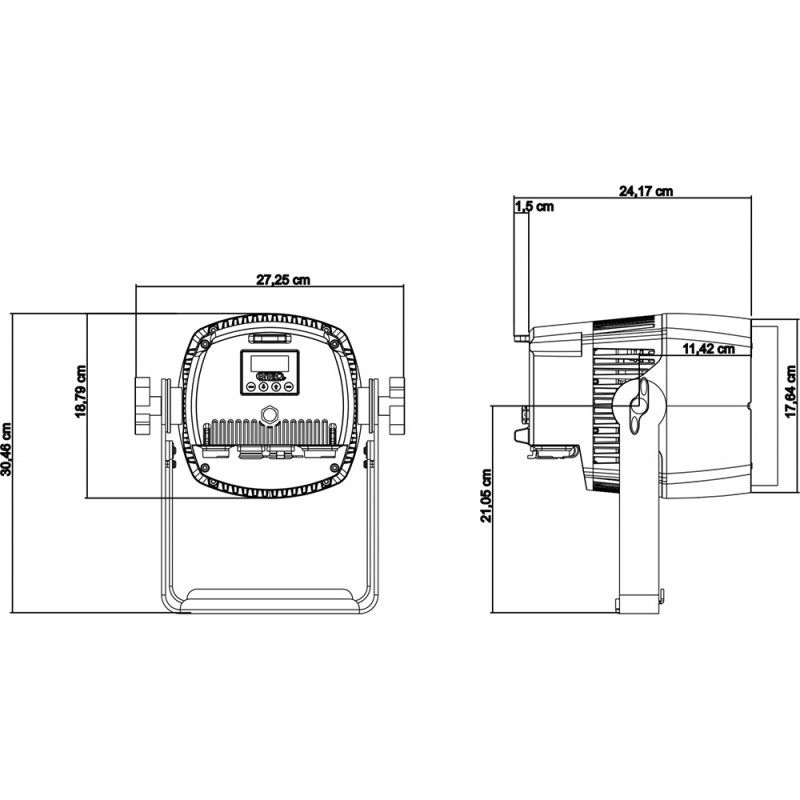

| General: Dimensions (cm) |
24 x 27 x 30 |
| General: Weight ( kg) |
5.43 |
| General: Power input |
AC 100 - 240V, 50/60 Hz |
| General: Energy Label |
No |
| General: Power consumption W |
70 |
| General: Color |
black |
| General: Display |
touchscreen |
| General: Fixation |
optional omega bracket |
| General: IP rating |
outdoor |
| Control: manual |
Yes |
| Control: Master/Slave |
Yes |
| Control: SMART-DMX |
No |
| Control: Standalone |
automatic, fixed |
| Control: programmable |
No |
| Control: upgradable software |
Yes |
| Control: maximum DMX channels |
7 |
| Light: lamp socket |
No |
| Light: lamp |
LED |
| Light: colors |
RGB, RGB W |
| Light: mix colors |
Yes |

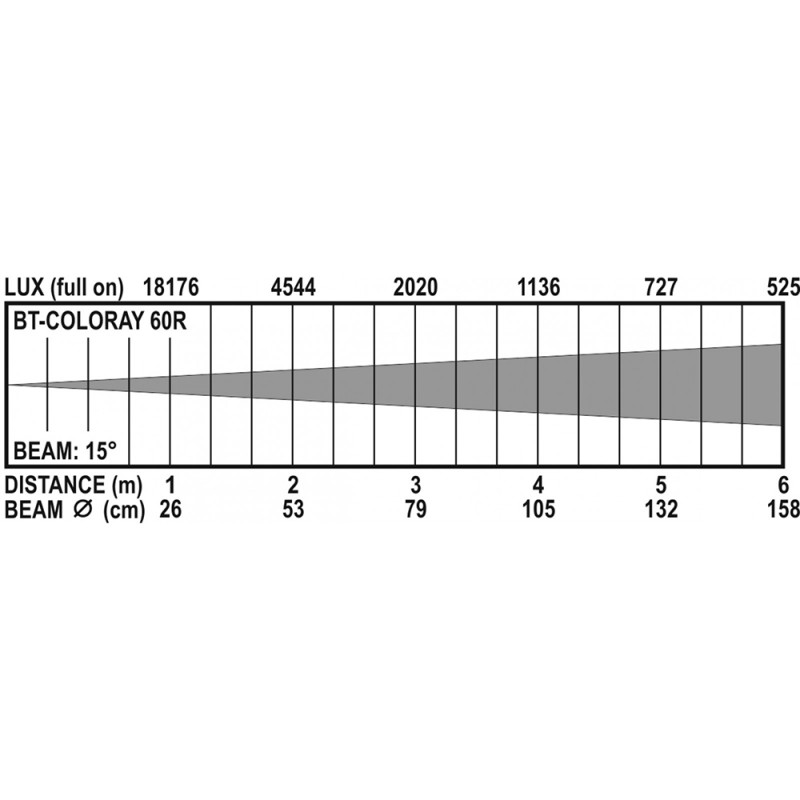

| Light: min. beam angle (°) |
15 |
| Light: max. beam angle (°) |
15 |
| Light: min. refresh rate ( kHz) |
No |
| Light: max. refresh rate ( kHz) |
No |

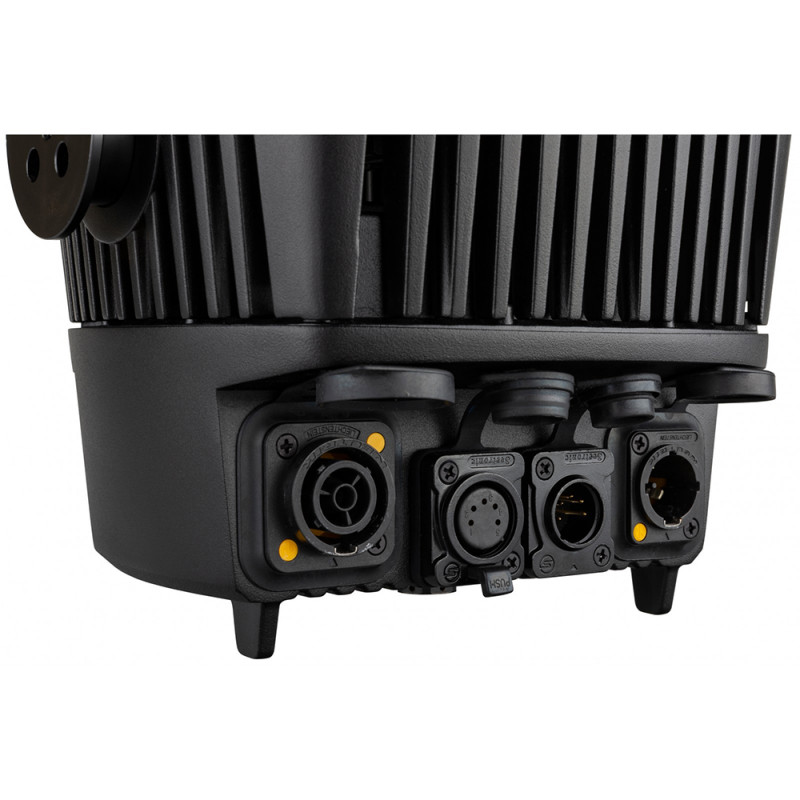

| Connections: input |
5-pin XLR, TRUE1 powerCON |
| Connections: output |
5-pin XLR, TRUE1 powerCON |
