Proiettore impermeabile con 6 LED RGB da 3W, dotato di staffa di fissaggio. Collegamento tramite presa RJ45 alle unità di alimentazione della serie PILOT. L'ultimo dispositivo della catena non necessita di alcun connettore di collegamento.

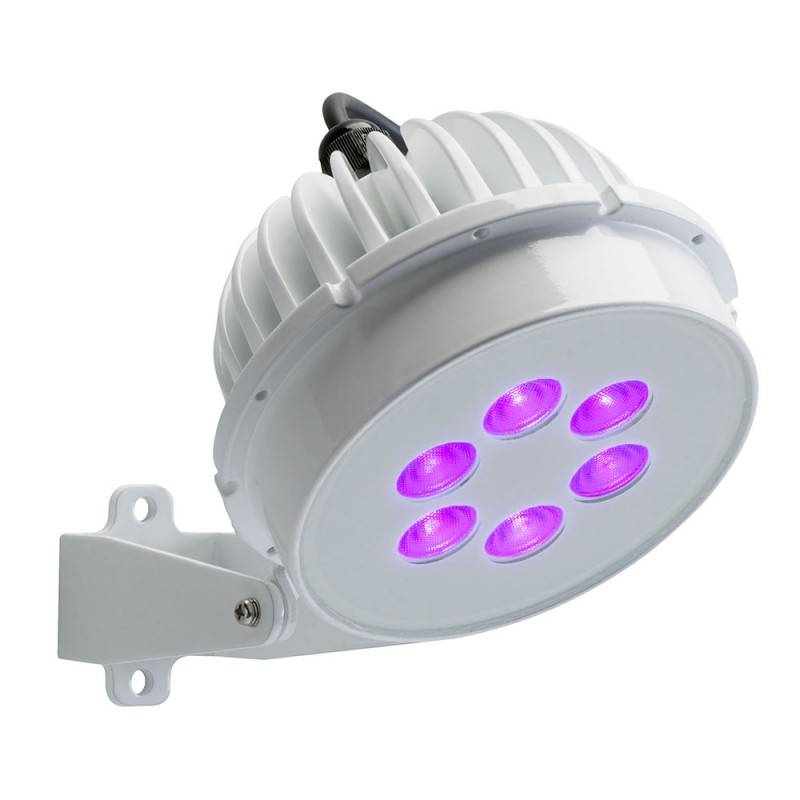

Waterproof projector with 6 x 3W RGB LEDs, supplied with fixation bracket. Connection via RJ45 socket to the PILOT series power supply units. No end link connector required for the last device or your chain.
Projecteur étanche à 6 LEDs 3 W tricolores livré avec lyre d?accroche. Connexion par fiche RJ45 sur les alimentations de la série PILOT. Aucun connecteur de terminaison n'est nécessaire sur le dernier de la chaîne.
Dati tecnici
Optical
- 6 x 3W trichromatic LEDs
- Lenses have been equipped with a filter for a better diffusion
- Almost infinite variety of shades without reflects from phantom colours
- No infrared or UV emission
- LEDs lifespan: 25 000 hours at full power
- Flux (Lm): 590 +/- 2.5%
- Efficiency (Lm/W): 33
- Light output: 266 Lux at 3m in white
Housing
- Extruded aluminium body
- Convection-cooled
- Waterproof cable gland
- IP tightness: 65 (fully protected against dust and water splashes)
Technical specifications
- Power supply: 12-48V, DC 350 mA (max) /48V
- Power consumption: 18 W
- Compatible power supply and control units: PILOT60/120/240
- Cable: 1 m Cat.5e with 8-pin RJ45 connector
- Operating temperature: -10°C ~ 40°C

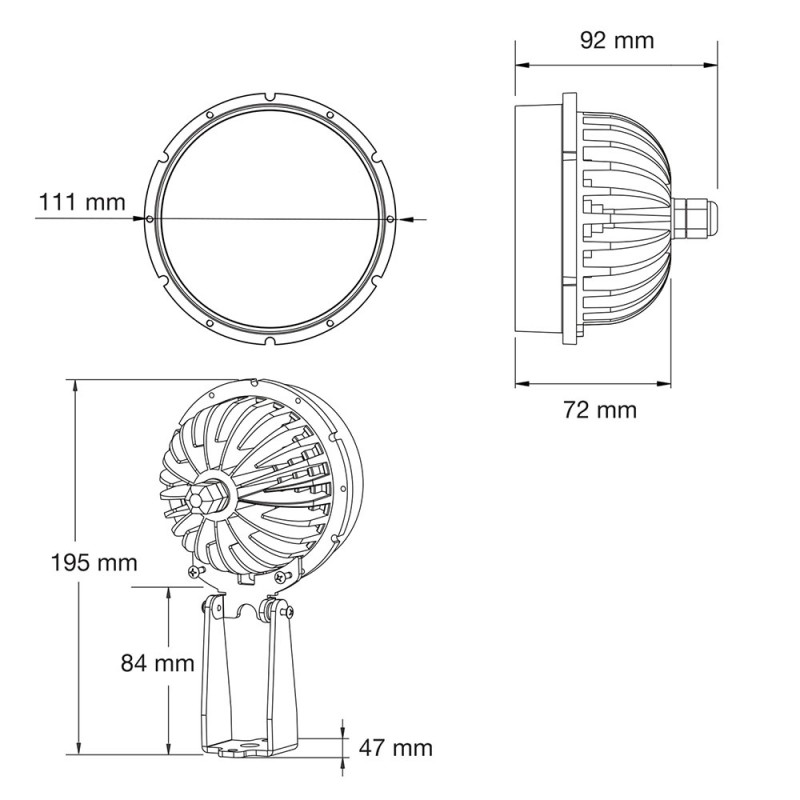

- Dimensions: Diameter 111 mm
- Length 72 mm (without cable gland) / 92 mmm (with cable gland)
- Weight: 0.775 Kg
