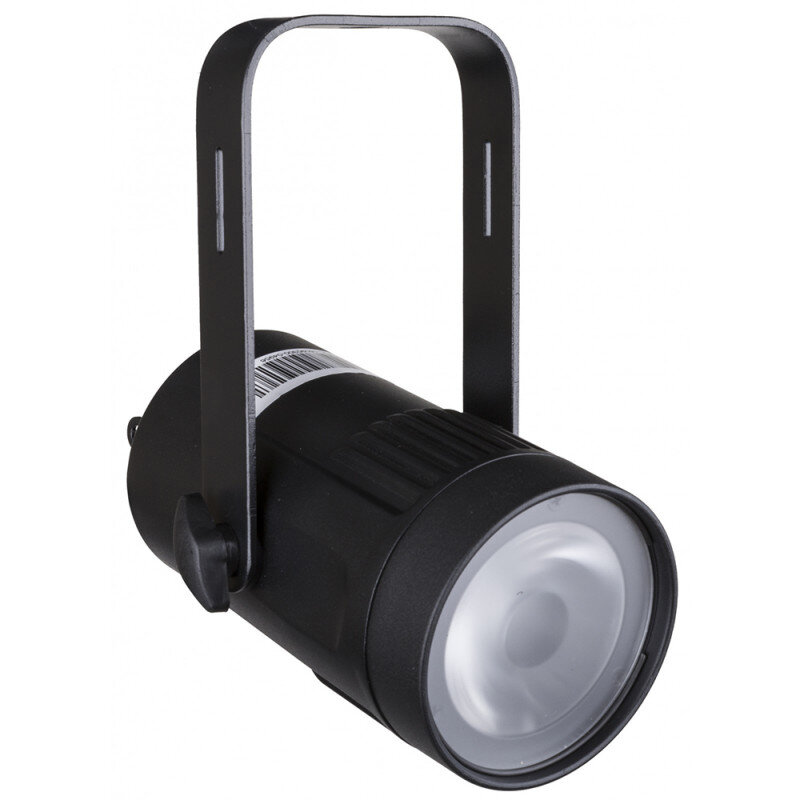

Pinspot LED compatto da 15 W, perfetto sostituto dei PAR36 alogeni. Emissione luminosa RGBW a fascio stretto.
Sorgente luminosa a LED RGB W da 15 W con regolazione del bilanciamento del bianco. Nessuna ventola di raffreddamento e frequenza di refresh LED 1200 Hz senza flickering. Comportamento della lampada selezionabile: alogena (lento) o LED (veloce). 4 curve dimmer: lineare, quadrata, quadrata inversa, curva a S.
Il controllo avviene secondo 6 diverse modalità DMX da 4 a 7 canali. Funzione RDM per configurazione remota. In caso di guasto DMX, è possibile scegliere tra modalità blackout e freeze. Impostazioni di fabbrica predefinite + impostazioni utente.
BEAMSPOT1-DMX FC è dotato di una lente da 4° molto stretta. Filtri 10° e 45° inclusi. DMX IN/OUT a 3 poli e Neutrik powerCON IN/OUT per un facile collegamento in cascata. Display OLED per la navigazione nel menu di configurazione.
Nato per illuminare sfere a specchio e piccoli oggetti, è perfetto per discoteche, stand fieristici, showroom, hotel, ristoranti, negozi, palchi di musica dal vivo, studi televisivi.

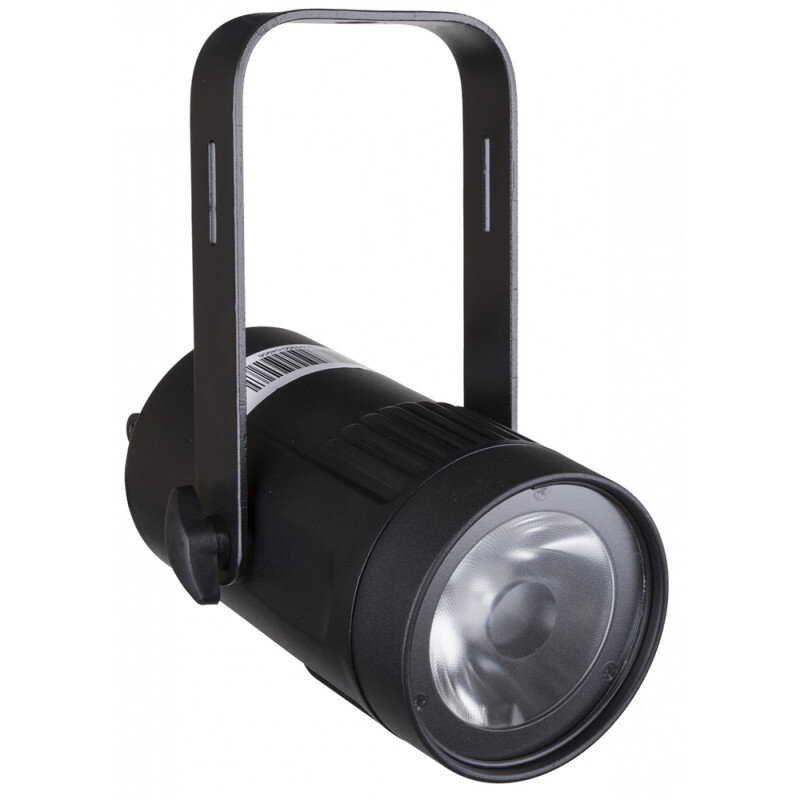

Compact 15 W LED pinspot, perfect replacement for halogen PAR36s. Narrow beam RGBW light output.
15 W RGB W LED light source with adjustable white balance. No cooling fan and 1200 Hz LED refresh rate without flickering. Selectable lamp behavior: halogen (slow) or LED (fast). 4 dimming curves: linear, square, inverse square, S-curve.
Control is performed according to 6 different DMX modes from 4 to 7 channels. RDM function for remote configuration. In case of DMX failure, you can choose between blackout and freeze mode. Factory default settings + user settings.

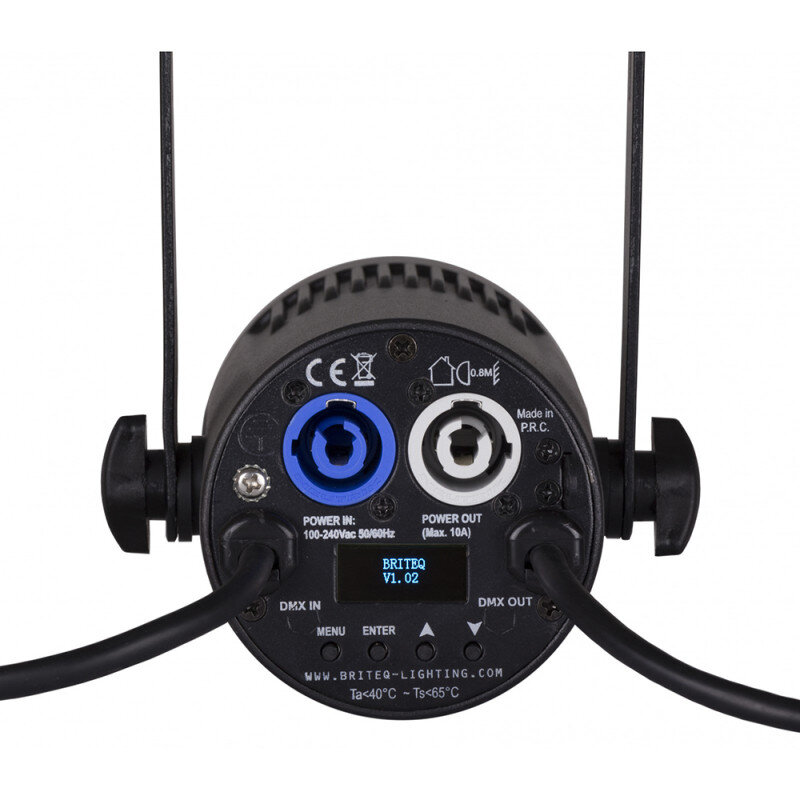

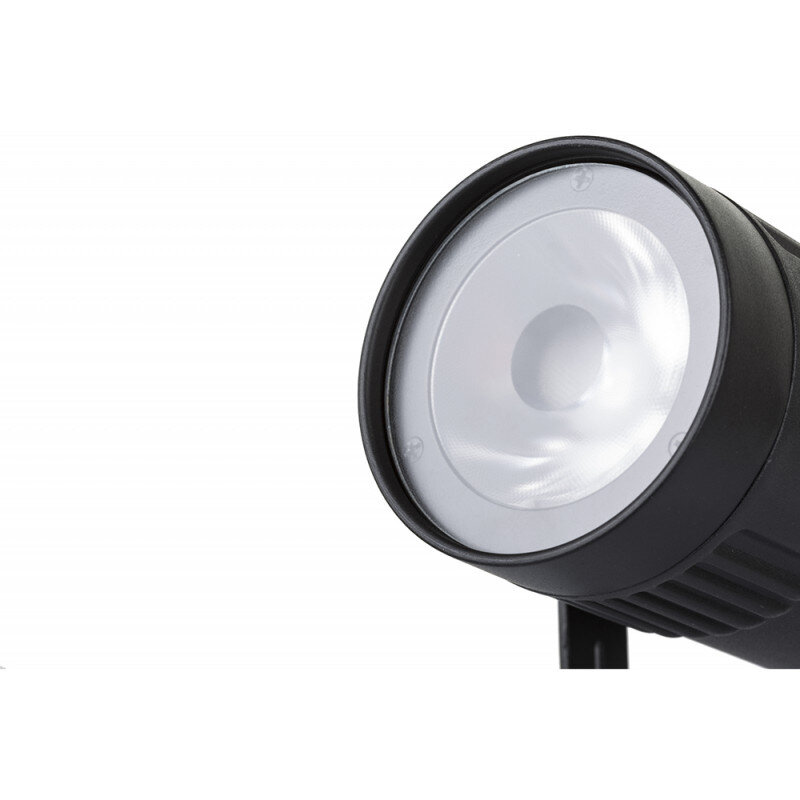

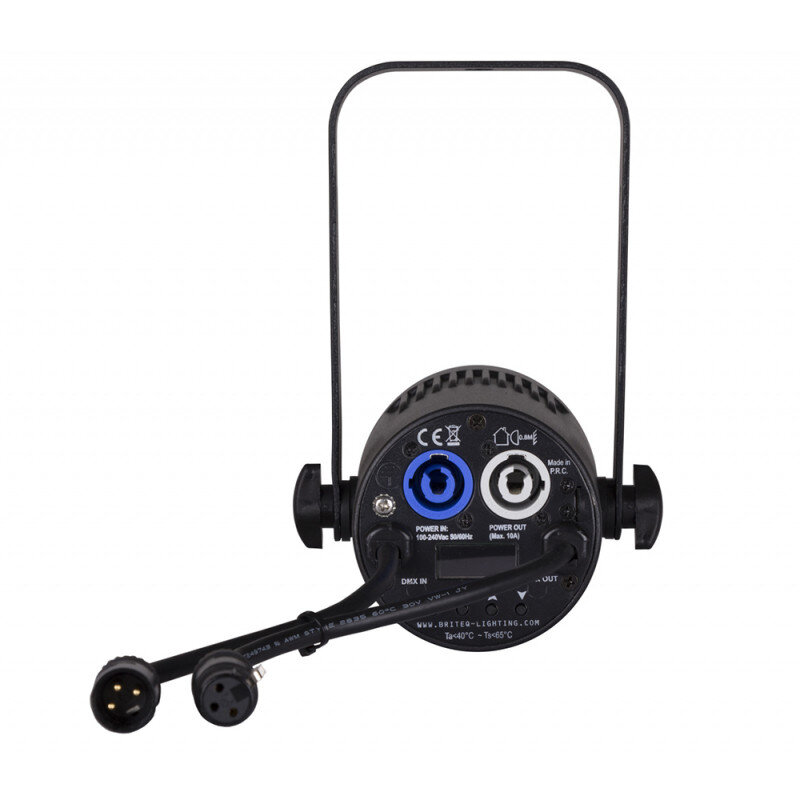

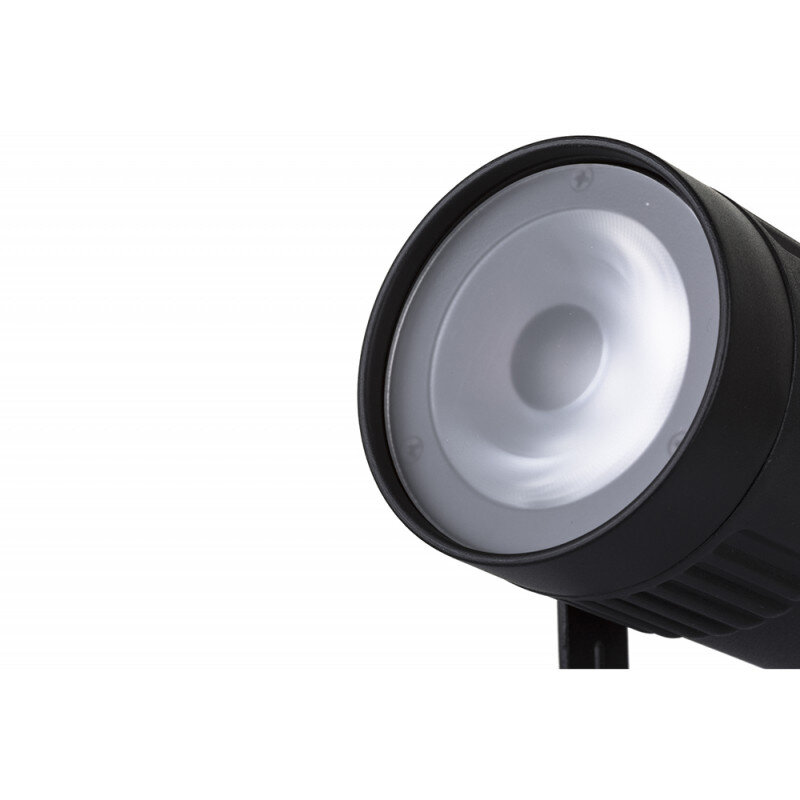

BEAMSPOT1-DMX FC is equipped with a very narrow 4° lens. 10° and 45° filters included. 3-pole DMX IN/OUT and Neutrik powerCON IN/OUT for easy cascading. OLED display for navigation in the configuration menu.
Designed to illuminate mirror spheres and small objects, it is perfect for discos, exhibition stands, showrooms, hotels, restaurants, shops, live music stages, television studios.
LED Pinspot compacte de 15 W, remplaçant parfaitement les PAR36 halogènes.
Source lumineuse LED RGB W de 15 W avec réglage de la balance des blancs. Pas de ventilateur de refroidissement et taux de rafraîchissement des LED de 1200 Hz sans scintillement. Choix du comportement de la lampe : halogène (lent) ou LED (rapide). 4 courbes de gradation : linéaire, carrée, carrée inversée, courbe en S.
Contrôle selon 6 modes DMX différents de 4 à 7 canaux. Fonction RDM pour la configuration à distance. En cas de panne DMX, vous pouvez choisir entre le mode blackout et le mode freeze. Réglages d'usine par défaut + réglages de l'utilisateur.
BEAMSPOT1-DMX FC est équipé d'une lentille très étroite de 4°. Filtres 10° et 45° inclus. Entrée/sortie DMX 3 broches et entrée/sortie Neutrik powerCON pour une mise en cascade aisée. Ecran OLED pour la navigation dans le menu de configuration.
Conçu pour l'éclairage de sphères miroirs et de petits objets, il est parfait pour les clubs, les stands d'exposition, les showrooms, les hôtels, les restaurants, les magasins, les scènes de musique live, les studios de télévision.
Technical characteristics
| Power input | 100 - 240 VAC 50/60 Hz |
| Power consumption | 15 W |
| Color | black |
| Fixation | M10 |
| IP rating | indoor |
| Manual | yes |
| Master/Slave | yes |
| Stand-alone | automatic, sound, fixed |

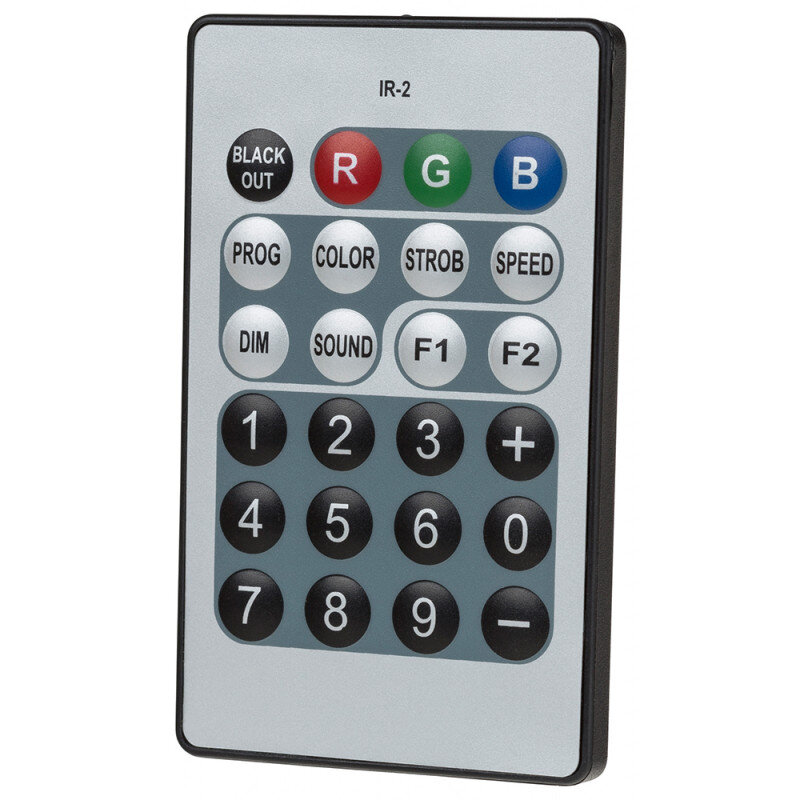

| Optional remote | IR-2 |
| Upgradable software | yes |
| Max. DMX channels | 7 |

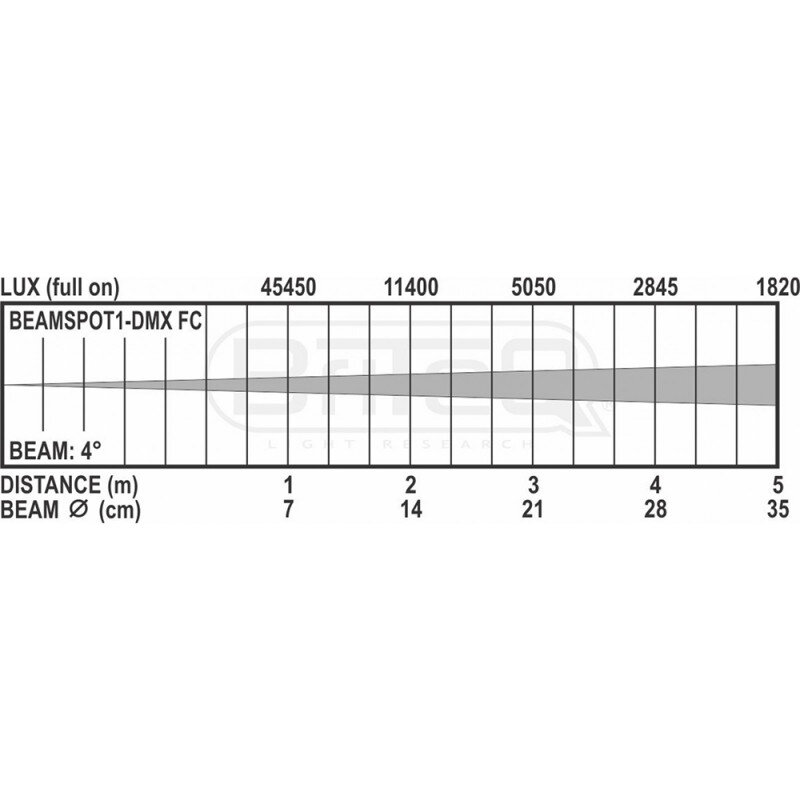

| Lux | 1820 lux at 5 m (beam angle 4°) |
| Lumen | 275 |
| Lamp | LED |
| Colors | red, green, blue, white, RGB, RGBW |
| Mix colors | yes |
| Functions | manual zoom |
| Min. beam angle | 4° |
| Max. beam angle | 45° |
| Min. refresh rate | 3.6 kHz |
| Max. refresh rate | 3.6 kHz |
| Input | 3-pin XLR, powerCON, RDM |
| Output | 3-pin XLR, powerCON |

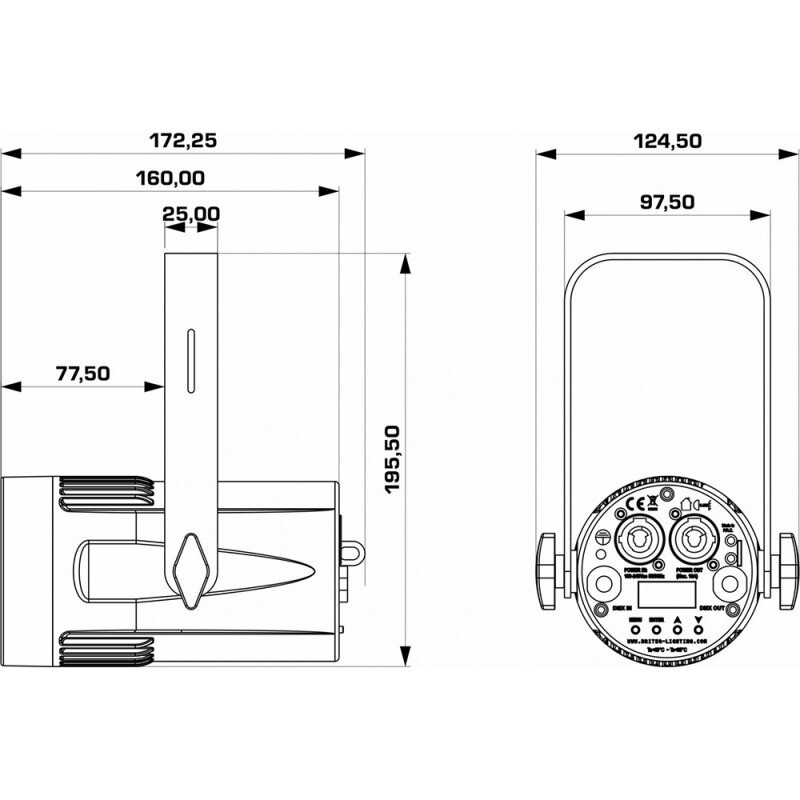

| Dimensions | 17.2 x 19,6 x 12,5 cm |
| Weight | 1.23 kg |
