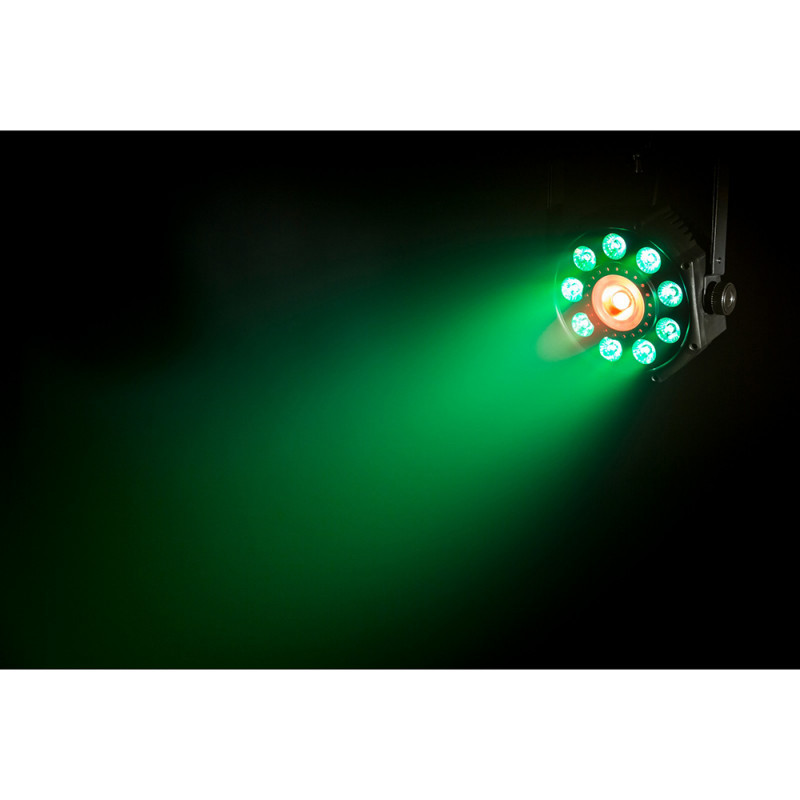

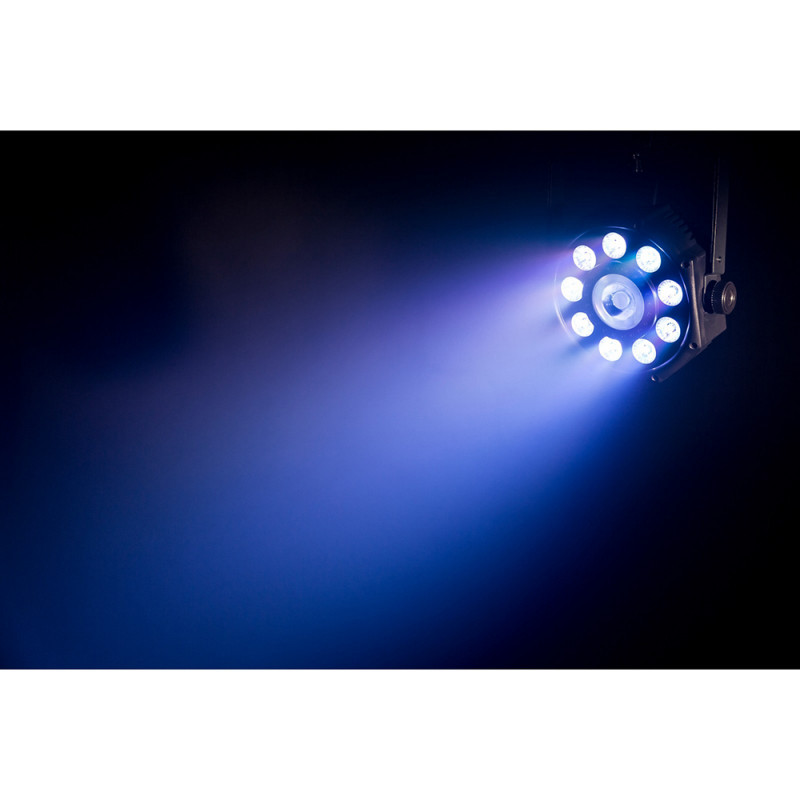

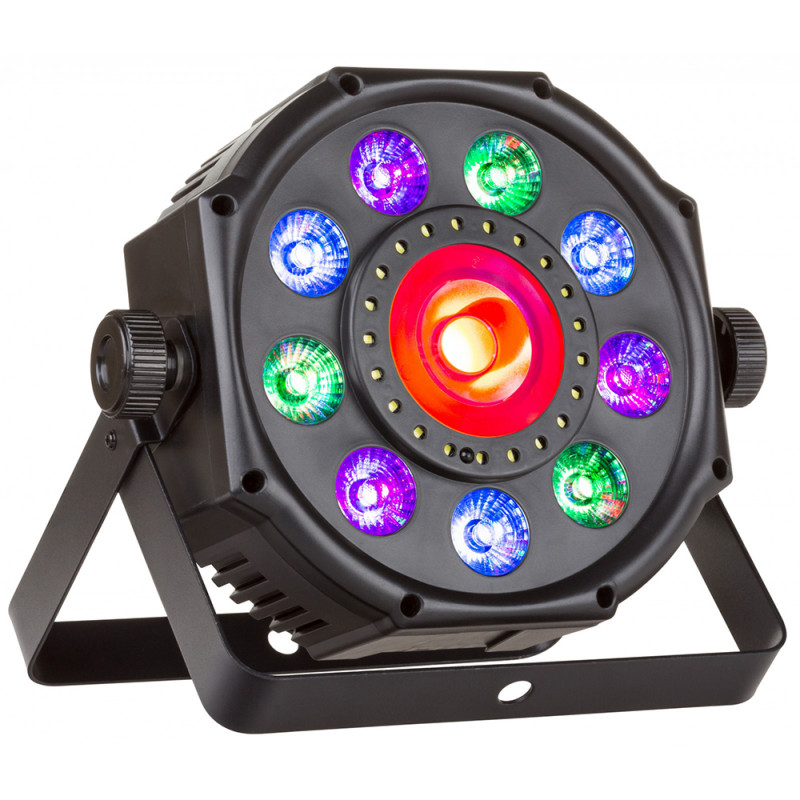

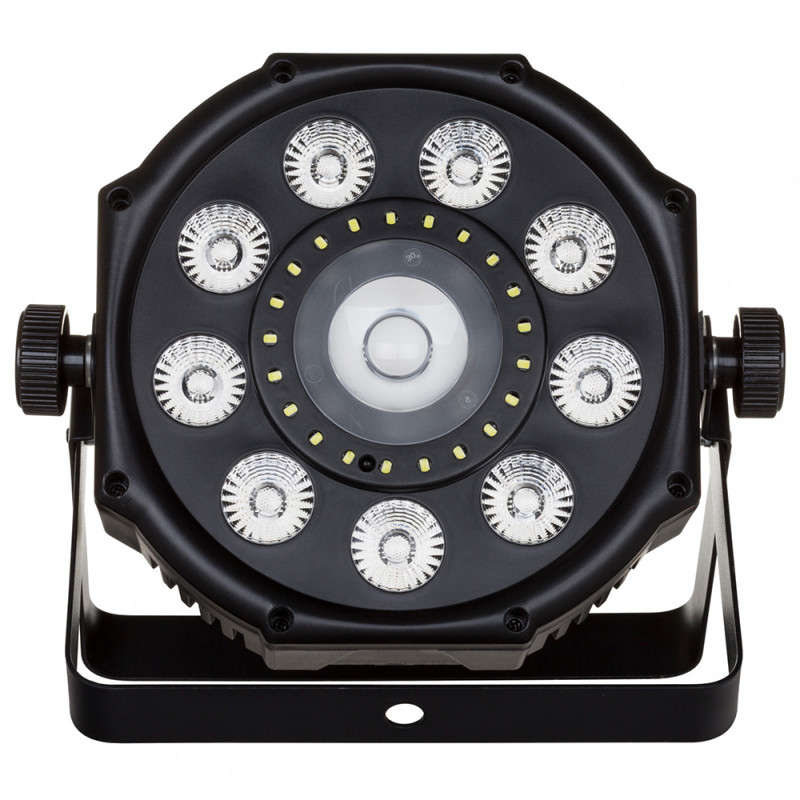

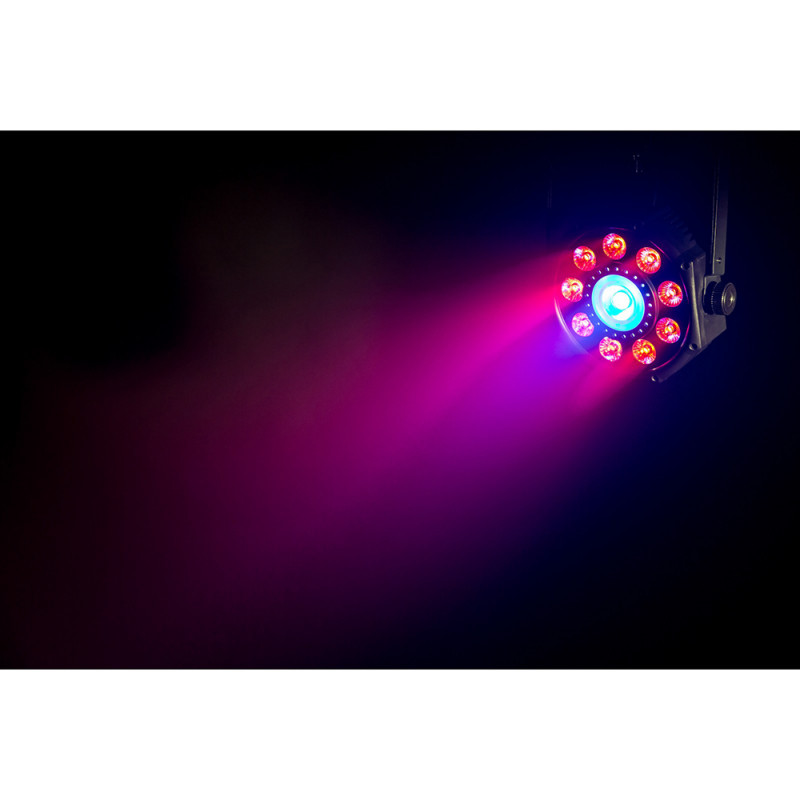

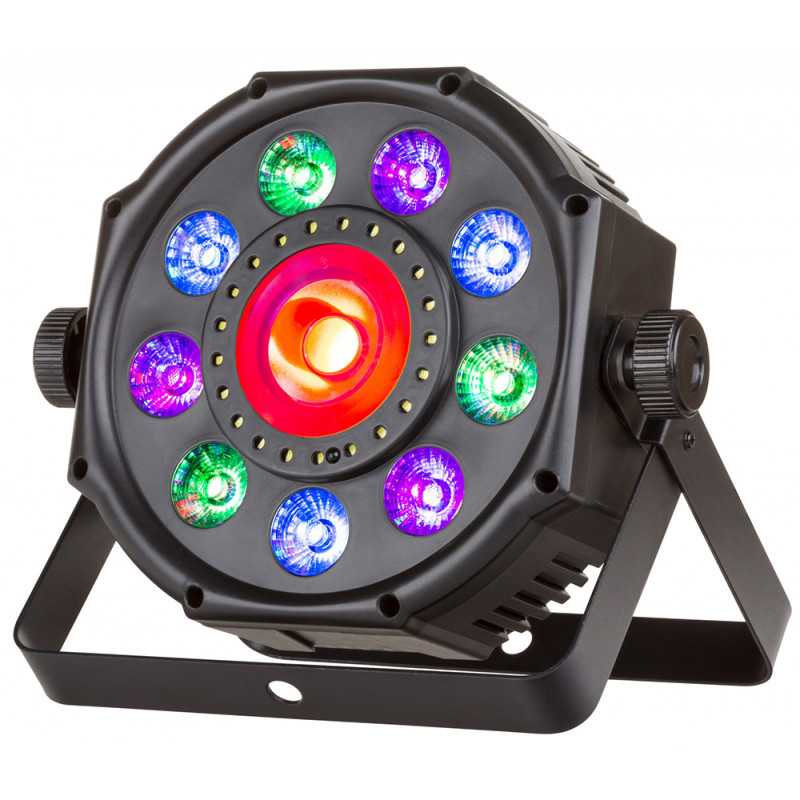

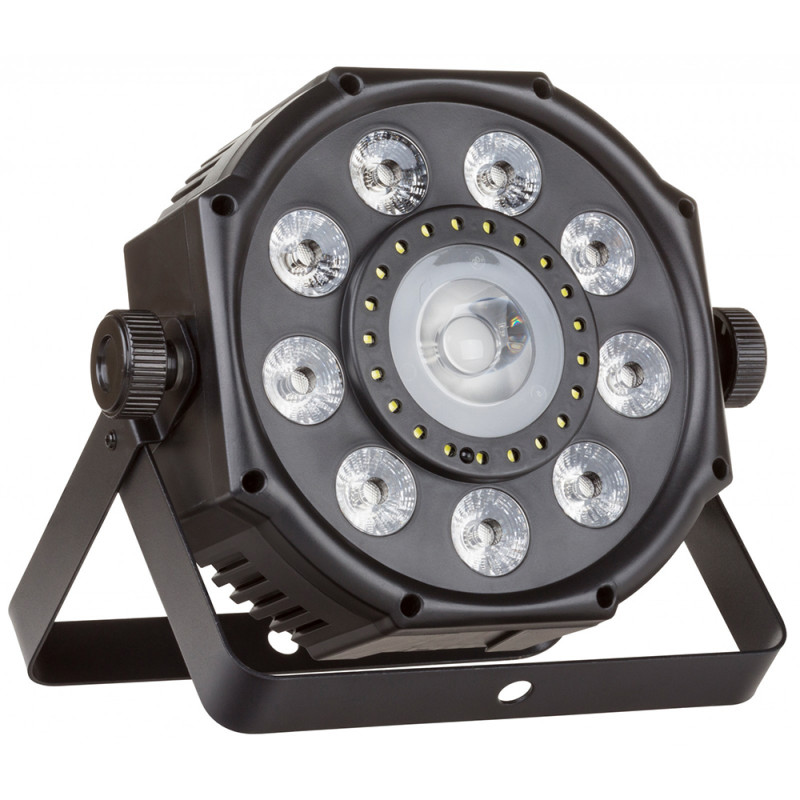

3 effetti luce in una sola macchina!

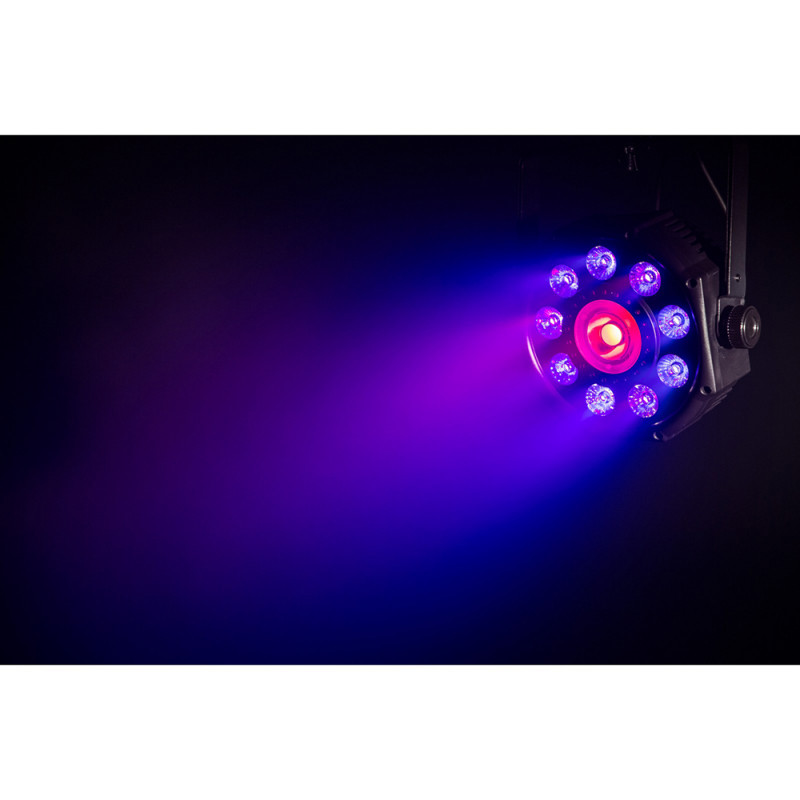

- raggi colorati e UV (UltraVioletti) generati da 9 LED da 4W, RGB-UV
- 1 COB LED centrale da 30 W RGB

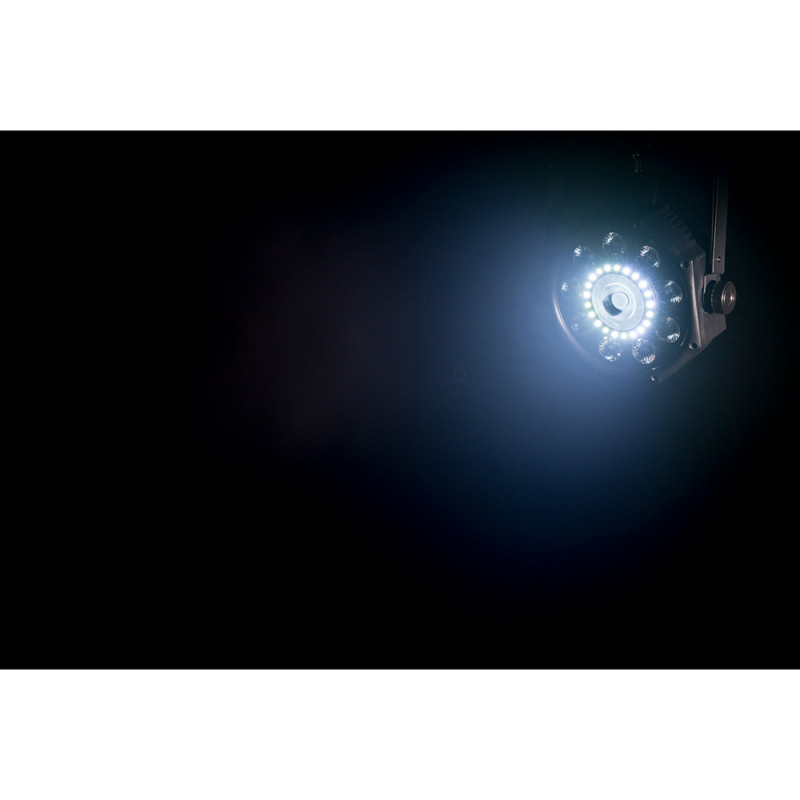

- effetto strobo realizzato da 21 LED bianchi da 0,5W.
Disponibile connessione USB per WTR DMX DONGLE (opzionale), accessorio per collegamenti DMX wireless.
RAVE SPOT può essere usato in diverse modalità:
- Standalone: light show a tempo di musica pilotati da microfono interno
- Master/slave: sincronizzazione perfetta di numerose macchine, per show ricchi e coinvolgenti
- DMX control: 1, 2, 4, 6, 9 o 22 canali.

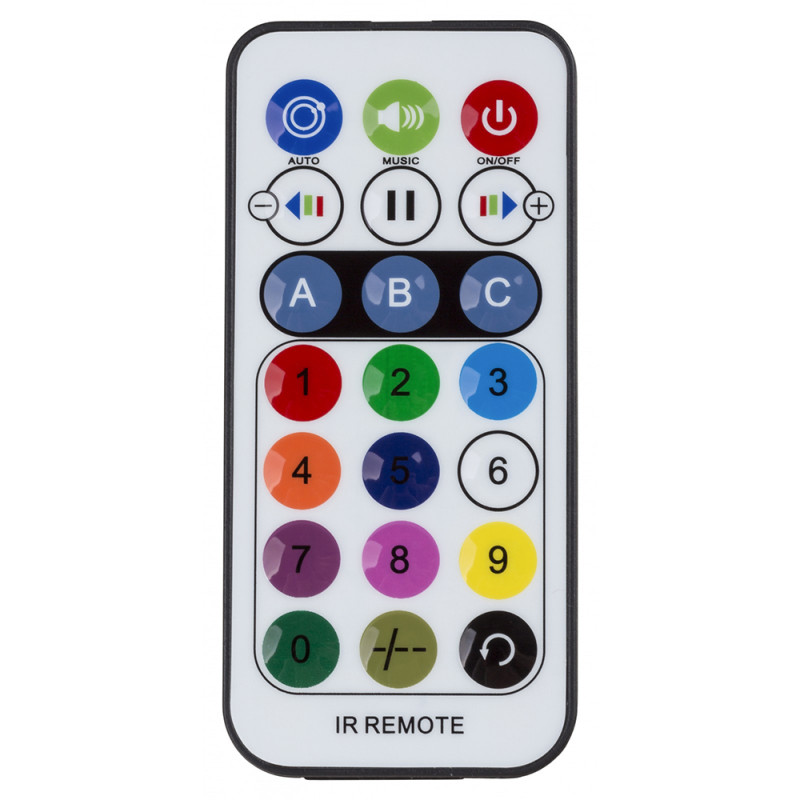

Controllo remoto IR incluso.
Diplay LED a 4 cifre per navigazione nel menù.
Connessioni di alimentazione IEC IN/OUT.
Single unit, 3 lighting effect!
- 9x4 W LEDs RGB-UV for colored beams + UV/blacklight effect
- 1 central COB LED 30 W RGB
- Led Strobe: 21x 0.5 W White Leds.
USB connection for Wireless DMX DONGLE
Can be used in different modes:
- DMX-control: 1, 2, 4, 6, 9 or 22 channels
- Standalone: automatic or sound activated (by internal mic) shows.
- Master/slave function for synchronize several linked units, dense and surprising shows!
IR remote controller included.

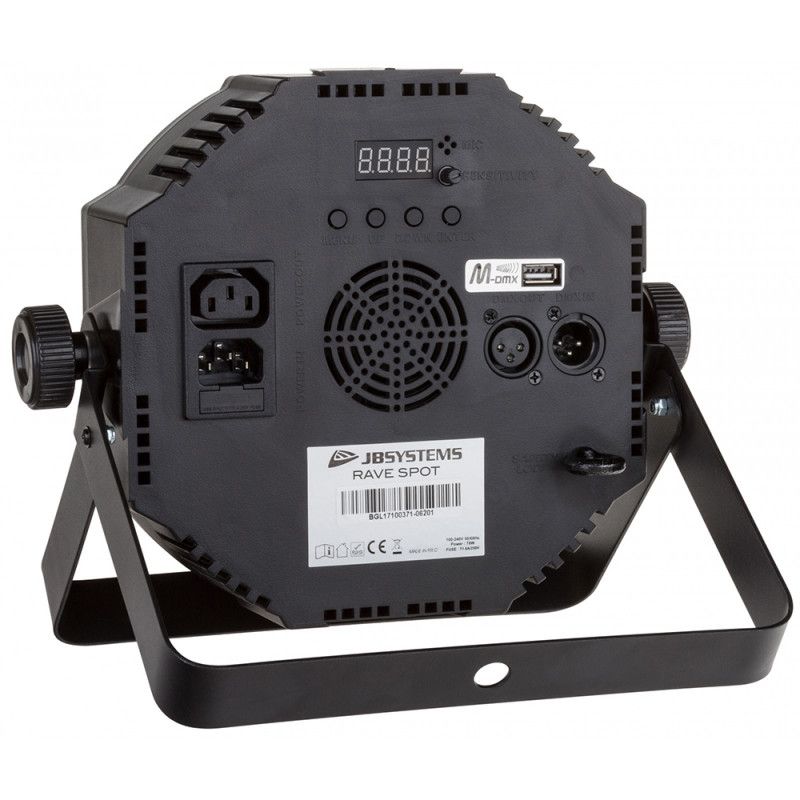

4-digit LED display for easy menu navigation and parameters setup.
IEC mains input/output for easy linking (optional: combi cables).
3 effets lumineux dans une seule machine. - Faisceaux colorés et UV générés par 9 LED de 4W, RGB-UV - 1 LED COB centrale de 30 W RGB - effet stroboscopique créé par 21 LED blanches de 0,5W. RAVE SPOT peut être utilisé selon différents modes : - Autonome : spectacles lumineux au rythme de la musique - Maître/esclave : synchronisation parfaite de plusieurs machines, pour des spectacles riches et entraînants - Contrôle DMX : 1, 2, 4, 6, 9 ou 22 canaux. Pour le DMX sans fil il suffit de brancher un DONGLE WTR-DMX en option (4645). Télécommande IR incluse. Affichage LED à 4 chiffres pour faciliter la navigation dans les menus et la configuration des paramètres. Entrée/sortie secteur IEC pour une liaison facile
Dati tecnici
General: Dimensions (cm) |
28 x 27.5 x 7.6 |
General: Weight ( kg) |
1.81 |
General: Power input |
AC 100 - 240V, 50/60 Hz |
General: Energy Label |
No |
General: Power consumption W |
78 |
General: Color |
black |
General: Display |
LED |
General: IP rating |
indoor |
Control: manual |
Yes |
Control: Master/Slave |
Yes |
Control: SMART-DMX |
No |
Control: Standalone |
automatic, sound |
Control: Type included remote |
IR Remote Control |
Control: programmable |
No |
Control: upgradable software |
No |
Control: maximum DMX channels |
22 |
Light: lamp socket |
No |
Light: lamp |
LED |
Light: colors |
other |
Light: mix colors |
No |
Light: min. refresh rate ( kHz) |
No |
Light: max. refresh rate ( kHz) |
No |
Connections: input |
3-pin XLR, IEC, usb |
Connections: output |
3-pin XLR, IEC |
