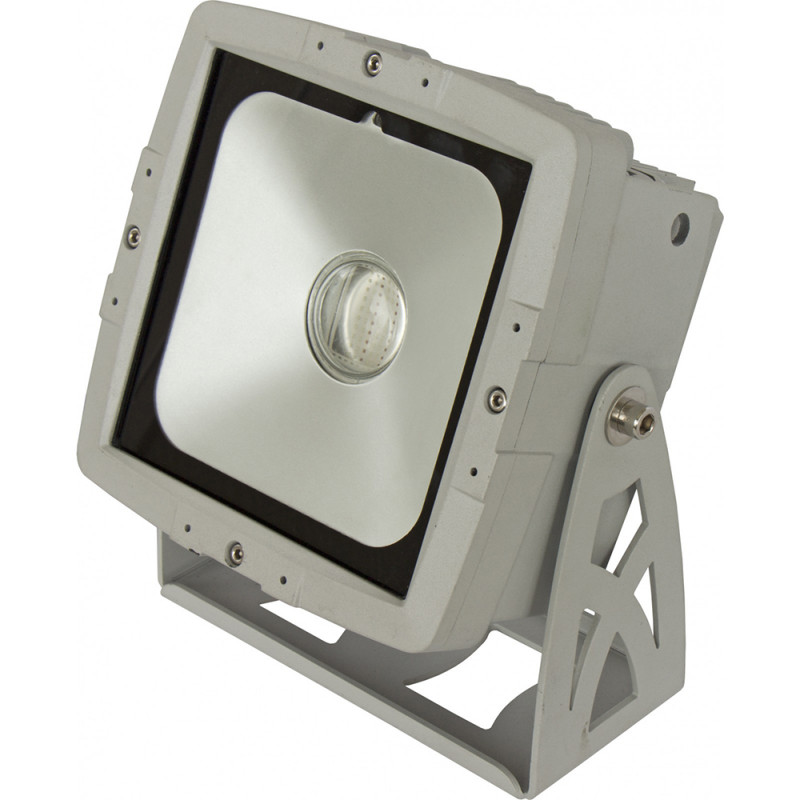

Proiettore LED RGB per installazioni luminose in interni ed esterni. PROIETTORE: LED RGB IP65 per utilizzo come wall washer in applicazioni di medie e piccole dimensioni per installazioni architetturali, illuminazione di facciate, giardini, eventi all'aperto, palchi di concerti, teatri, discoteche, stand fieristici. SORGENTE LUCE: Sorgente puntiforme COB LED RGB da 60 W con eccellente miscelazione e regolazione dei colori. Comportamento della lampada selezionabile: alogena (lento) o LED (veloce). 4 curve dimmer: lineare, quadrata, quadrata inversa, curva a S. Alta efficienza e basso consumo energetico di soli 66 W a piena potenza. CONTROLLO: controllo DMX completo con 3 canali, 4 canali e 6 canali. Controllabile tramite LEDCON-02 Mk2. Modalità Standalone e Master/Slave, compatibili con LDP-COBWASH 150TC. Programmi integrati per il cambio colore continuo. Telecomando IR incluso. In caso di guasto DMX è possibile scegliere tra modalità blackout e freeze. FUNZIONI: Angolo di apertura del fascio luminoso: 120°. Funzionamento completamente silenzioso con sistema di raffreddamento a convezione naturale. Alimentazione IN/OUT e DMX IN/OUT impermeabili per un collegamento in cascata di più unità. Cavi adattatori a XLR inclusi. Display LCD retroilluminato e tasti touch impermeabili per la configurazione del menu di setup. ACCESSORI: Staffa multifunzionale progettata per il montaggio a terra e su americana. Alette paraluce opzionali.

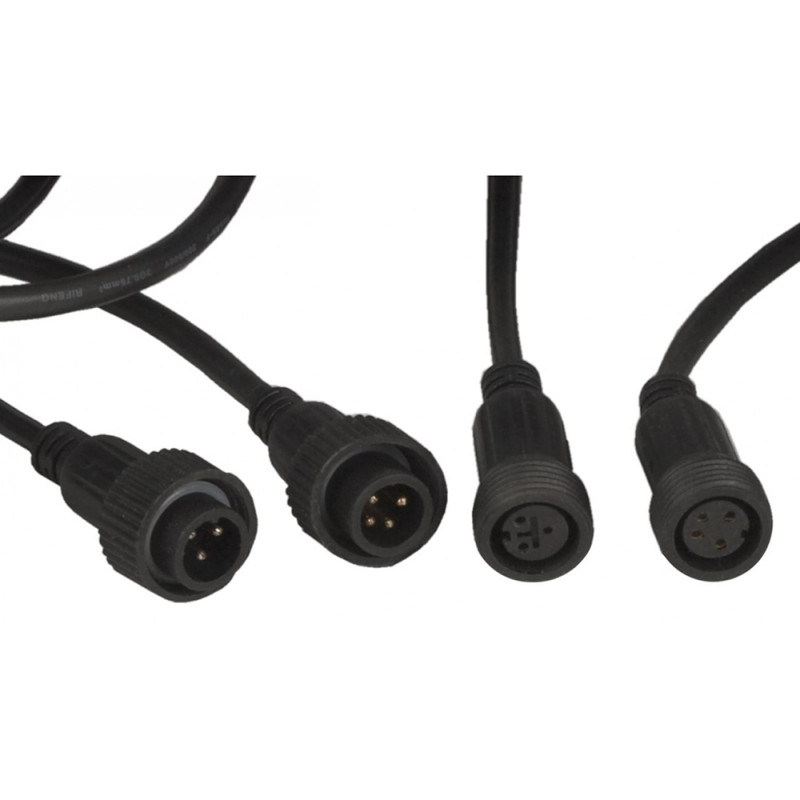

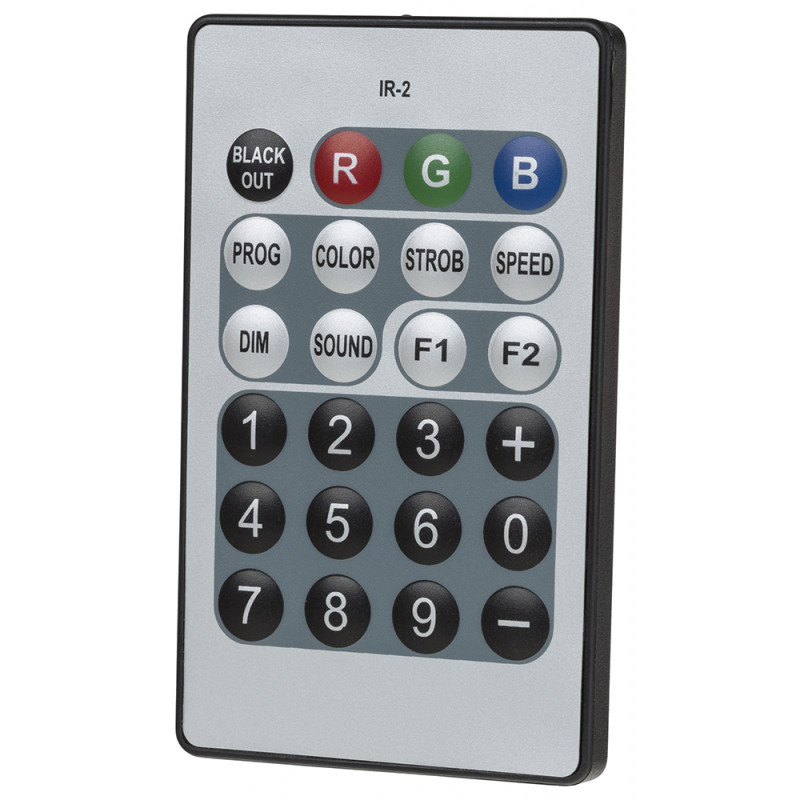

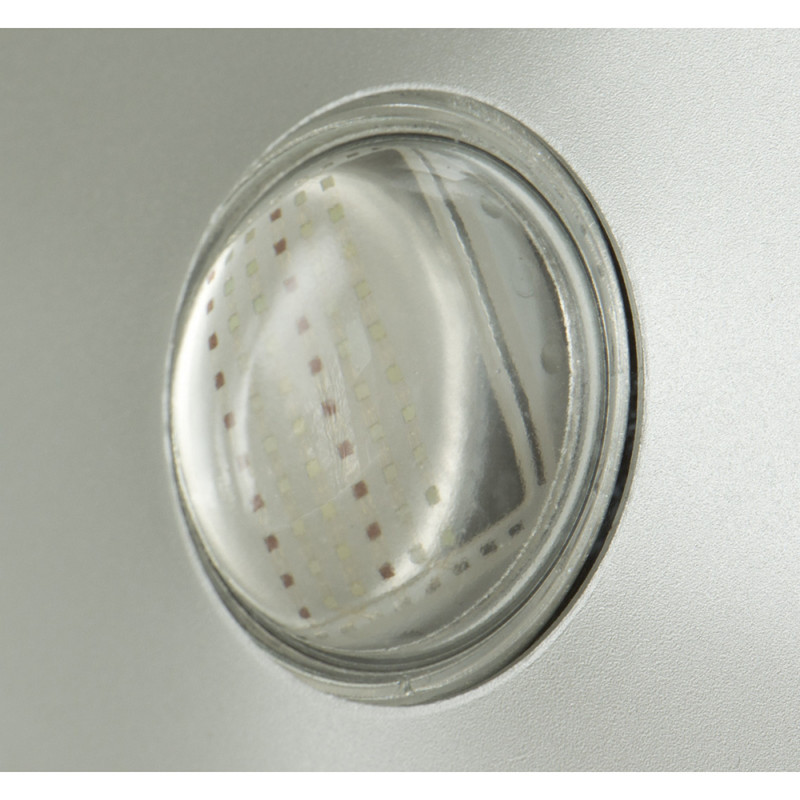

RGB LED projector for bright indoor and outdoor installation. FIXTURE TYPE: IP65 LED RGB projector for wall washer use in medium and small applications like architectural installations, facade lighting, gardens, outdoor events, concert stages, theaters, discotheques, exhibition booths. LIGHT SOURCE: 60 W RGB LED COB point source with excellent color mixing and dimming. Selectable lamp behavior: halogen (slow) or LED (fast). 4 dimmer curves: linear, square, inverse square, S-curve. High efficiency and low power consumption of just 66 W at full power. CONTROL: Full DMX control with 3ch, 4 CH and 6ch. Controllable through LEDCON-02 Mk2. Standalone & Master/Slave modes, compatible with the LDP-COBWASH 150TC. Built-in programs for continuous color changing. IR-remote controller included. In case of DMX failure you can choose between blackout and freeze mode. FEATURES: Beam angle: 120°. Completely silent operation with natural convection cooling system. Waterproof power IN/OUT and DMX IN/OUT for easy daisy chaining of several units. Adapter cables to XLR included. Backlit LCD display and waterproof touch keys for setup menu configuration. ACCESSORIES: Multifunctional bracket designed for fixed floor and truss mounting. Optonal barndoors available.
Puissant projecteur LED intérieur/extérieur IP65, au large faisceau, idéal pour de l’éclairage architecturale, éclairage de façade, de jardins, des événements extérieurs, des concerts, théâtres, salons d’expositions, sociétés de location.Il est équipé d'une LED COB RGB de 60 W avec de parfaites fonctions de Dimmer et mélange de couleurs. 4 courbes de gradation : linéaire, carré, carré inversé, courbe en S. Grande luminosité et faible consommation, jusqu’à 66 W à pleine puissance ( en blanc, Dimmer à 100%). CONTRÔLE : 3 modes DMX utilisant 3, 4 ou 6 canaux pour un contrôle total. Contrôle possible avec le contrôleur LEDCON-02 Mk2. Mode autonome et maître/esclave compatible avec le LDP-COBWASH 60TC. Choix d’un mode black-out ou freeze en cas de défaillance du DMX. CARACTERISTIQUES : angle du faisceau 120°. Totalement silencieux avec un système de refroidissement par convection naturelle. Etanchéité des connecteurs d’alimentation et connecteurs DMX entrées/sorties pour un câblage en série simplifié. Câbles adaptateurs vers XLR fournis. Afficheur à cristaux liquides alphanumérique rétroéclairé et touches tactiles étanches pour sélectionner les différentes options dans le menu de configuration. ACCESSOIRES : Support résistant multi-fonctions, conçu pour les installations au sol et un montage sur structure type « truss ». Volets en option.
| General: Dimensions (cm) | 22.3 x 20.2 x 12.2 cm |
|---|---|
| General: Weight ( kg) | 3.8 |
| General: Power input | AC 100 - 240V, 50/60 Hz |
| General: Energy Label | No |
| General: Power consumption W | 66 |
| General: Color | white |
| General: Display | LCD |
| General: IP rating | indoor, outdoor |
| Control: Modes | N/A |
| Control: manual | No |
| Control: Master/Slave | Yes |
| Control: SMART-DMX | No |
| Control: Standalone | automatic |
| Control: Type included remote | IR-remote |
| Control: programmable | No |
| Control: upgradable software | Yes |
| Control: maximum DMX channels | 6 |
| Light: lamp socket | No |
| Light: lamp | COB |
| Light: colors | Red, Green, Blue, Cold white, Warm white, other |
| Light: mix colors | No |
| Light: functions | N/A |
| Light: min. beam angle (°) | 120 |
| Light: max. beam angle (°) | 120 |
| Light: min. refresh rate ( kHz) | 3.6 |
| Light: max. refresh rate ( kHz) | 3.6 |
| Connections: input | 3-pin XLR |
| Connections: output | N/A |
