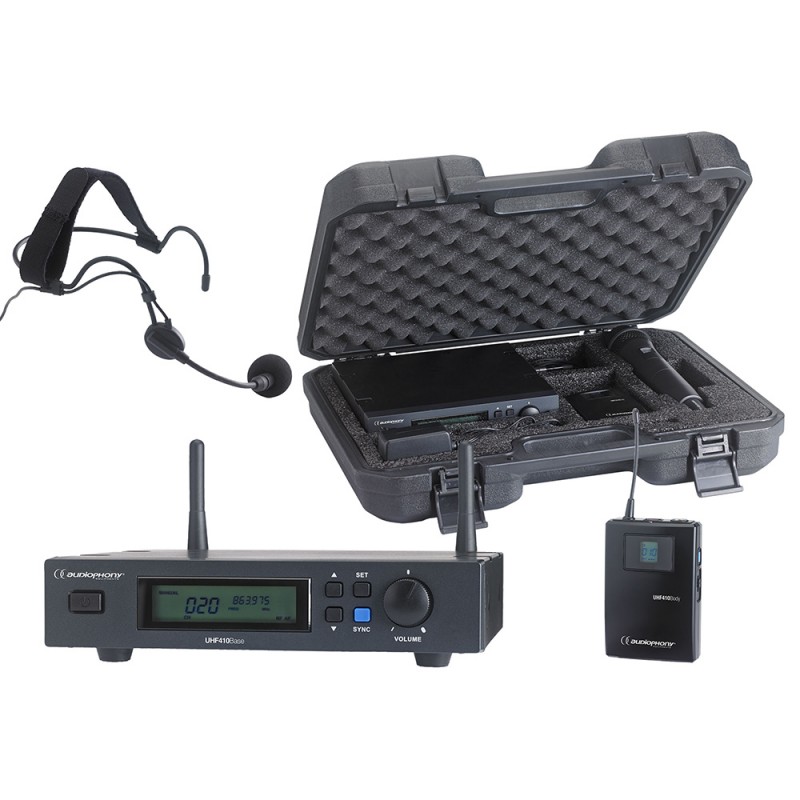

Set composto da un ricevitore True Diversity UHF 863~865 MHz e radiomicrofono headset, custodia per il trasporto inclusa.
Set including a UHF 863~865 MHz True Diversity receiver and headset microphone, transport case included.
Ensemble composé d'un récepteur UHF 823-832 et 863 -865 MHz True Diversity et d'un émetteur de poche sans fil avec un microphone serre-tête, fonction auto-scan, mallette de transport incluse.
Dati tecnici
UHF40-Base RECEIVER
- True Diversity receiver
- Frequency range: UHF 863 ~ 865 MHz
- 40 preset frequencies with Auto-scan function
- Channels presets: 4 groups, 4 compatible channels per group
- Channels selection: Tact Switch, Auto-Scan, SYNC
- LCD Display: frequencie, group, canal, RF & AF
- Audio output: XLR3-M and 6.35 mm TRS-M jack,
- Line or Mic level
- Oscillator: PLL Synthesiser
- Frequence stability: ± 0,005%
- Modulation: FM
- T.H.D.: <1% (@ 1 kHz)
- Audio frequency response: 80 Hz at 18 kHz
- Adjust theVolumeWith the front control knob
- Adjust the Squelch settingWith the rear control knob
- BNC removable antennas, many accessories available
- Power supply: 12 VDC (adapter supplied)
- Power consumption: 260mA ± 10mA
BODYPACK TRANSMITTER
- True Diversity transmitter
- Frequency ranges: UHF 863 ~ 865 MHz
- Max power: 10m W (max.)
- 40 channelsWith Auto-scan function
- LCD display: channel, battery level
- Mic input via mini XLR
- Gain level: -10/0/+10 dB
- Power supply: 2x AA type 1,5VV batteries (not supplied)
HEADSET MICROPHONE
- Micro type: Electret condenser
- Sensitivity: -47 ±4 dB
- Directivity: Cardioid
- Frequency response: 100 Hz - 10 kHz
- Max current: 10V
- Standard current: 1.5V
- Power consumption: 0.5 mA max.
- S/N ratio: More than 60 dB
- Supplied accessory:Windshield
