Mixer/amplificatore/lettore multimediale. Sistema combo All-in-one ultra compatto e super efficiente. Potenza 60W. Mixer a 3 canali: lettore USB e sintonizzatore integrati, 2 ingressi di linea e 1 ingresso per microfono. Musica d'attesa e funzioni di telepaging. Uscita priorità di sicurezza. Equalizzatore a 3 bande. Uscita 100 V o a bassa impedenza 4/8/16 ohm.
Mixer / amplifier / multimedia player. All-in-one, ultra compact and super efficient combo system. 60W. 3-mixer inputs: built-in USB player and Tuner, 2 line inputs and 1 microphone input. Music on hold and telepaging functions. Safety priority output. 3-band equalizer. 100V/16/8/4Ω outputs on terminal block.
Amplificateur, mixer et lecteur multimédia. Système combo tout-en-un ultra compact et super efficace. Puissance 60 W. Mixer à 3 entrées : lecteur MP3 avec port USB et tuner intégrés, 2 entrées ligne, 1 entrée microphone. Fonctions de musique d'attente et télé-paging. Sortie de sécurité prioritaire. Égaliseur à 3 bandes. Sortie 100 V ou basse impédance 16/8/4 ohms.
Dati tecnici

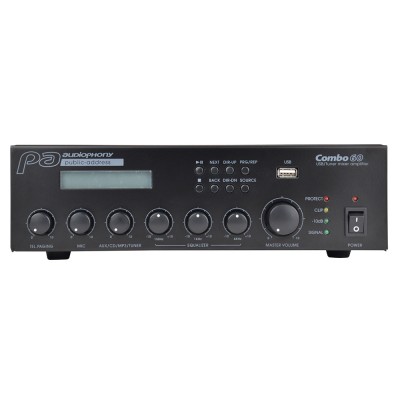

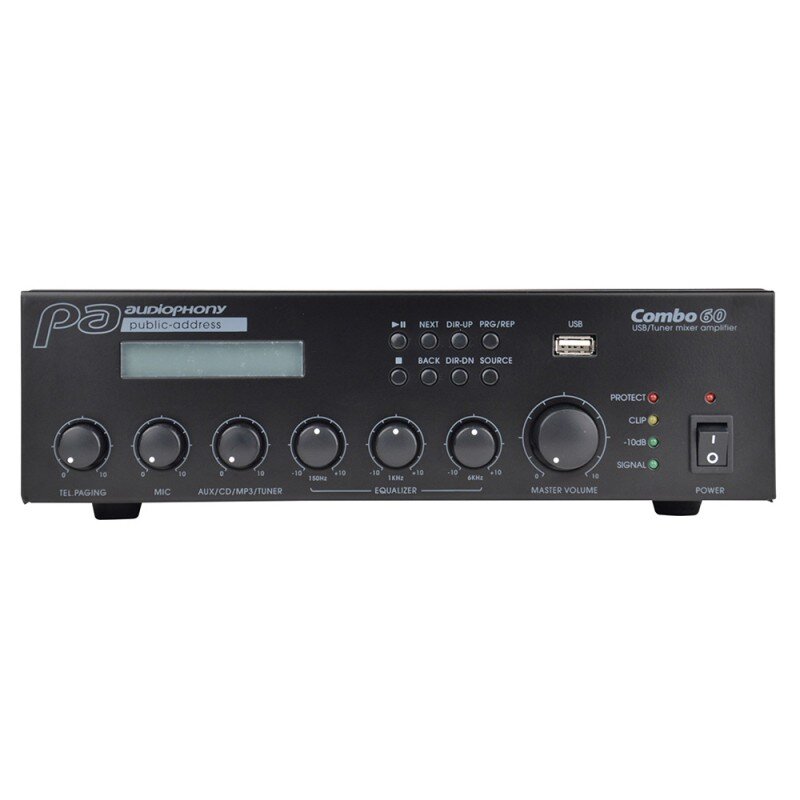

Front panel controllers :
- 2-channel micVolume control
- Aux1/MP3/TunerVolume control
- MasterVolume control
- Bass/medium/treble tone control
- MP3 reader and Tuner control
- USB port for Mass storage reader
Rear panel controllers :
- Music on-holdVolume settings
- Public annoucementsVolume settings
- Aux / CD/MP3/Tuner frontVolume controller

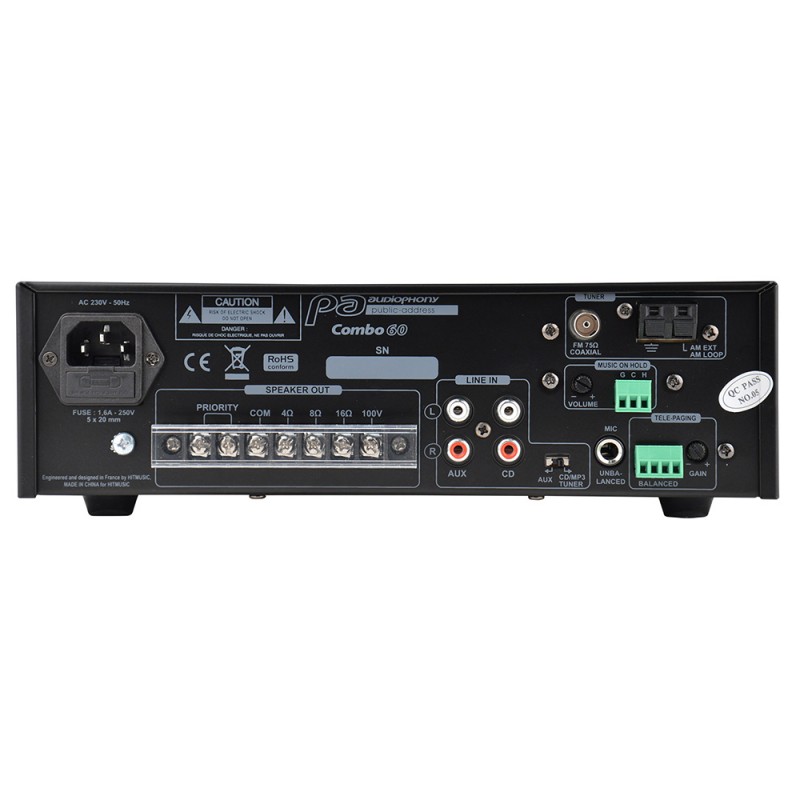

Rear panel connectors :
- AUX input via RCA connector
- CD input via RCA connector
- 3-pin telephone paging input connector
- Music on-hold 4-pin input connector
- Manual priority input terminal
- High-impedance loudspeaker outputs: 100 V
- Low-impedance loudspeaker outputs:4, 8, 16 Ω
Tuner :
- Save your favourite stations
- Autoscan
- Manual scan
- FM frequencies : 87.00 MHz - 108.00 MHz
- Frequency hopping: 10 kHz
- Antenna : Unbalanced 75 Ω
- AM frequencies : 522 kHz - 1611 kHz
- Frequency hopping : 9/10 kHz
- Antenna supplied
USB reader:
- Reading functions
- Searching functions
- Playlist programmations
- MP3 file readingVia a FAT32 formatted hard disk or USB key.
- CompatibleWith 500 Go devices
- 99 folders in 8 sub-directory levels
- Max sample rate: 320 kbps
Technical specifications :
- Power supply: 230 V - 50 Hz
- RMS Max power: 60 W RMS
- Output level / Impedance : - 100 V - 16-8 and 4Ω
- Dimensions L x W x H : 90 x 270 x 260 mm
- Weight : 5 kg
