H9751 - COMBO240

240 W multi-zone mixer / amplifier, 6 CH mixer, 5 simultaneous independent zone outputs

668.30€ Prezzo di listino (IVA esclusa)

Descrizione

Mixer / amplificatore multimediale all-in-one multizona da 240 W montabile a rack 19". Uscita 100 V o a bassa impedenza 4 ohm. Un dispositivo potente e versatile per le vostre installazioni.

Mixer a 6 canali: 4 ingressi microfonici XLR con opzione alimentazione Phantom P 48 V, 1 ingresso microfonico jack e 1 ingresso di linea RCA stereo. 5 uscite di zona indipendenti simultanee. Equalizzatore grafico di uscita a 7 bande. Funzioni di tele-paging e suoneria. Staffe di fissaggio rack removibili.

240 W multi-zone all-in-one multimedia mixer / amplifier suitable for 19" rack. 100 V or low impedance 4 ohm output. A powerful and versatile device for your installations.

6-channel mixer: 4 XLR microphone inputs with 48 V Phantom power option, 1 jack microphone input and 1 stereo RCA line input. 5 simultaneous independent zone outputs. 7-band graphic output equalizer. Tele-paging and ringtone functions. Removable rack fixing brackets.

Amplificateur/mixeur multimédia multizone tout-en-un de 240 W, montable en rack 19". Sortie 100 V ou basse impédance 4 ohms. Un appareil puissant et polyvalent pour vos installations.

Mixeur 6 canaux : 4 entrées micro XLR avec alimentation fantôme 48 V en option, 1 entrée micro jack et 1 entrée ligne stéréo RCA. 5 sorties de zone indépendantes simultanées. Égaliseur graphique de sortie à 7 bandes. Fonctions de télé-appel et de sonnerie. Supports de montage en rack amovibles.

Dati tecnici

Technical characteristics

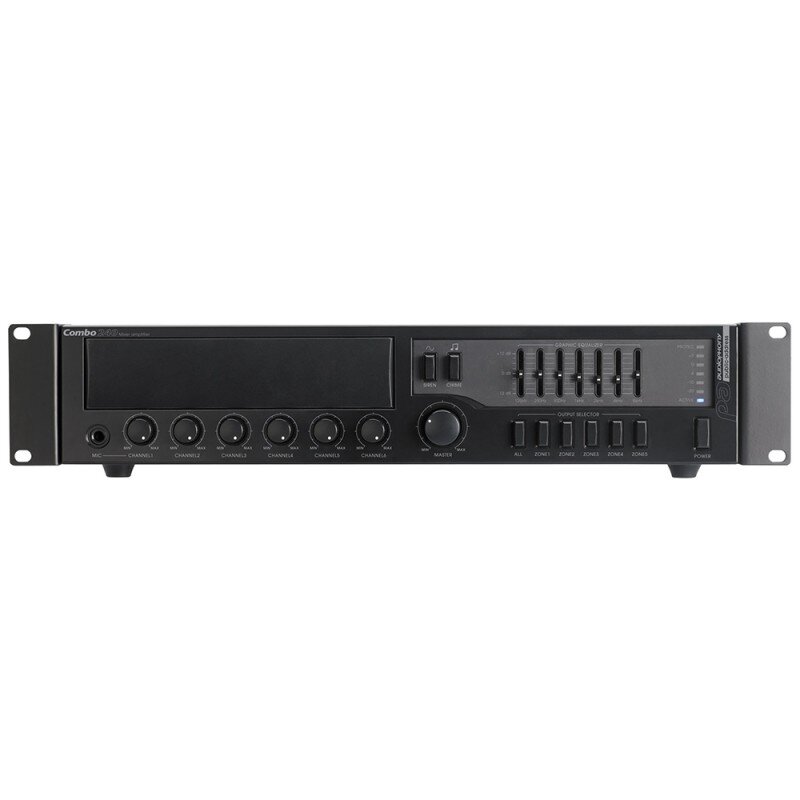

Front panel

  • 6-channel volume controllers and 1-channel general volume controller
  • Zone selection key
  • Chime activation
  • Alarm activation
  • 7-band equalizer
  • LED VU meter: -20 to + 3 dB

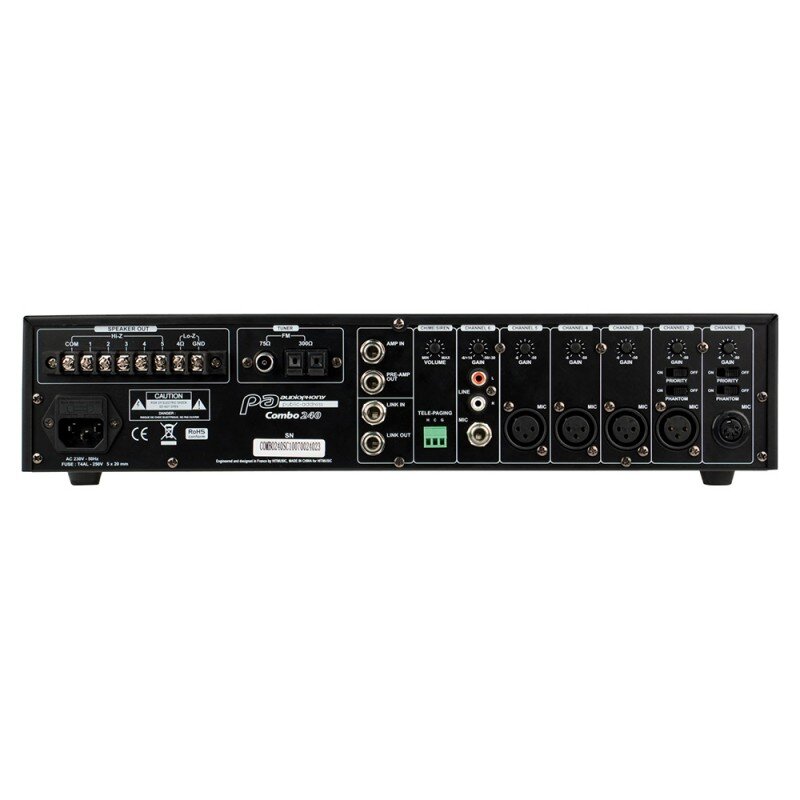

Rear panel

  • 6-channel gain controllers
  • Priority mode and Phantom power supply available for channel 1 and 2
  • Adjustable chime and alarm volumes

Rear inputs / outputs

  • 5-pin DIN input to control the chime
  • XLR MIC/line input on channels 2-5
  • RCA line input on channel 6
  • Remote paging via a 3-pin connector
  • AMP IN and PRE-AMP OUT connections
  • LINK IN et LINK OUT connections
  • High-impedance loudspeakers outputs for channels 1-5
  • Low-impedance loudspeakers outputs 8 to 4 ohm

Technical data

  • RMS max. power: 240 WRMS
  • Output level / impedance: 70 / 100 V - 8 and 4 ohm
  • Dimensions : 420 x 320 x 88  mm (19 '' rack mounting brackets supplied)
  • Weight : 10.8 kg
