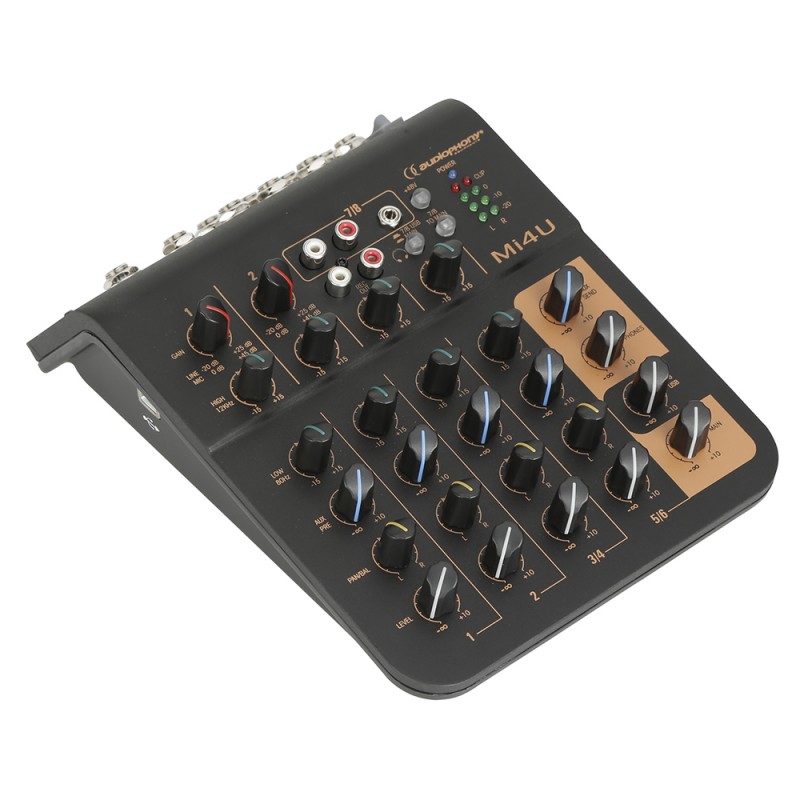

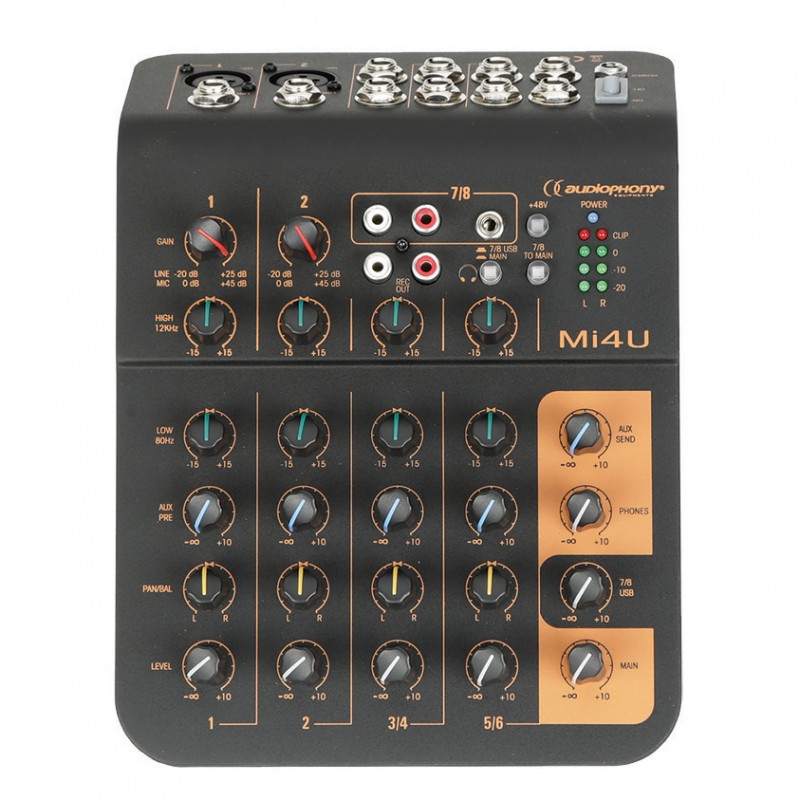

H10910 - MI4U

Mixer 4CH 2 Mic+2 stereo + USB port

184.40€ Prezzo di listino (IVA esclusa)

Descrizione
ITENFR

Mixer compatto a 4 canali con 2 ingressi microfonici (con Phantom 48 V), 2 ingressi stereo, mandata Aux e porta USB.



Compact 4-channel mixer with 2 microphone inputs (with 48 V Phantom), 2 stereo inputs, Aux send and USB port.

Table de mixage compact à 4 canaux avec 2 entrées microphones (avec Phantom 48 V), 2 entrées stéréo, envoi Aux et port USB.

Dati tecnici

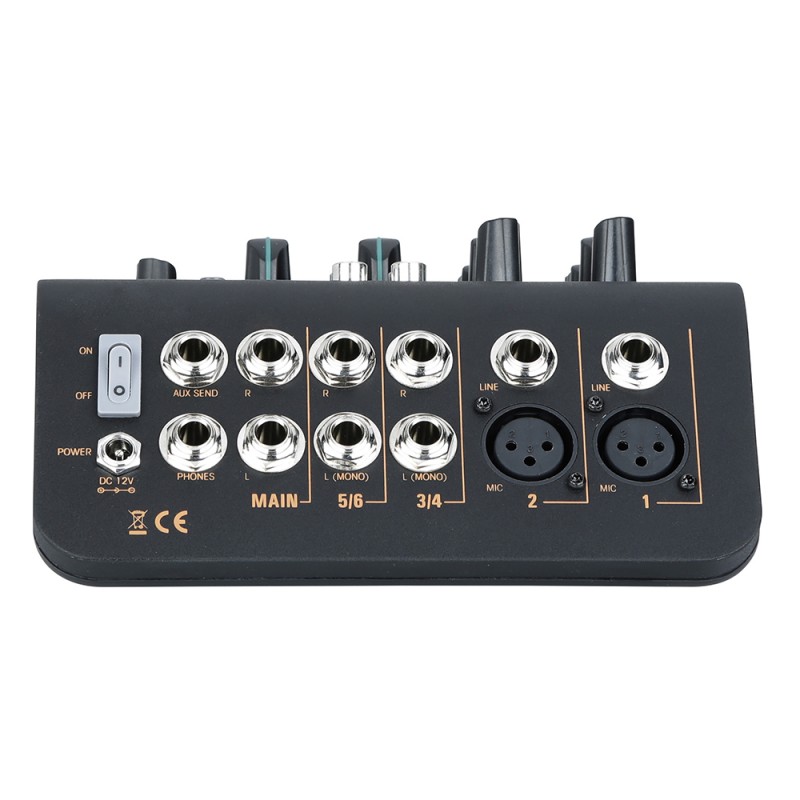

  • 4 channel mixer, 2 microphones, 2 stereo, 1 aux and USB port
  • 2 x microphone inputs via XLR plugs
  • 2 x 6.35 mm jack balanced line input
  • 2 x unbalanced stereo inputs on RCA and 3.5 mm jack
  • 2-band equalizer on MIC/line and stereo channels
  • Gain control for each channel
  • AUX level setting on each channel
  • Balanced MAIN output on 6.35 mm jack
  • Unbalanced Record output via RCA plugs
  • Balanced AUX output on 6.35 mm jack
  • Monitoring output via 6.35 mm stereo jack

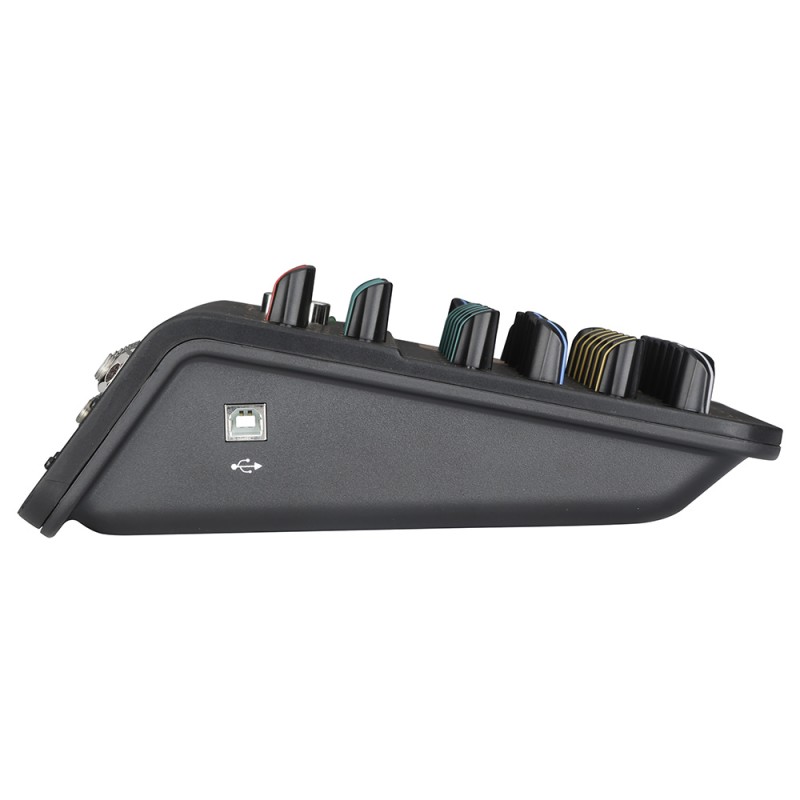

  • 1 USB port for connecting a computer
  • LED VU-meter for MAIN output
MIC input 2
Stereo input 2
Aux 1
Stereo L/R output 2
USB port full duplex 1
Phantom power +48 VDC
Gain 65 dB (MIC main output)
MIC CH. EQ ±15 dB HI: 12 kHz, LO: 80 Hz
LINE CH. EQ ±15 dB HI: 12 kHz, LO: 80 Hz
Frequency response (20 Hz -20 kHz) ±1 dB
Maximum output level +20 dBu
Meter 4 segments (-20 dB to CLIP)
Distortion ≤0.08% (20 Hz -20 kHz)
Power supply 12 VDC external adaptor
Weight 0.78 kg
Dimension (W x D x H) 220 x 160 x 68 mm
