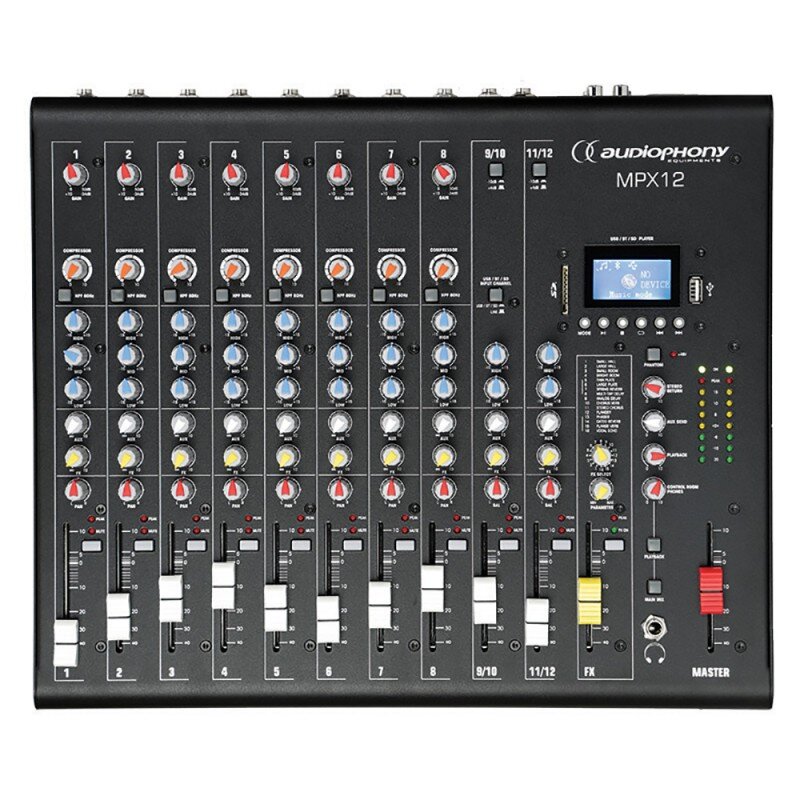

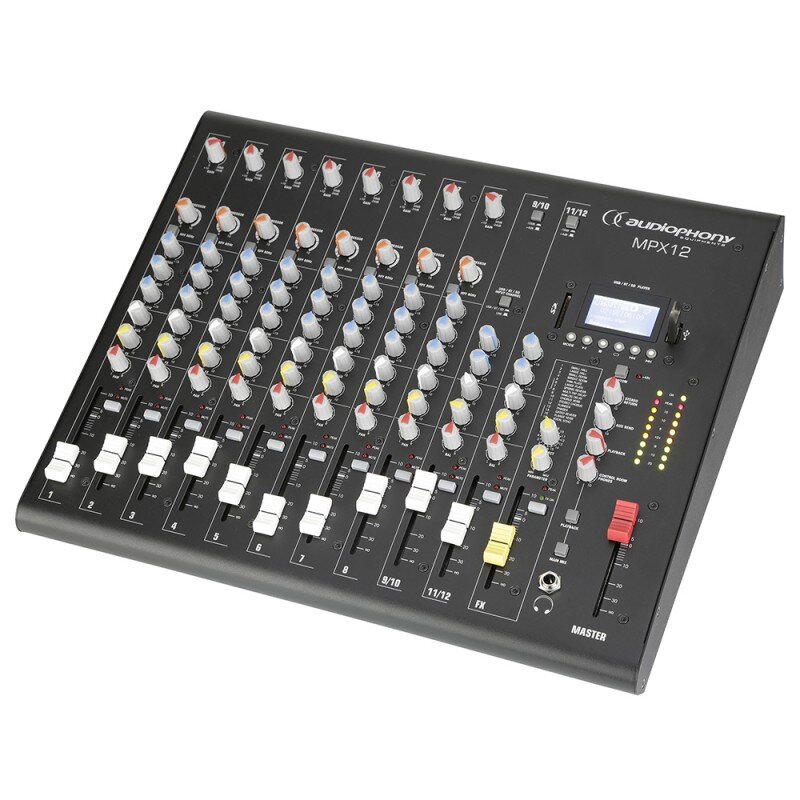

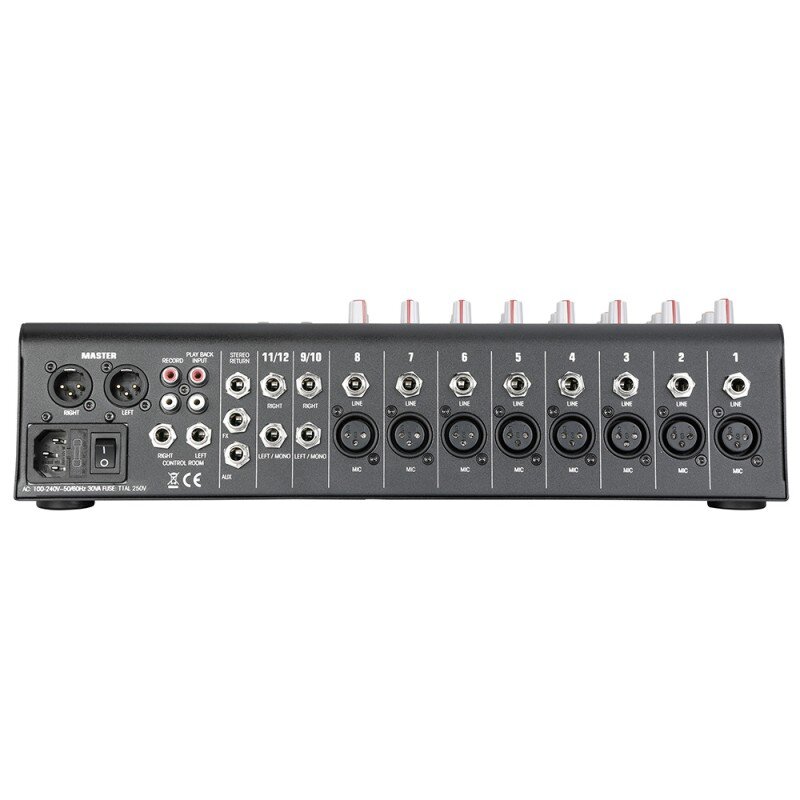

Mixer analogico a 12 ingressi con DSP per effetti e compressore sui canali microfonici. L'interfaccia USB / SD / BT integrata con display ne aumenta la versatilità, evitando l'esigenza di periferiche aggiuntive.
12-input analog mixer with DSP for effects and compressor on microphone channels. The integrated USB / SD / BT interface with display increases its versatility, avoiding the need for additional peripherals.
Table de mixage analogique à 12 entrées avec DSP pour les effets et compresseur sur les canaux micro. Le dispositif USB/SD/BT intégré offre une polyvalence supplémentaire, évitant le recours à des périphériques supplémentaires.
Dati tecnici
Technical characteristics
Mono channels
- Microphone inputs: balanced
- Frequency response: 10 Hz - 30 kHz ±3 dB
- THD (THD & N): 0.03% @ +4 dBu, 22 Hz - 20 kHz A weighted
- Compression: gain: 0 - 9 dB, threshold: 20 dB 5 dB
- S/N ratio: 115 dB
- Line inputs: balanced
- Frequency response: 10 Hz - 30 kHz ±3 dB
- THD (THD & N): 0.005% @ +4 dBu, 22 Hz - 20 kHz A weighted
- Maximum gain: 75 dBu MIC input Master output
Stereo channels
- Line inputs: balanced/unbalanced
- Frequency response: 10 Hz - 55 kHz ± 3 dB
- THD (THD & N): 0.005% @ +4 dBu, 22 Hz - 20 kHz A weighted
Impedances
- Microphone inputs: 1.4 kohm
- Line inputs: 10 kohms
- Other inputs: 10 kohms or more
- Recording input: 1 kohm
- Other outputs: 120 ohms
Mono channels EQ
- High: ± 15 dB @ 12 kHz
- Mid: ± 15dB @ 2.5 kHz
- Low: ± 15dB @ 45 Hz
Stereo channels EQ
- High: ± 15 dB @ 12 kHz
- Low: ± 15dB @ 60 kHz
General
- Multi-effect: 24-bit analog-to-digital converter, 16 programs
- Power supply: 100 - 240 VAC 50/60 Hz
- Dimensions: 330 x 392 x 92 mm
- Weight: 5.2 kg
