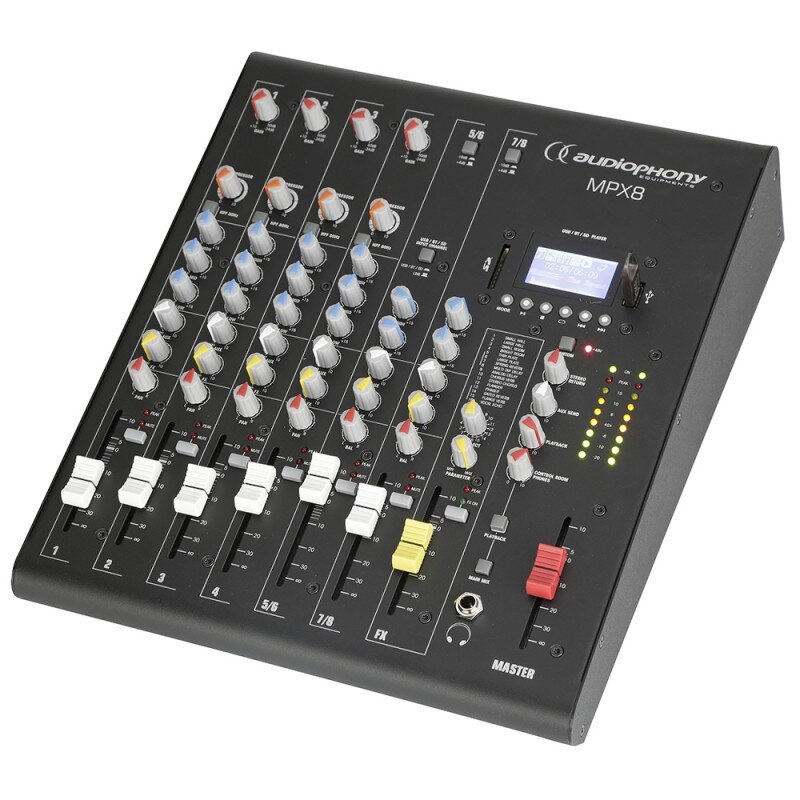

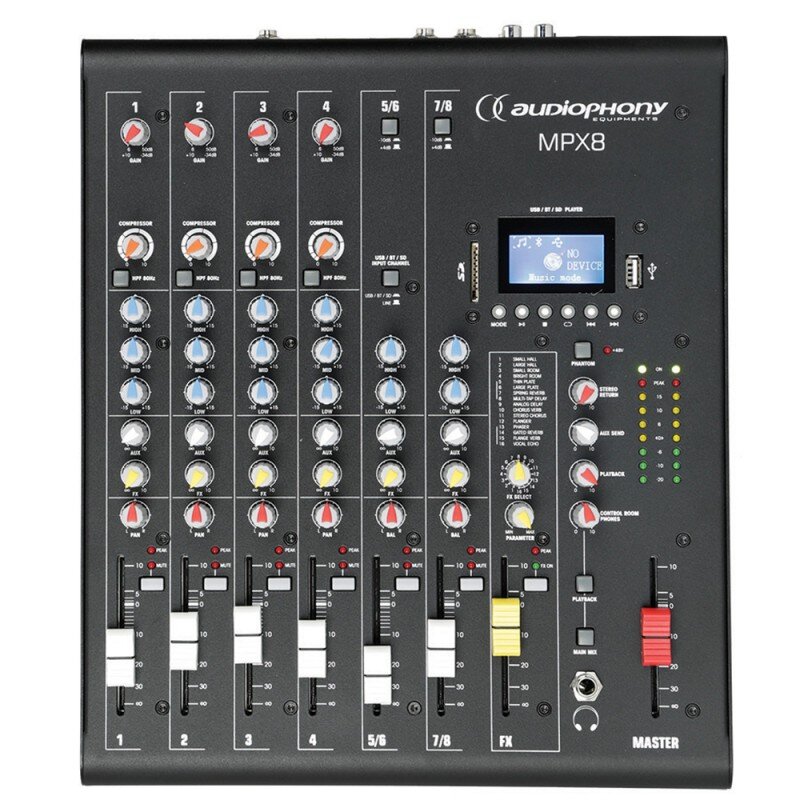

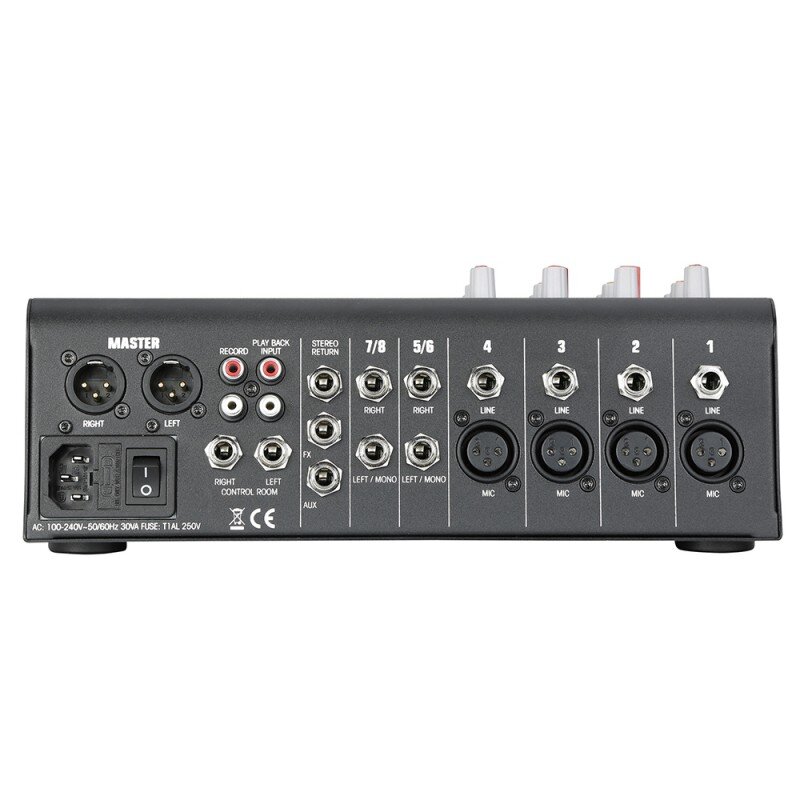

Mixer analogico a 8 ingressi con DSP per effetti e compressore sui canali microfonici. L'interfaccia USB / SD / BT integrata con display ne aumenta la versatilità, evitando l'esigenza di periferiche aggiuntive.
8-input analog mixer with DSP for effects and compressor on microphone channels. The integrated USB / SD / BT interface with display increases its versatility, avoiding the need for additional peripherals.
Table de mixage analogique à 8 entrées avec DSP pour les effets et compresseur sur les canaux microphoniques. L'interface USB / SD / BT intégrée avec écran augmente la polyvalence, éliminant le besoin de périphériques supplémentaires.
Technical characteristics
| Inputs | 8 |
| MIC input channels | 4 |
| Stereo input channels | 2 |
| Gain | min - max |
| MIC | +6 to +50 dB |
| Line | +10 to -34 dB |
| EIN | -100 dB |
| Frequency response | 10 Hz - 20 kHz +1/-3 dB |
| THD MIC channel | ≤ 0.03% |
| Signal to noise ratio | 80 dB |
| Output levels | max. +27 dB (bal) max. +22 dB (unbal) |
| Hi tone control | 2.5 kHz |
| Mid tone control | 2.5 kHz |
| Low tone control | 45 Hz |
| Low cut | 80 Hz |
| Compressor | yes |
| + 48V Phantom power | yes |
| MP3 / USB / SD media player | yes |
| DSP effects, 16 programs | yes |
| Bluetooth player | yes |
| Dimensions (W x H x D) | 28.3 x 7 x 35.9 cm |
