H10943 - ILINESUB12 AW

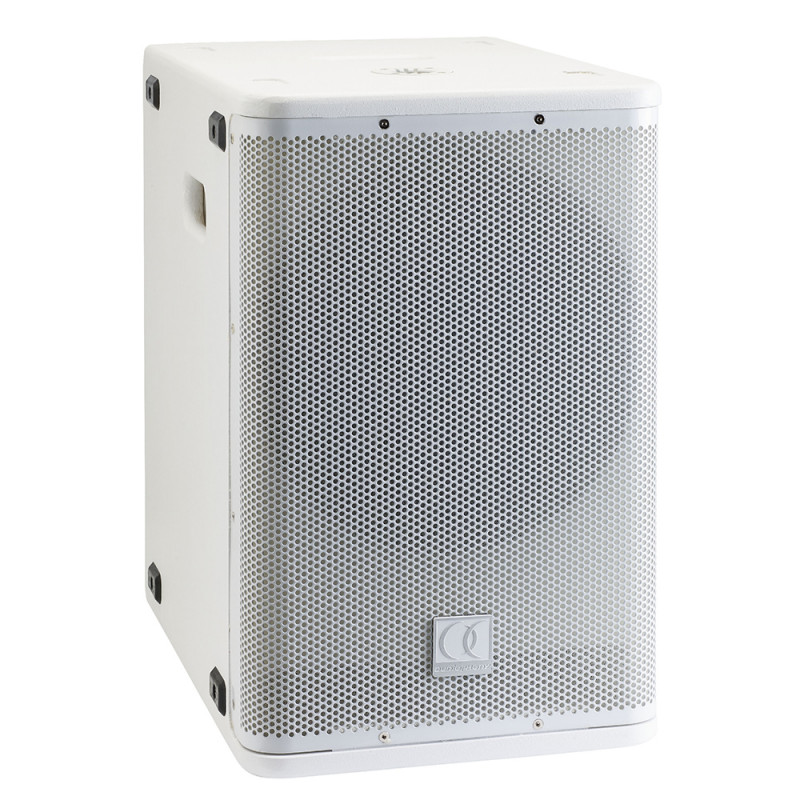

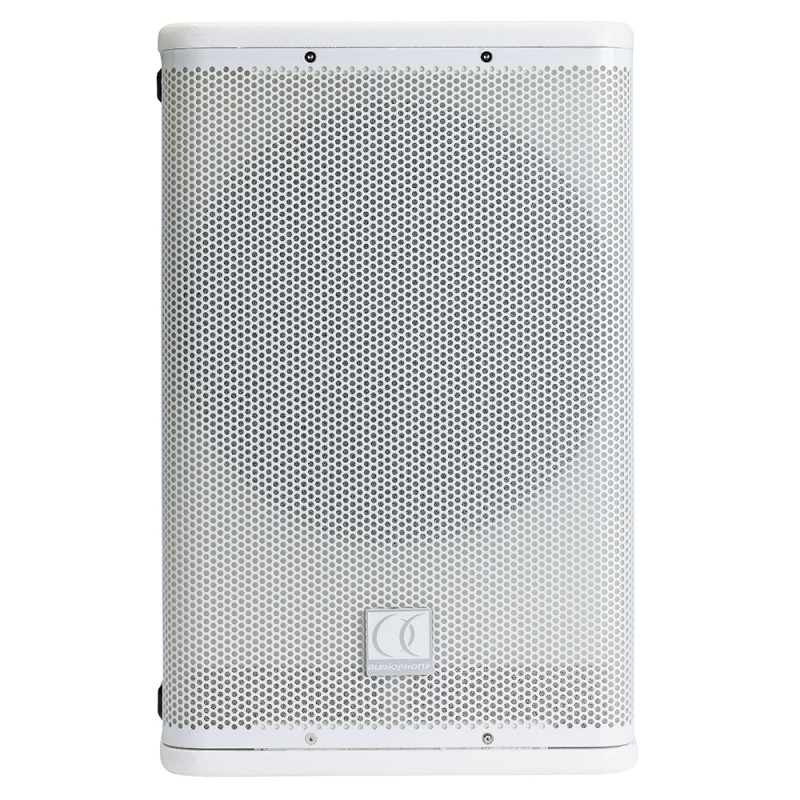

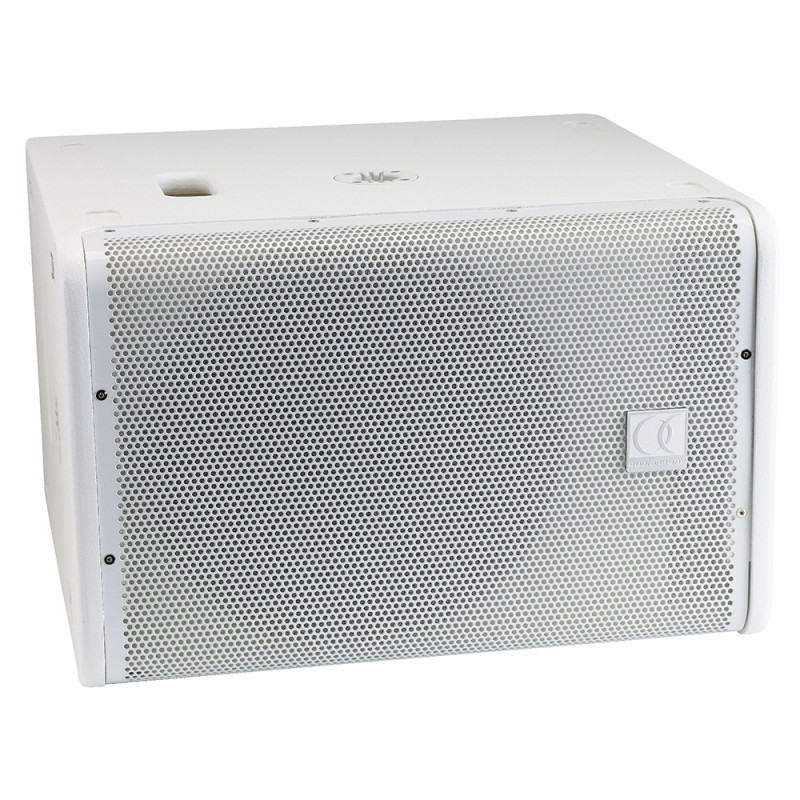

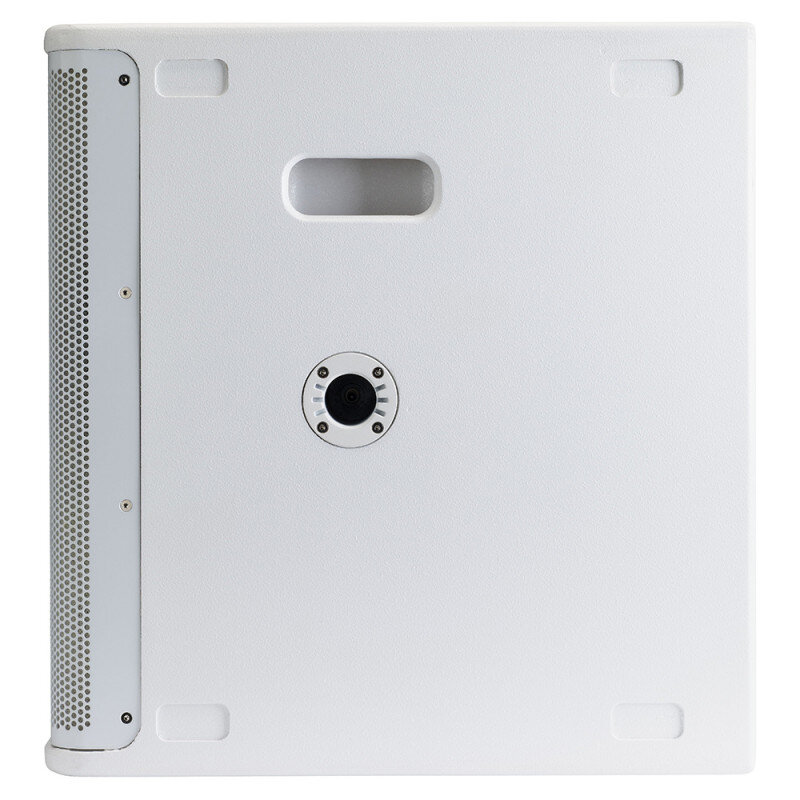

12" active subwoofer 700 W + 700W with built-in DSP -White

956.20€ Prezzo di listino (IVA esclusa)

Descrizione
ITENFR

Subwoofer attivo da 12" con amplificazione anche per i satelliti e DSP integrato

12" active subwooferWith amplification also for satellites and built-in DSP

Caisson de basses blanc actif de 12" de 700 W RMS, 2 embases de 35 mm avec connecteur +700 W RMS pour les satellites et DSP intégré.

Dati tecnici

Power 700+700 W RMS / 4 ohm
Frequency 50 Hz - 200 Hz
Sensitivity 96 dB /124 dB max
Impedance 8 ohm
Speakers 12''
Dimensions 350 x 515 x 490mm
NetWeight 23.5 kg
Dispersion HxV -
Power supply Powercon In/Out: AC 220 V-240V / 50/60 Hz.20A
DSP RJ45 In/Out
Materials

Finnish birch plywood and integral steel grill protection
Finishing White polyurethane paint

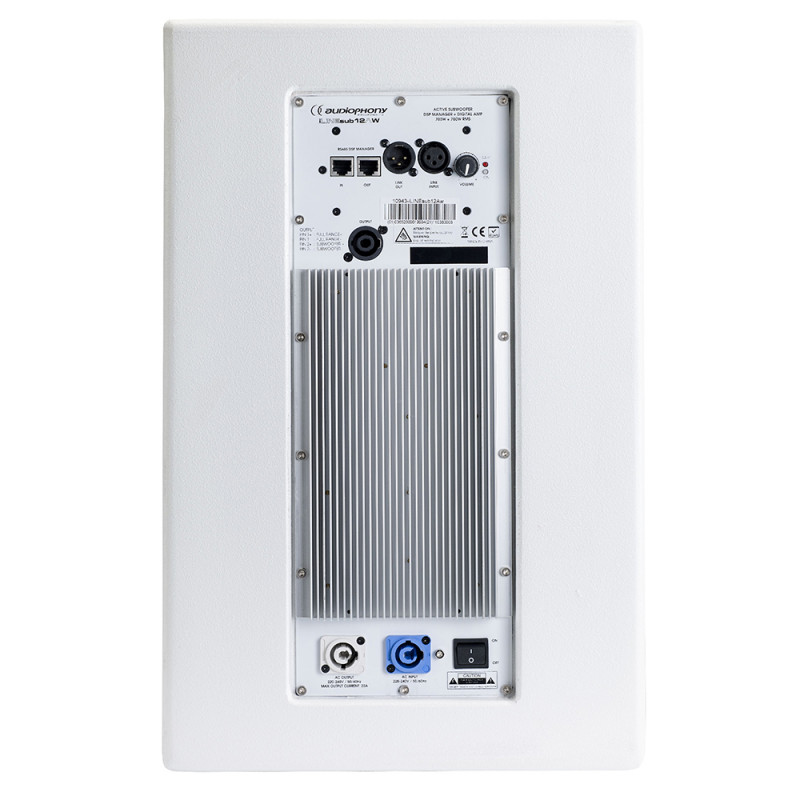

Connectors:

  • Input: Line level balanced XLR3-F
  • Output:Line level balanced XLR3-M, Powered speakON: - 1+/1-: Full range output ; 2+/2-: Bass output

Amplification: Total power avaible 700+700 W RMS / 4 ohm:

  • Full range output: 700 W RMS / 4 ohm .
  • Internal sub power: 350 W RMS / 8 ohm. + 350 W RMS / 8 ohm internal

Settings:

  • Volume: General level of the system
  • DSP: 28/56 bytes, 50 MIPS ; System configuration by the software providedWith converter iLINEbox ref. 10762

Column speaker connexion system:

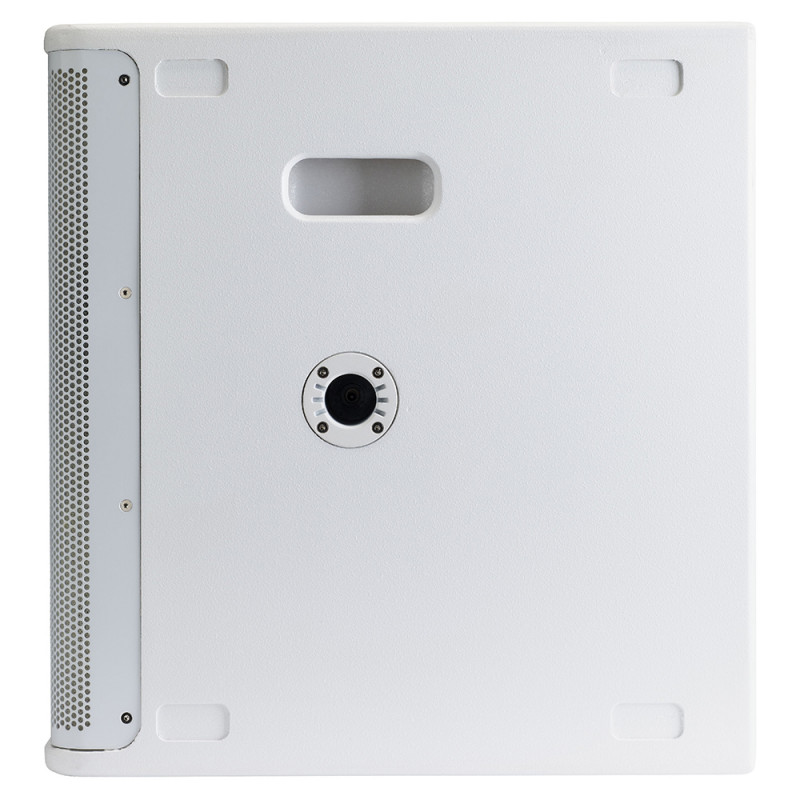

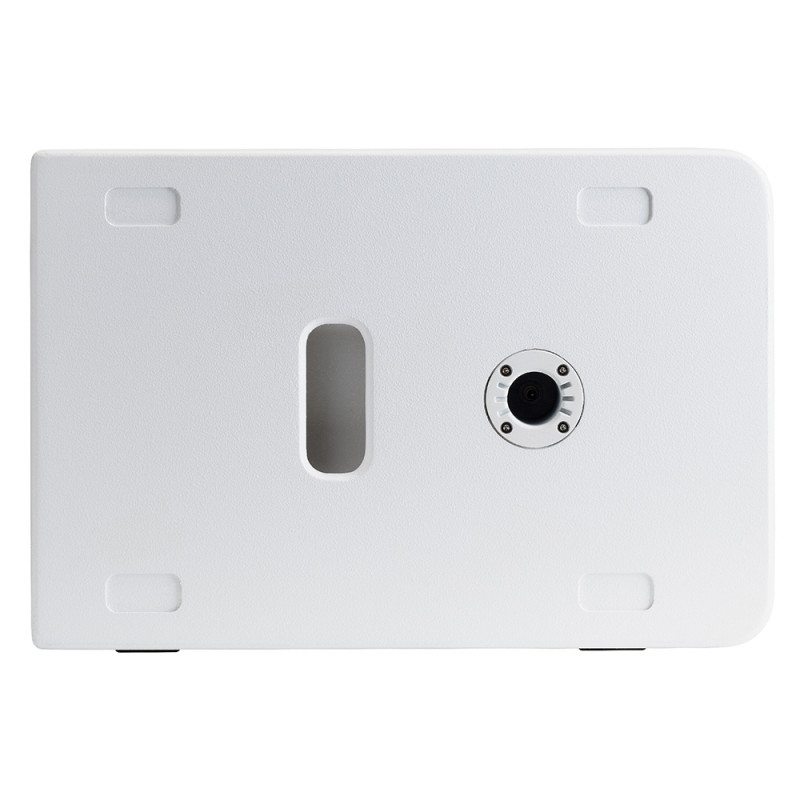

  • 2 x 35 mm baseWith integrated connector
