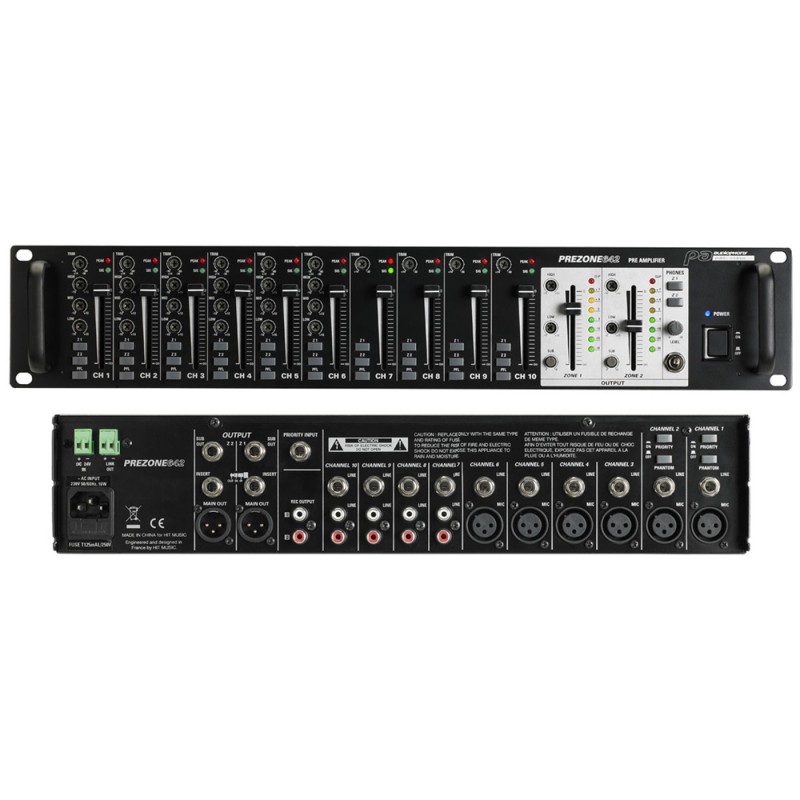

Preamplificatore a 10 canali e 2 zone Preamplificatore compatto multi-sorgente Il PREZONE 642 è uno strumento perfetto per superare iVincoli di campo Layout ben congegnato: è dotato di un terminale posteriore con più uscite e fader rimovibili Rendering ad alta fedeltà: i componenti sono stati selezionati per il loro tempo di risposta e affidabilità Design accattivante: finiture di alta qualità e materiali dai colori piacevoli fanno la differenza 2 zone completamente indipendenti 6 ingressi microfonici e 4 ingressi di linea Misuratori del livello di uscita per ogni zona Alimentazione di emergenza 24 V
10-channel and 2-zone preamplifier compact, multi-source preamplifier The PREZONE 642 is a perfect tool to overcome field constraintsWell thought-out layout: It features a rear terminalWith multiple outputs and removable faders High fidelity rendering: The Drivers have been selected for their response time and reliability Beautiful design: A high-quality finishing and materialsWith pleasant colors make the difference 2 completely independent zones 6 Mic inputs and 4 Line inputs Output level meters for each zone 24 V emergency power supply
Mixer/préampli 10 canaux, 2 zones. Préamplificateur compact, multi-sources, le PREZONE 642 est l'outil idéal pour s'affranchir des contraintes du terrain. Il dispose de 6 entrées micro/ligne mono (Jack ou XLR) et 4 entrées stéréo (RCA ou Jack). Les entrées micro disposent d’un égaliseur 3 bandes et d’un réglage de gain, les entrées stéréo d’un réglage de gain et les 2 zones sont équipées d’un réglage de volume, d’un égaliseur 2 bandes, d’un réglage de sortie Sub et d’un affichage de niveau de sortie. Alimentation de secours 24 V.
Dati tecnici
- 6 Mono MIC/line input via XLR3F/6.35 mm TS jack
- Phantom power supply and Talkover on channel 1 and 2
- Inputs: 4 RCA and 6.35 mm TRS jack
- Priority input: 6.35 mm
- TS jack Zone 1 and 2 mono balanced XLR3-M outputs
- Zone insert: 6.35 TRS-F jack
- SUB output per zone: 6.35 TRS-F 1 jack
- RCA balanced stereo REC output
- 3-way tone and gain control via mic inputs
- Gain control via stereo inputs
- 2-way tone control per zone
- SUBVolume control per zone
- Installer-dedicated settings accessible with a screwdriver
- Zone assignation, PFL on each channel strip
- LED Peak and Signal display
- A 8-LED meter displays the output level for each zone
- Headset output with volume control (zones and PFL)
- Power supply: 230 V 50/60 Hz
- Power consumpiton: 16 W
- 24 VDC with Link Out emergency power supply
- Frequency response: 20 Hz - 20 kHz (+/- 3dB)
- T.H.D (1 kHz nominal power): < 0,2%
- Equalizer: High: +/-12 dB @ 12,5 kHz; Mid: +/-12 dB @ 2,5 kHz; Low +/- 12 dB @ 80 Hz
- Mountable in 19" rack
- Height: 2 units
- Dimensions: 295 x 085 x 482 mm
- Weight: 5 kg
