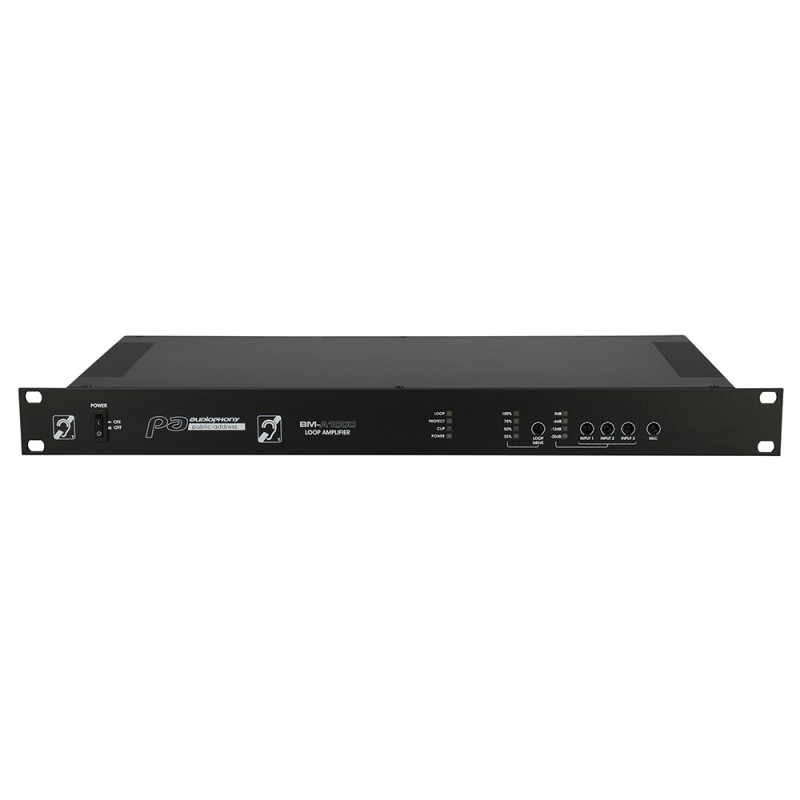

H10797 - BM-A1000

Loop amplifier for surfaces of 1000m2

1,074.70€ Prezzo di listino (IVA esclusa)

Descrizione

Amplificatore a loop magnetico da 1U rack 19", per superfici fino a 1000m2

1U 19" rack magnetic loop amplifier for surfaces up to 1000m2

Amplificateur de boucle magnétique en rack 1U 19", pour des surfaces allant jusqu'à 1000 m².

Dati tecnici

  • 3 inputs: 2 line or microphone inputs
  • Connector: 1 Euroblock/Phoenix and Combo
  • 1 priority 100 V input
  • Monitoring and detection of power supply, amplifier and loop faultsWith NO-NC relay.
  • Integrated phase shi ft module (output 90° or 0°)
  • Automatic gain control
  • Correction control due to metal losses
  • Power: 230 V 50/60 Hz
  • Dimensions: 483 x 43 x 215 mm
  • Weight: 2.47 kg
