Microfono da tavolo (stazione microfonica) e gestore di zona per la matrice DZ-MATRIX.
Caratteristiche principali
- Fino a 64 diversi gruppi di zone
- Ogni zona può essere nominata e assegnata
- Regolazione del volume
- Selettore della zona
- Pulsante push to talk
- Modalità "Emergenza" per trasmettere un messaggio di emergenza prioritario
- Base microfonica con connettore XLR per microfono e alimentazione Phantom
- Microfono gooseneck electret (in dotazione)
- Porta USB per caricare un breve tono (o una sequenza di toni) MP3 (durata max. 4 s) nella memoria
- Porta RD per il collegamento alle porte digitali 9/10, 11/12 della matrice
Nota: Utilizzare un cavo CAT5e o CAT6 con una lunghezza massima di 100 m

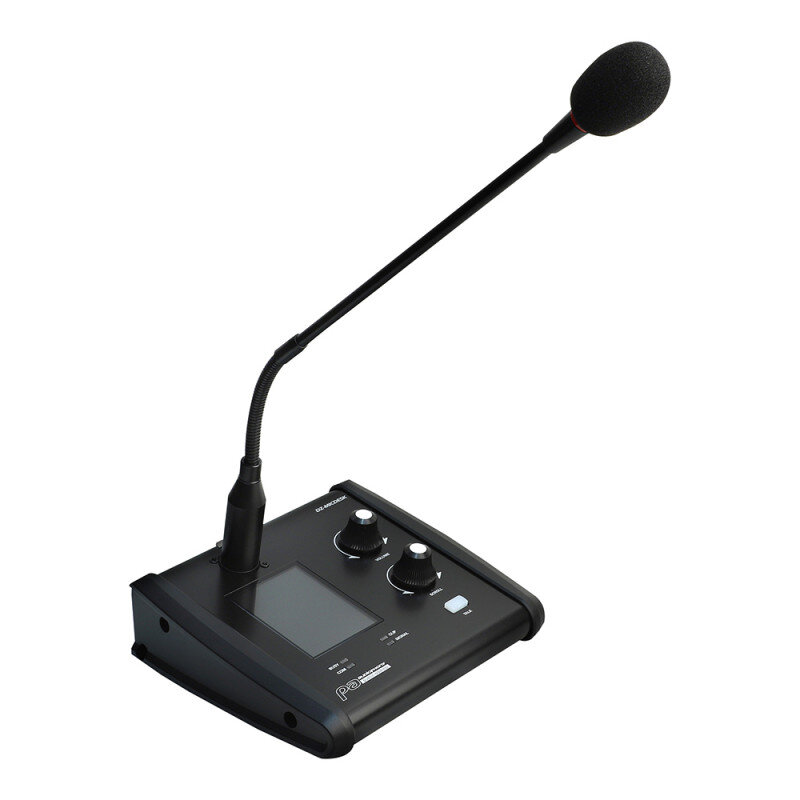

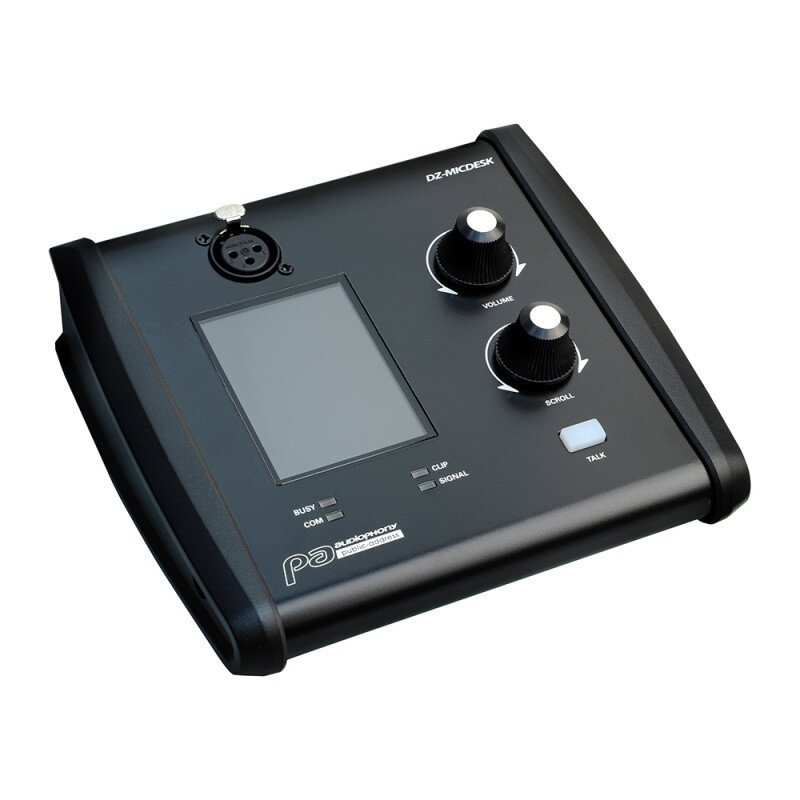

Table microphone (microphone station) and zone manager for the DZ-MATRIX matrix.
Main features
- Up to 64 different zone groups
- Each zone can be named and assigned
- Volume adjustment
- Zone selector
- Push to talk button
- "Emergency" mode to transmit a priority emergency message
- Microphone base with XLR microphone connector and Phantom power
- Gooseneck electret microphone (included)
- USB port to load an MP3 chime (max. duration 4 s) into the memory
- RD port for connection to digital ports 9 / 10, 11 / 12 of the matrix
Note: use a CAT5e or CAT6 cable with a maximum length of 100 m
Microphone de table (station microphone) et gestionnaire de zone pour la matrice DZ-MATRIX.
Caractéristiques principales
- Jusqu'à 64 groupes de zones différents
- Chaque zone peut être nommée et attribuée
- Contrôle du volume
- Sélecteur de zone Bouton « Appuyer pour parler »
- Mode « Urgence » pour transmettre un message d'urgence prioritaire
- Base de microphone avec connecteur microphone XLR et alimentation fantôme
- Microphone électret à col de cygne (inclus)
- Port USB pour charger une courte tonalité (ou séquence de tonalités) MP3 (durée max. 4 s) dans la mémoire
- Port RD pour connexion aux ports numériques 9/10, 11/12 de la matrice
Remarque : utilisez un câble CAT5e ou CAT6 d'une longueur maximale de 100 m
Dati tecnici
Technical characteristics
- Power supply: 24 VDC (powered by the DZ-MATRIX or the DZ-EXPAND)
- Audio output: 0 dBV, balanced, RJ45 connector
- Gooseneck microphone (supplied): unidirectional electret condenser microphone
- Total harmonic distortion : 0.01%.

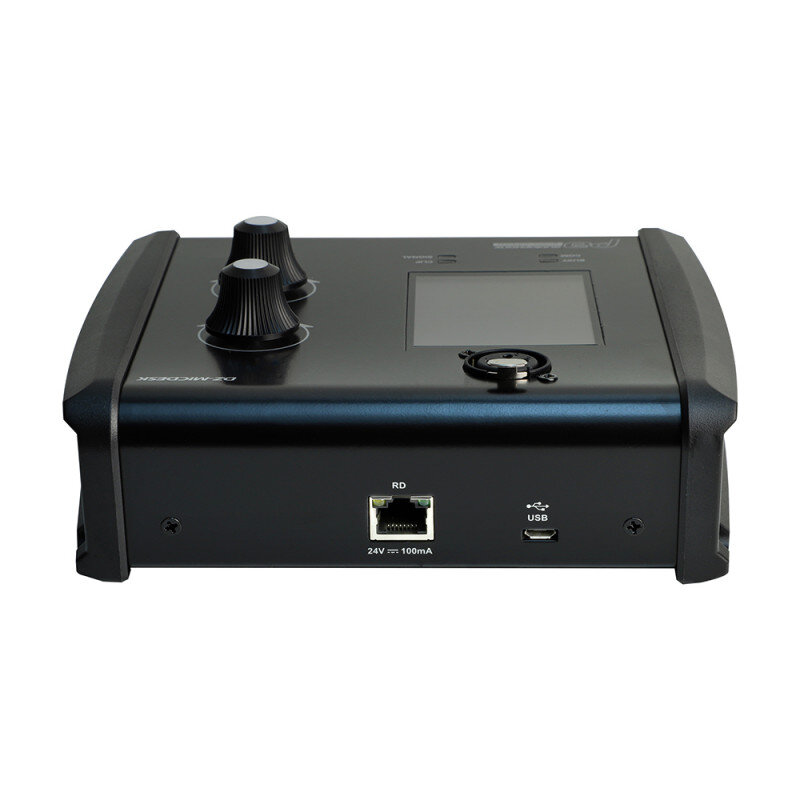

- RD port: transmits and receives AES3 digital audio and control data to the DZ-MATRIX
- RJ45 port
- USB port: WAV / MP3 file upload for chime sound
- Volume control: microphone volume control and all-zone switch
- Zone selector: can address 1 to 64 different zones

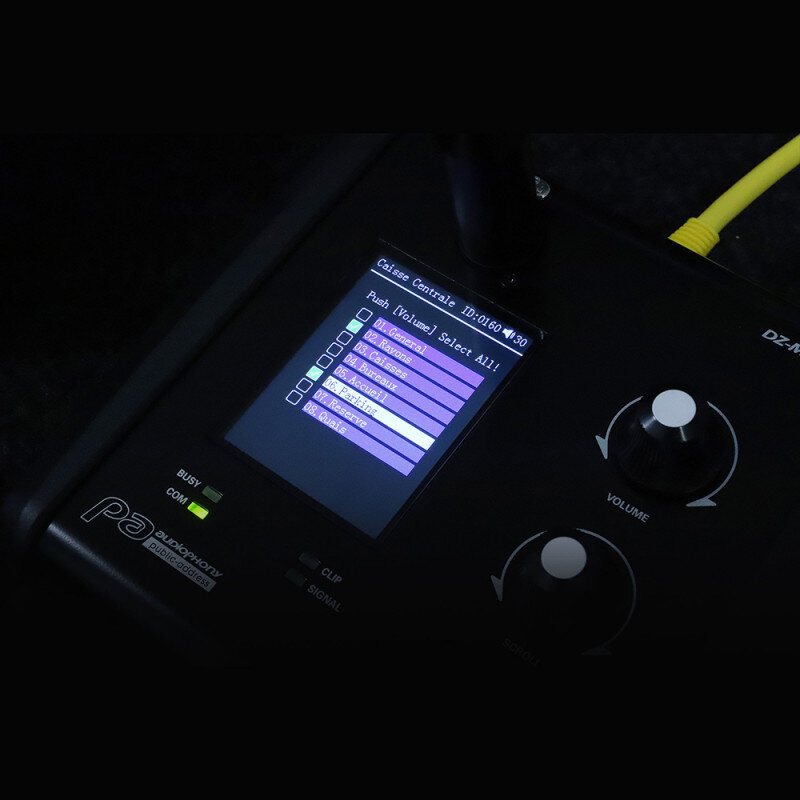

- Display; shows information about the device: ID, volume, zone selector
- Indicators: signal (green), input peak (red), busy (red), comm (green)
- Finish: steel, black paint
- Dimensions (W x D x H): 17.6 x 6.18 x 16.24 cm
- Net weight: 0.8 kg
