Postazione microfonica a 16 zone per la matrice Audiophony PA PREZONE88.

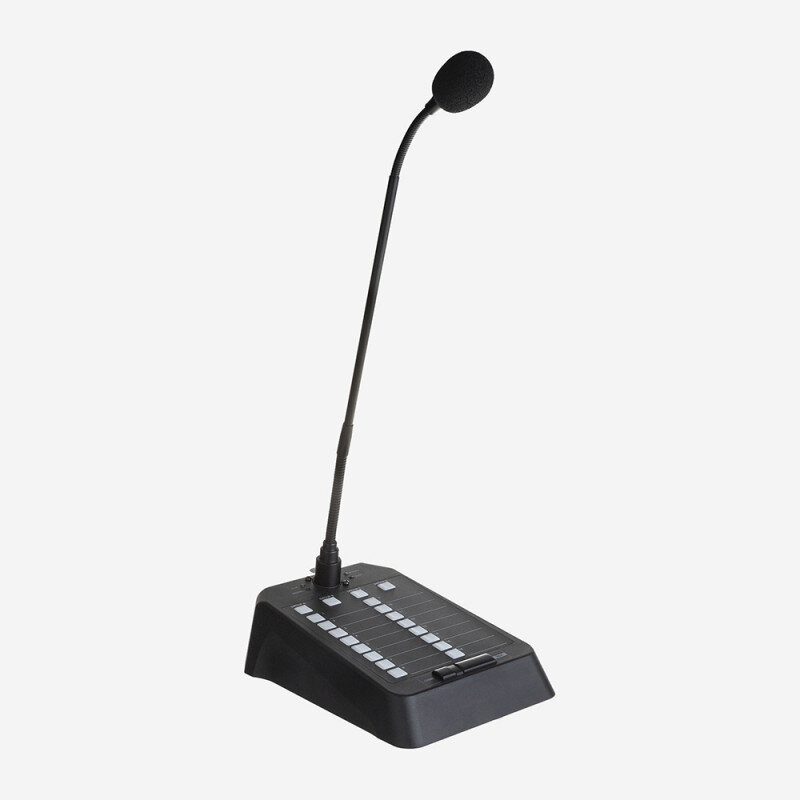

16-zone microphone station for the Audiophony PA matrix PREZONE88.
Station microphonique 16 zones pour la matrice Audiophony PA PREZONE88.
Dati tecnici
Technical characteristics
- 1 MIC input via XLR3-F on front panel

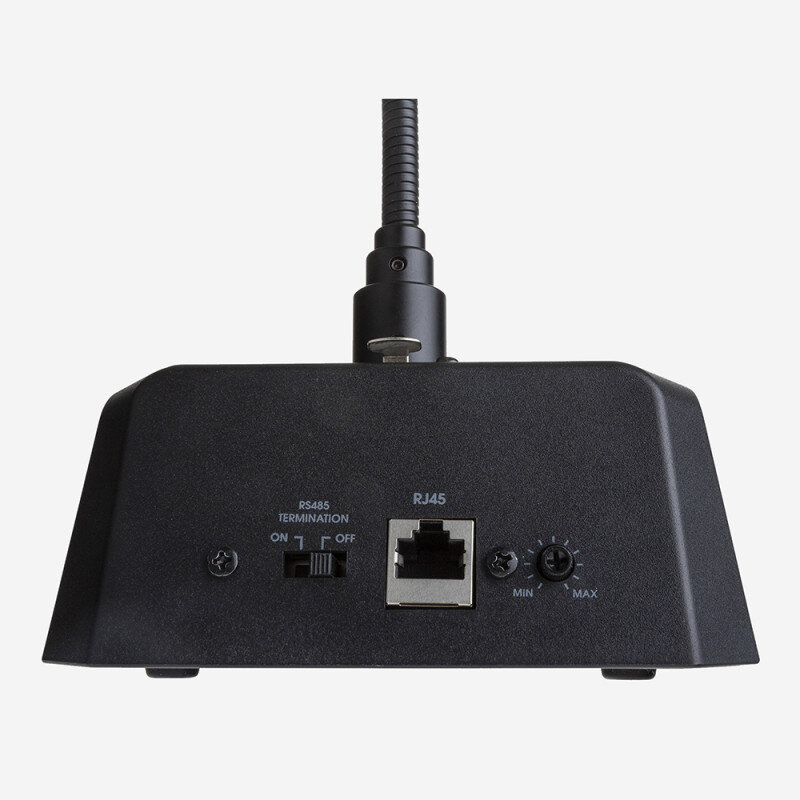

- 1 RJ45 output on rear panel

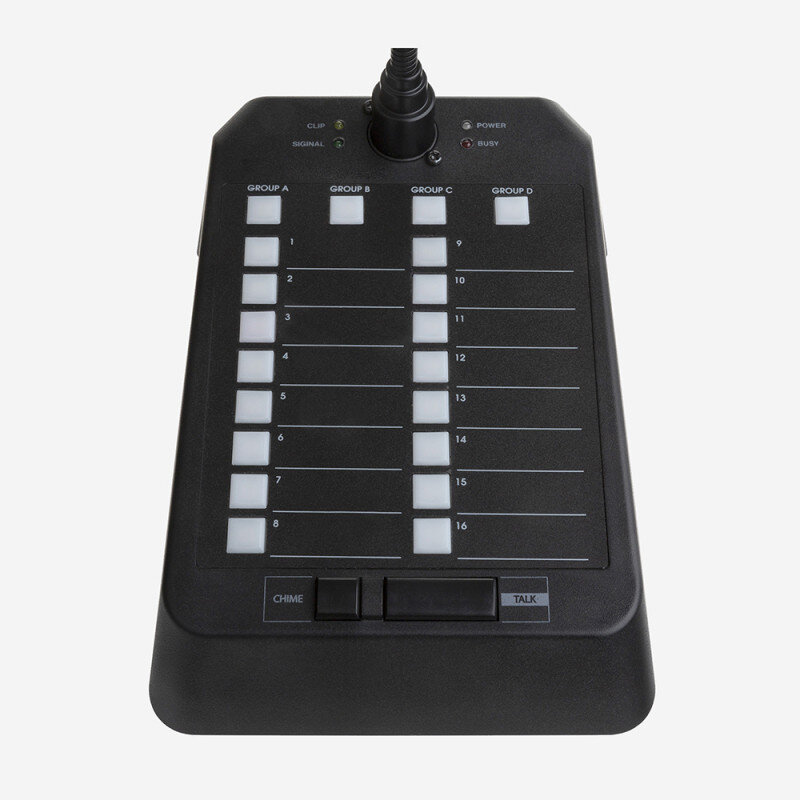

- Talk button on front panel to active the microphone
- Chime button on front panel to activate the chime
- Volume setting (MIC and chime) on rear panel
- Lock / unlock switch to lock zone selection
- Output level display with LEDs
- Powered by an RJ45 cable from the PREZONE88
- Input sensitivity: -60 dB ±3 dB / 600 ohm balanced
- THD: less than 0.1%
- Frequency response: 45 Hz - 15 kHz
- Signal-to-noise ratio: less than 90 dB
- Output level: 0 dB / 600 ohm
- Dimensions: 14 x 6 x 20.5 cm
- Weight: 0.9 kg
