Amplificatore audio stereo professionale. Appartiene alla Serie Ti, 2x150 W su 4 ohm. 300 W in modo bridge mono. Quando il silenzio è un fattore molto importante, puoi fare affidamento sul Ti 300 che lavora in modo estremamente silenzioso. Ciò rende questo amplificatore perfetto per gli studi di registrazione, installazioni permanenti e teatri. Questi amplificatori di classe D sono dotati di unità SMPS e offrono una riproduzione del suono perfetta nonostante le dimensioni ultracompatte. Equipaggiato conVari tipi di connessione, si adatta perfettamente a qualsiasi sistema audio, studio e persino applicazioni HiFi. E' inoltre dotato di protezioni termiche ed elettroniche, in modo da poterlo usare in completa sicurezza e serenità.
Professional stereo audio amplifier, Ti series, 2x150 W on 4 ohm. 300 W in bridge mono mode.When silence is aVery important factor, you can rely on Ti 300WhichWorks as silently as possible. That makes these amplifiers perfect for studio, permanent installations and theatres. These Class-D amplifier feature SMPS unit and offer a perfect sound reproduction despite their ultra-compact Dimensions.With every connection you need they're perfectly adapted for any sound system, studio, and even HiFi applications. They also feature thermal and electronic protections, so you can operate them safely andWith great serenity.
Amplificateur audio stéréo professionnel. Il appartient à la série Ti, 2 x 150 W sous 4 ohms et 300 W en mode bridge mono sous 8 ohms. Lorsque le bruit est un facteur très important, vous pouvez compter sur le Ti 300 qui fonctionne de manière extrêmement silencieuse. Cela rend cet amplificateur parfait pour les studios d'enregistrement, les installations permanentes et les théâtres. Ces amplificateurs de classe D offrent une reproduction sonore parfaite et son alimentation à découpage assure un poids très faible. Doté de différents types de connexions, il s'intègre parfaitement à tout système de sonorisation, studio ou même application Hi-fi. Il dispose également de protections thermiques et électroniques, ce qui vous permet de l'utiliser en toute sécurité et avec une grande sérénité.
Dati tecnici
OVERVIEW
- Class-D amplifier
- Switched-mode power supply
- Mode selection: Stereo, Bridge or Parallel
- Independent limiter for each channel
- Extremely accurate and independent level settings for each channel
- LEDs indicators
- Convection cooled
- Balanced Jack TRS and XLR inputs
- Unbalanced RCA outputs
- Binding post-jacks or speakON® outputs
- Short-circuit, over current and high temperature independent protections for each channel
- 2x19" rack mount spaces
Technical specifications
- Stereo Max power: 4 Ω RMS stereo power (minimum): 2 x 150 W RMS; 8 Ω RMS stereo power: 2 x 80 W RMS
- Mono bridged Max power: 8 Ω bridged power (minimum): 1 x 300 W RMS
- Signal-to-noise ratio Less than 90 dB
- Input sensitivity: 4 dBu +/-2 dB
- Distortion: THD at 1 kHz 1/2 rated power Less than 0.1%; Slew rate: - 65 dB at 1 kHz;
- Frequency response (4 Ω/1 W): +0.5 dB ; 20 Hz-20 kHz
- Input impedance: unbalanced 15 kΩ / Balance 30 kΩ
- Clip: 0 dBr
- Cooling: Convection cooled
- Input connectors: XLR3-F, Balanced 6.35 mm TRS-F jack + Unbalanced RCA
- Output connectors: Binding post-jacks + 4-pole speakON®

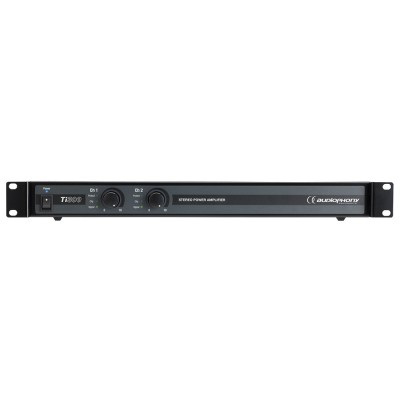

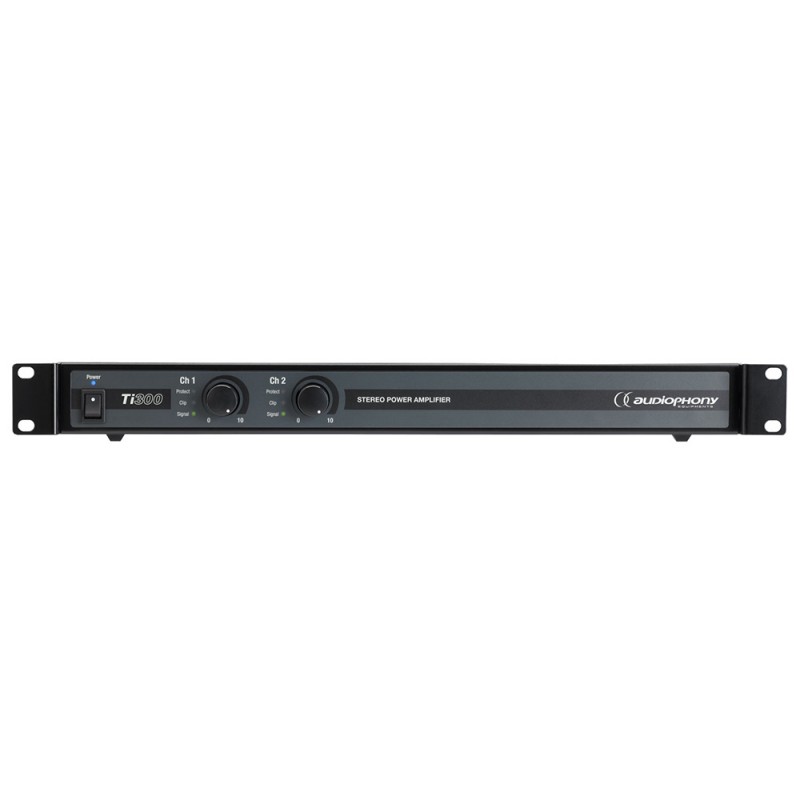

- Front control panel: AC power switch, Channel 1 and 2Volume

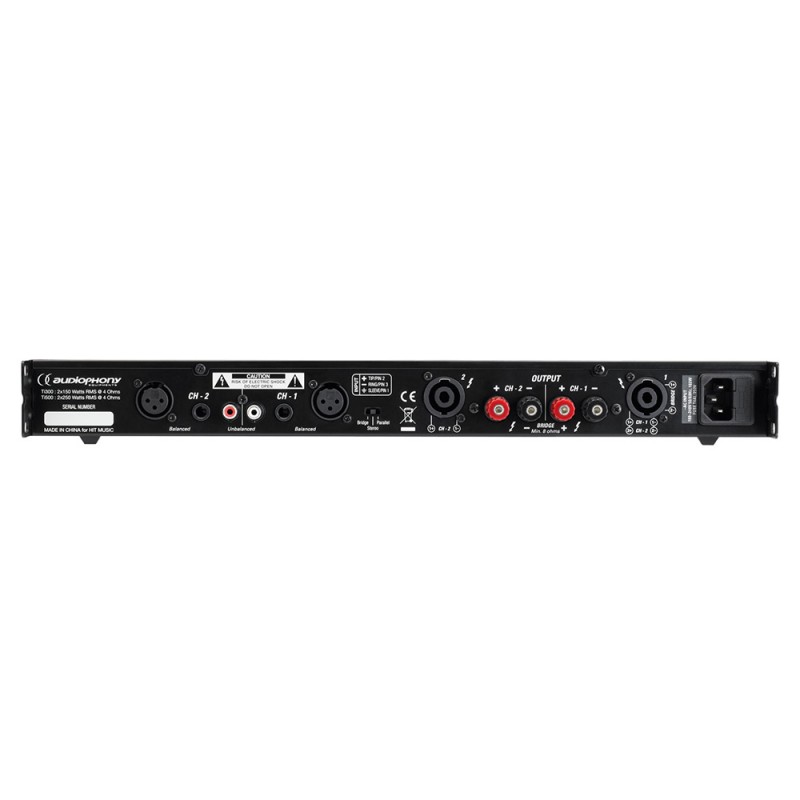

- Rear control panel: Mode selection button
- Indicators: Protect (red) / Clip (yellow) / Signal (green)
- Protections: Short-circuits, over current and high temperature protected
- Power supply: 100/230 VAC - 50/60 Hz
- Dimensions: 482 mm x 44 mm x 330 mm
- NetWeight: 4.3 kg
