B00850 - SCX-12400

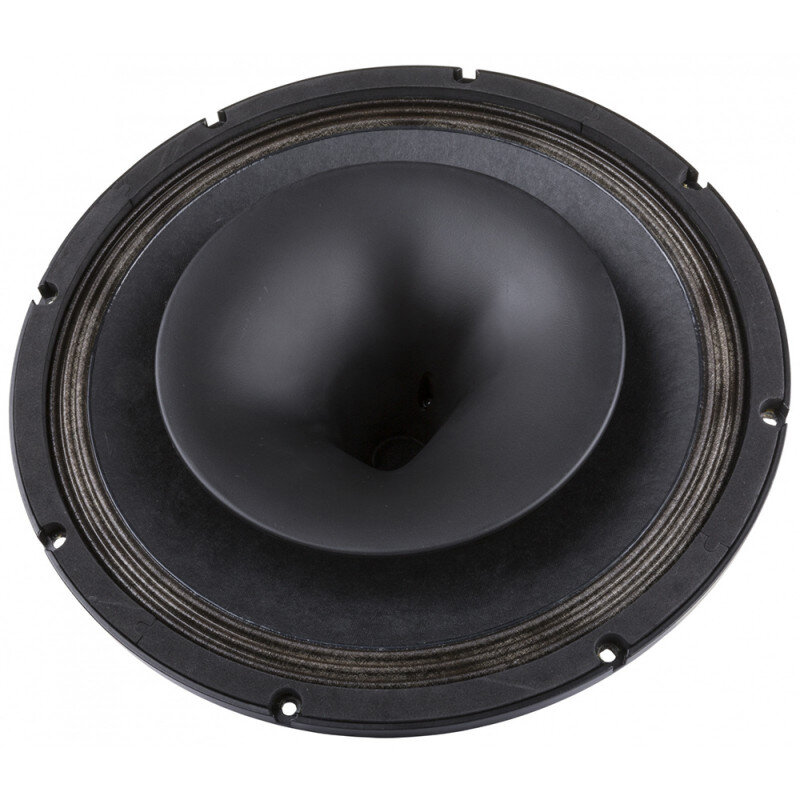

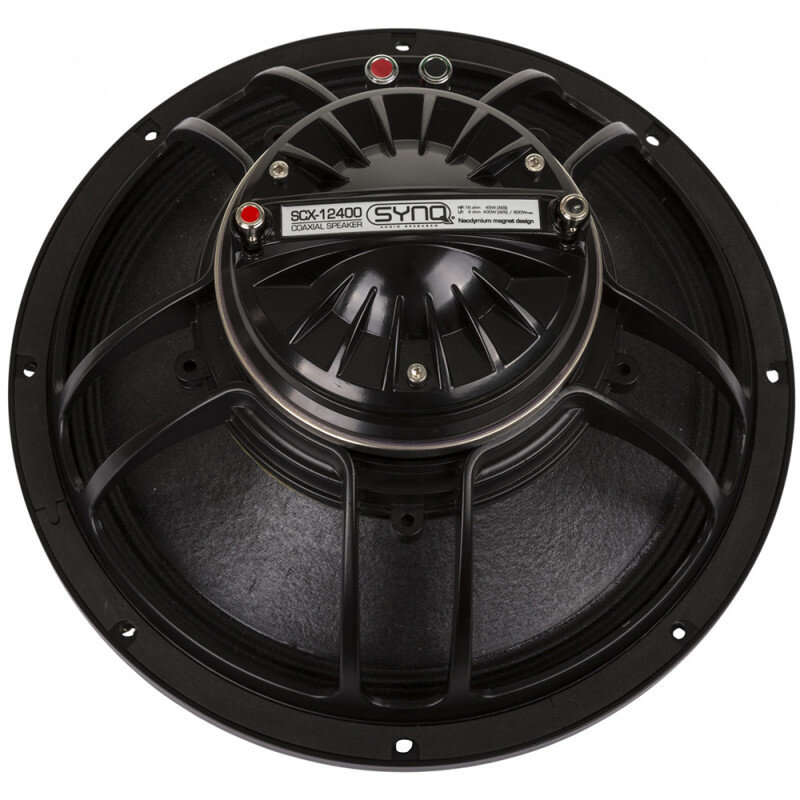

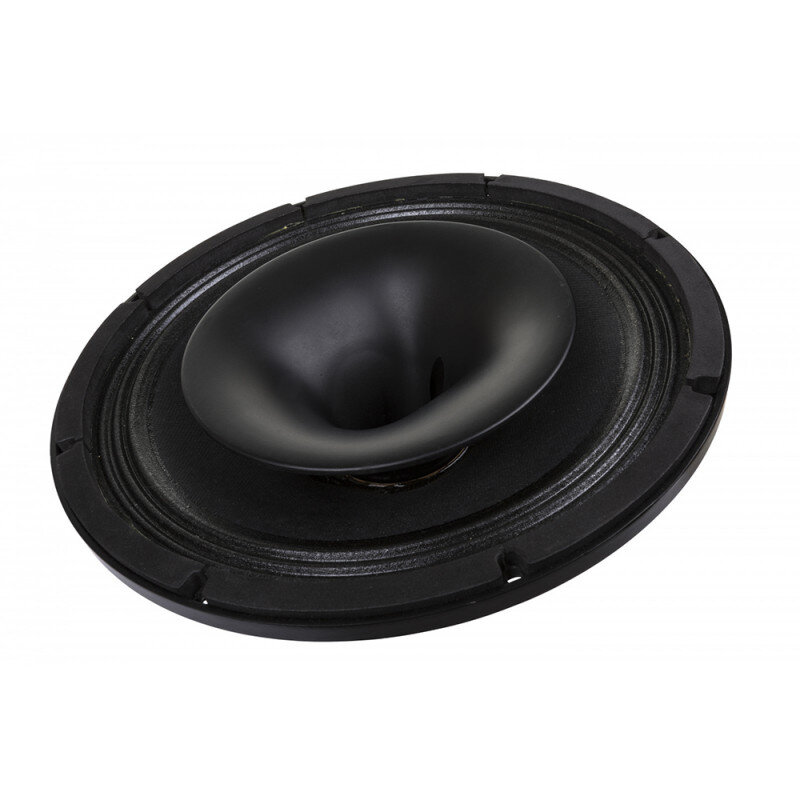

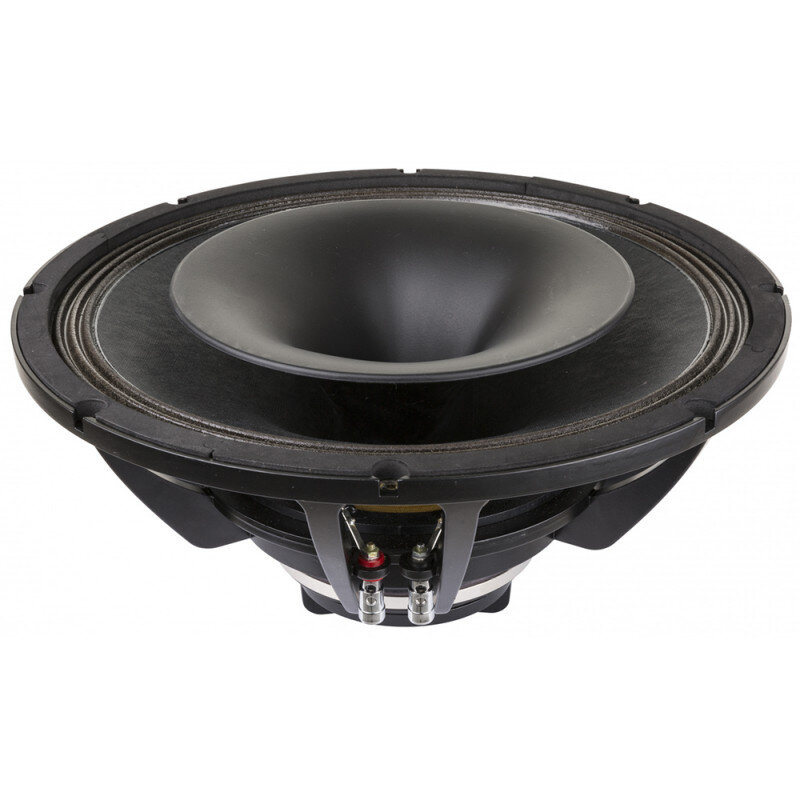

High precision coaxial speaker, 12" LF + 1" HF, 800 W max.

423.70€ Prezzo di listino (IVA esclusa)

Descrizione
ITENFR

Altoparlante coassiale da 400 + 45 W, woofer da 12" e tweeter da 1".

Questo potente altoparlante coassiale da 12" è la sorgente puntiforme ideale per la progettazione di un diffusore senza problemi di fase indesiderati. Produce un modello di dispersione uniforme di 60° x 40° con un buon bilanciamento timbrico.

Peso contenuto grazie al magnete in neodimio.

400 + 45 W coaxial speaker, 12" woofer and 1" tweeter.

This powerful 12" coaxial speaker is the ideal point source for designing a loudspeaker without unwanted phase problems. It produces a uniform dispersion pattern of 60° x 40° with good tonal balance.

Light weight thanks to the neodymium magnet.

Haut-parleur coaxial de 400 + 45 W, woofer de 12"  et tweeter de 1".

Ce puissant haut-parleur coaxial de 12 pouces est la source ponctuelle idéale pour concevoir un haut-parleur sans problèmes de phase indésirables. Il produit un diagramme de dispersion uniforme de 60° x 40° avec un bon équilibre tonal.

Faible poids grâce à l'aimant néodyme.

Dati tecnici

Technical characteristics

  • Power handling capacity: 400 WAES
  • Max power: 800 W

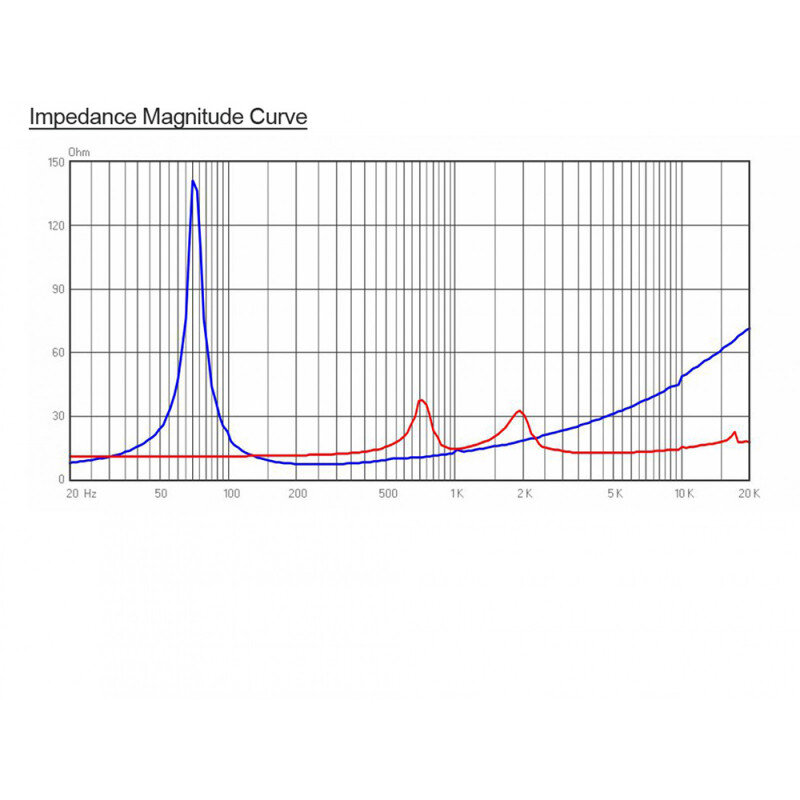

  • Nominal impedance LF / HF: 8 / 16 ohm

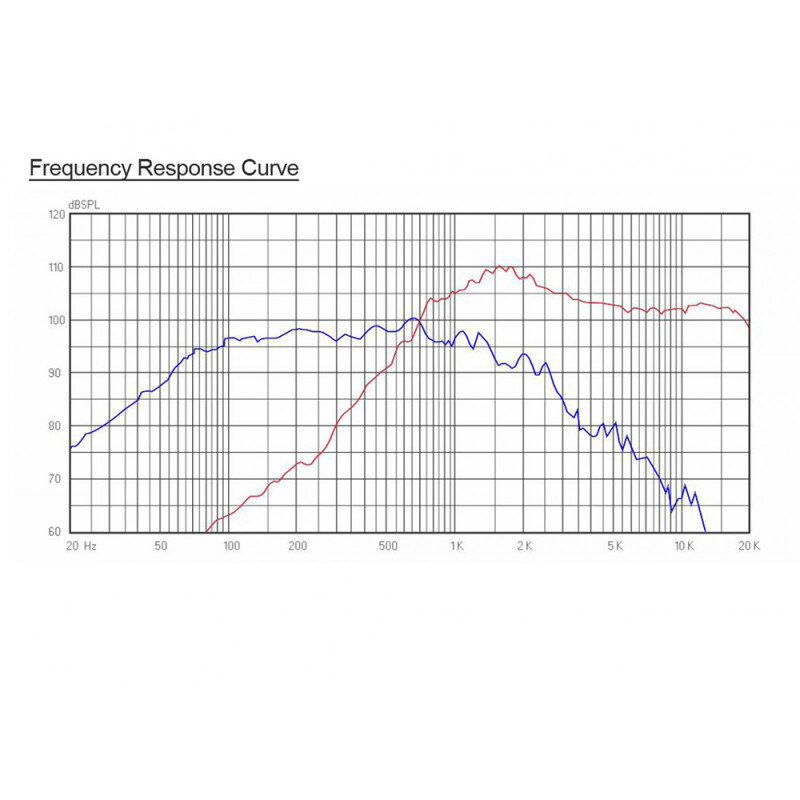

  • Frequency response: 65 Hz - 20 kHz
  • LF:
    • Sensitivity: 98.5 dB/W/m
    • Voice coil diameter: 75.5 mm / 3"
    • Fs: 70 Hz
    • Re: 6 ohm
    • Qms: 5.12
    • Qes: 0.38
    • Qts: 0.36
    • Vas L: 35
    • Mms gr: 55
    • Cms: 0.09 mm/N
    • BL Tm: 19.8
    • Xmax.: 5.0 mm
  • HF :
    • Throat diameter:  25 mm / 1"
    • Power handling capacity WAES: 45
    • Nominal impedance: 16 ohm
    • Sensitivity (2.83 V / 1 m): 102 dB
    • Frequency response: 1.5 - 20 kHz
    • Voice coil diameter: 44.4 mm / 1.75"
    • Re: 12 ohm

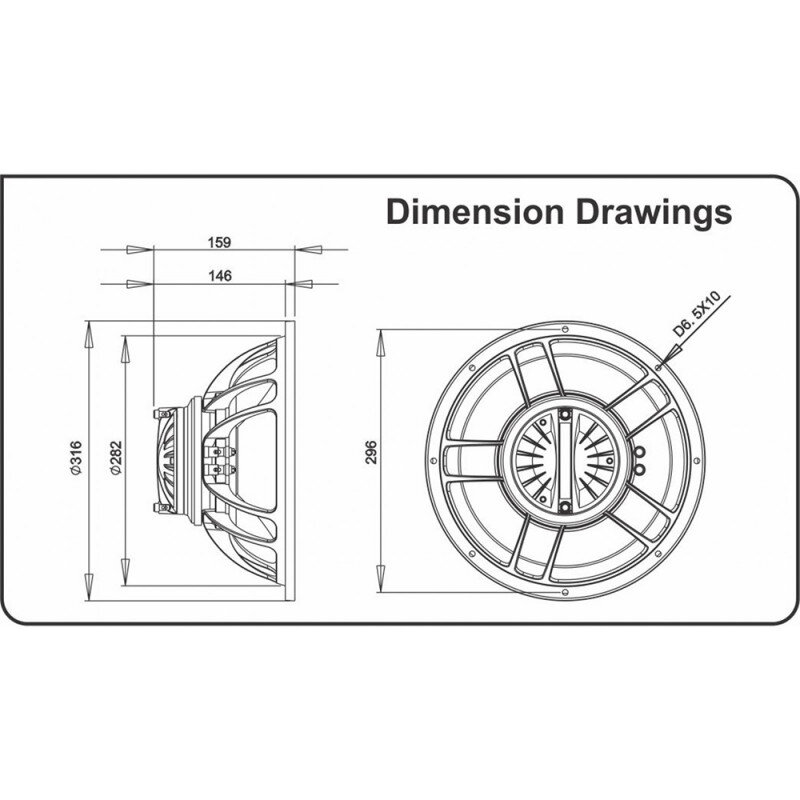

  • Dimensions: 31.6 x 15.9 cm
  • Weight: 5 kg

Notes:

  • AES power is measured with 6 dB crest factor continuous pink noise in 2 h duration
  • Max power is defined as 3 dB higher than the nominal rating
  • Sensitivity is measured at 1 m at 2.83 V and 8 ohm nominal impedance
  • All measurement of the speaker is done after a sufficient high level of 20 Hz sine wave test
  • Xmas is defined at the BL drops by 18% of the original figure
