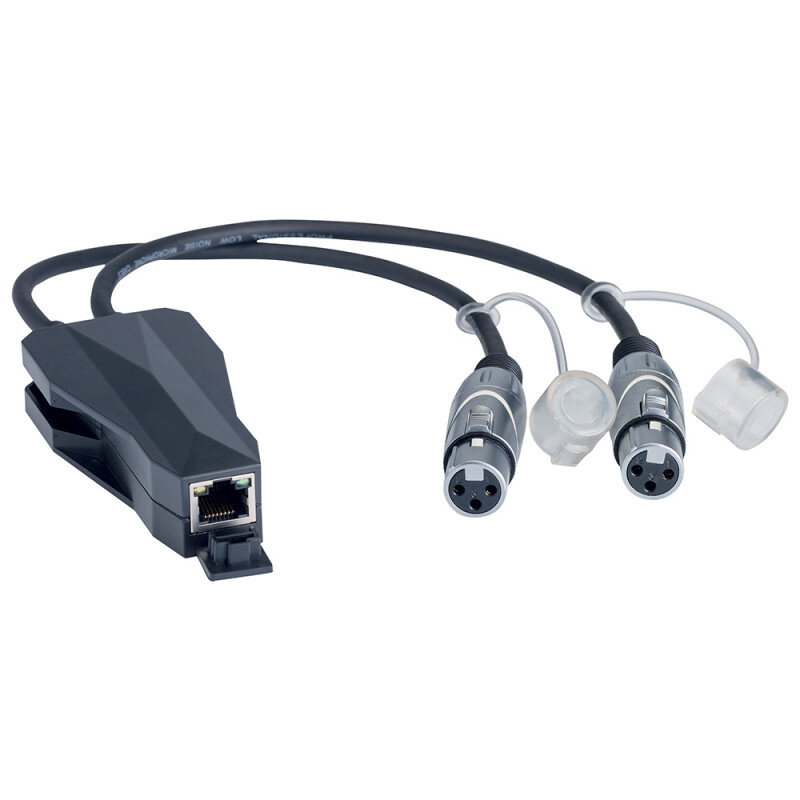

Convertitore Dante, da 2 XLR3-F analogico a RJ45
Dante converter, from two analog XLR3-F to RJ45
Analog audio
- Maximum Input Level: (Balanced) +18dBu
- Input impedance: 20 K ohm (balanced) or 10 K ohm (unbalanced)
- Frequency response: 20 Hz to 20 kHz (± 5dB)
- Dynamic range: > 100dB
- Signal-to-noise ratio: > 100dB
- THD: < 0.05% @ +4dBu
Dante's Audio Dante
- Number of channels 2 output channels
- Sampling frequency: 44.1 kHz, 48 kHz
- Rate: 24 bits
- Network speed: 100 MB
Network type
- Audio Dante, AES67 RTP
Electrical characteristics
- Consumption: < 2Ws
- Power over Ethernet: Class 1 802.3af POE PD compatible
Mechanical characteristics
- Insertion andWithdrawal force: 10 N ~ 30 N
- NetWeight: 165g
Connectors
- Input connectors: 2 x 3-pin XLR plugs
- Dante connector: 1 port RJ45
Materials
- Black ABS housing
- Cable: Black PVC audio cable, Ø 6mm
Operating environment
- Temperature -5 °C ~ +60 °C
