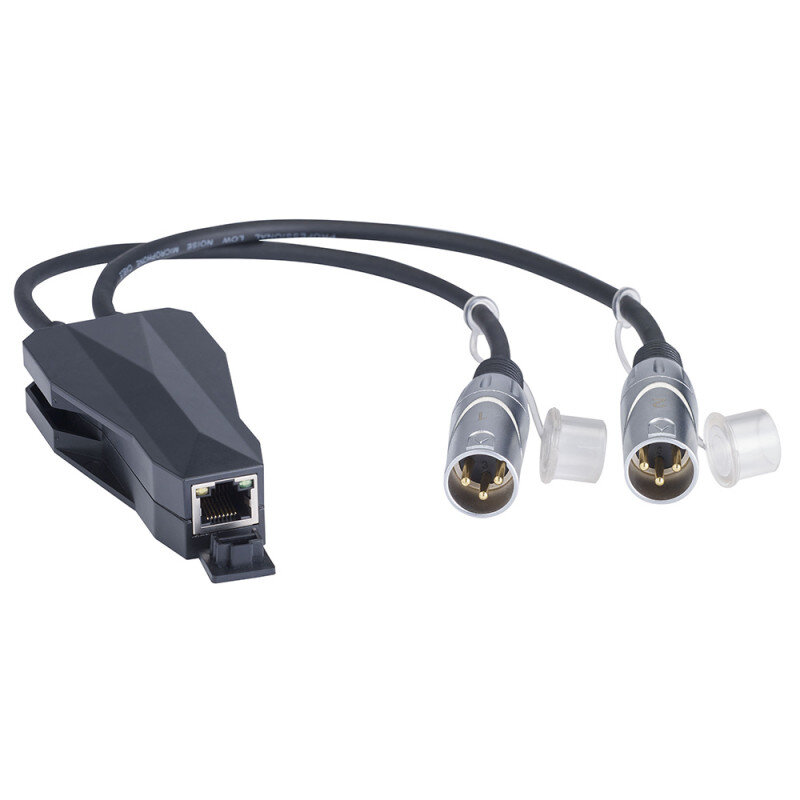

Convertitore Dante, da RJ45 a 2 x XLR3-M analogiche.
Dante converter, from RJ45 to 2 analog XLR3-M outputs.
Convertisseur Dante RJ45 vers 2 sorties analogiques XLR3-M.
Dati tecnici
Technical characteristics
Analog audio
- Maximum output level (balanced): +4 dBu @ 0 dBFS
- Output impedance: 150 ohm (balanced) or 75 ohm (unbalanced)
- Frequency response: 20 Hz - 20 kHz (± 5 dB)
- Dynamic range: > 100 dB
- SNR: > 100 dB
- THD: < 0.05% @ +4 dBu
Dante audio
- Number of channels: 2 channels
- Sample rate: 44.1 kHz, 48 kHz
- bit depth: 24 bits
- Network speed: 100 MB
Network transmission
Electrical data
- Power consumption: < 2 W
Power over ethernet: Class 1 802.3af PoE PD compliant
Connectors
- Output connectors: 2 x balanced analog XLR 3-pin
- Dante connector: RJ45 port
Materials
- Housing: black ABS
- Cable: black PVC balanced audio cable, Ø 6 mm
Other data
- Operating temperature: -5 to +60 °C
- Insertion and withdrawal force: 10 - 30 N
- Weight: 165 g
