H10781 - ATOM15A

400 W RMS 2 way active loudspeaker, 15" woofer, 1.35" tweeter, DSP

683.00€ Prezzo di listino (IVA esclusa)

Descrizione
ITENFR

Audiophony ATOM15A è un diffusore attivo PA a 2 vie con woofer da 15" e tweeter a compressione da 1.35", caratterizzato da una potenza RMS complessiva di 400 W ottenuta mediante due stadi di amplificazione in Classe-D. Processore DSP integrato.

Questo diffusore è progettato per offrire un suono di alta qualità e una connettività versatile.

Audiophony ATOM15A is a 2-way active PA loudspeaker with a 15" woofer and a 1.35" compression tweeter, featuring a total RMS power of 400 W obtained through two stages of Class-D amplification. Integrated DSP processor.

This loudspeaker is designed to offer high-quality sound and versatile connectivity.

L'Audiophony ATOM15A est une enceinte de sonorisation active à 2 voies avec un woofer de 15 pouces et un tweeter à compression de 1,35 pouce, offrant une puissance RMS totale de 400 W via deux étages d'amplification de classe D. Processeur DSP intégré.

Cette enceinte est conçue pour offrir un son de haute qualité et une connectivité polyvalente.

Dati tecnici

Technical characteristics

  • Power Bi-amp:
    • LF 350 WRMS Class-D
    • HF 50 WRMS Class-AB
    • Total Max power: 1600 W dynamic / 400 WRMS
  • Frequency response: 45 Hz - 20 kHz
  • Power supply: SMPS
  • Dispersion (H x V): 90° x 60°
  • Crossover frequency: 3.4 kHz
  • Max. SPL: 124 dB
  • Woofer: 15" / 3" voice coil, 4 ohm, 350 WAES
  • Tweeter: 1.35" compression, 8 ohm, 50 WRMS

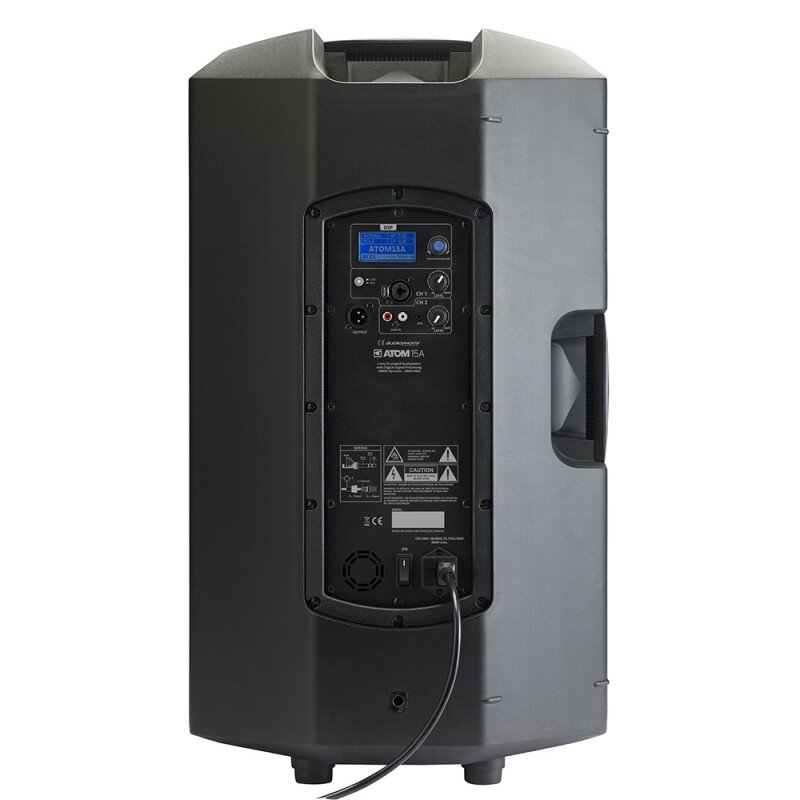

  • Input: 1 x Combo XLR 3-F / jack MIC / line input, 1 RCA and mini-jack 3.5 stereo input
  • Output: 1 x XLR 3-M line output
  • Settings: multiple settings DSP
  • Protection: short-circuit, thermal and limiter
  • Construction and fastenings:
    • 2 monitor-specific angles (45°)
    • 1 top handle
    • 1 side handle
    • 2 x M10 rigging points (on top)
    • 1 insert M10 rear

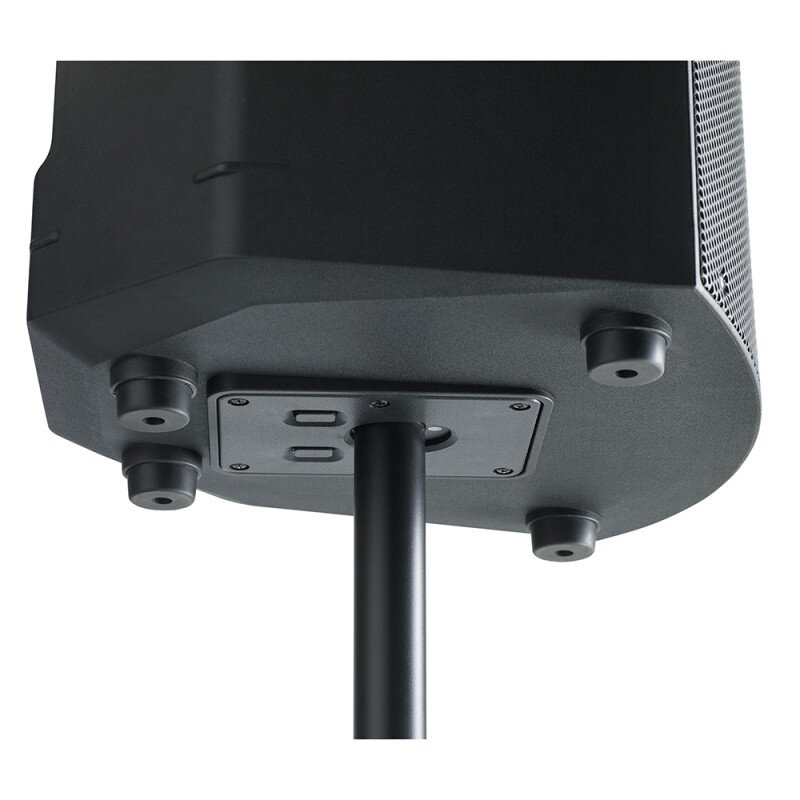

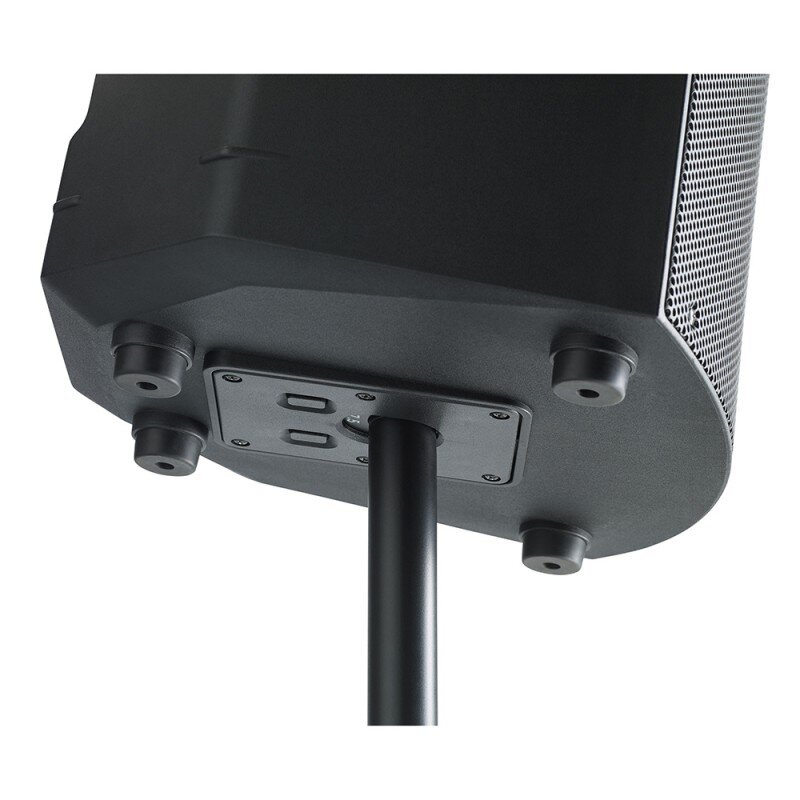

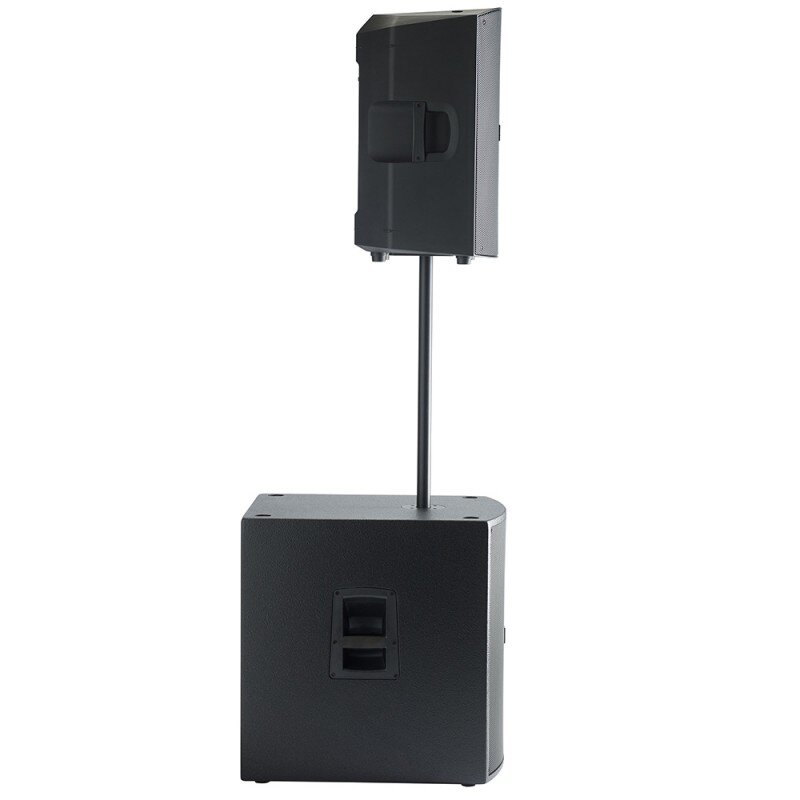

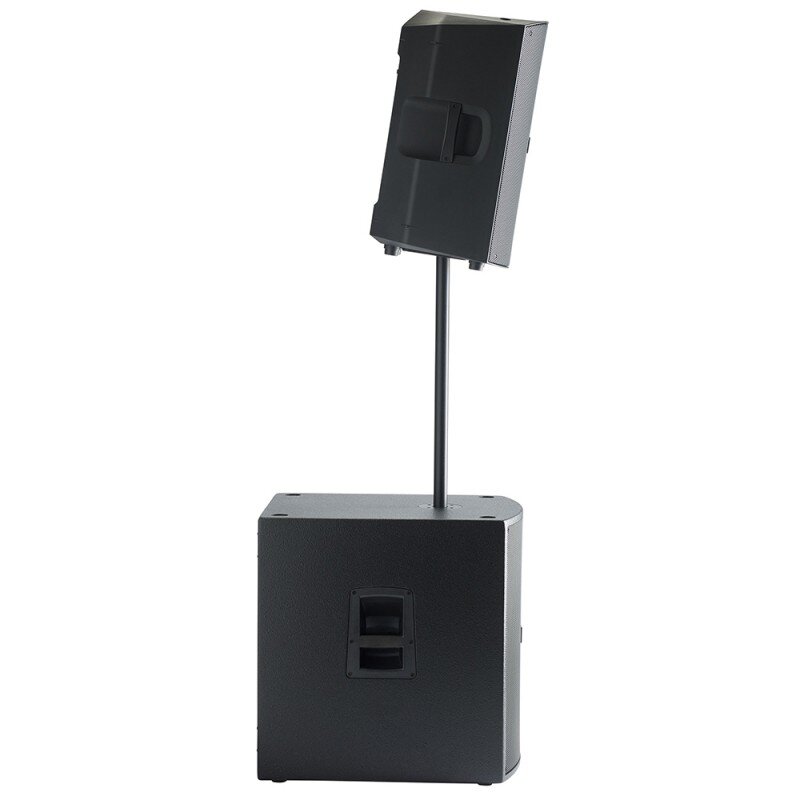

    • 36 mm dual positions mounting plate for a speaker stand (0° and 7.5°)
  • Dimensions: 72.8 x 42.5 x 41.5 cm
  • Weight: 20.6 kg
