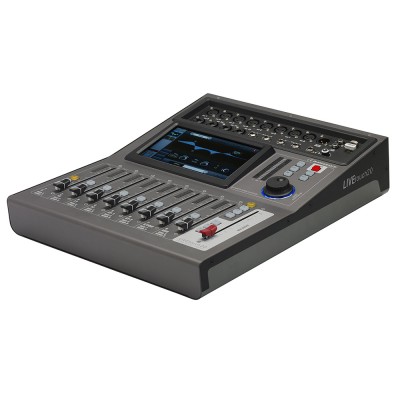

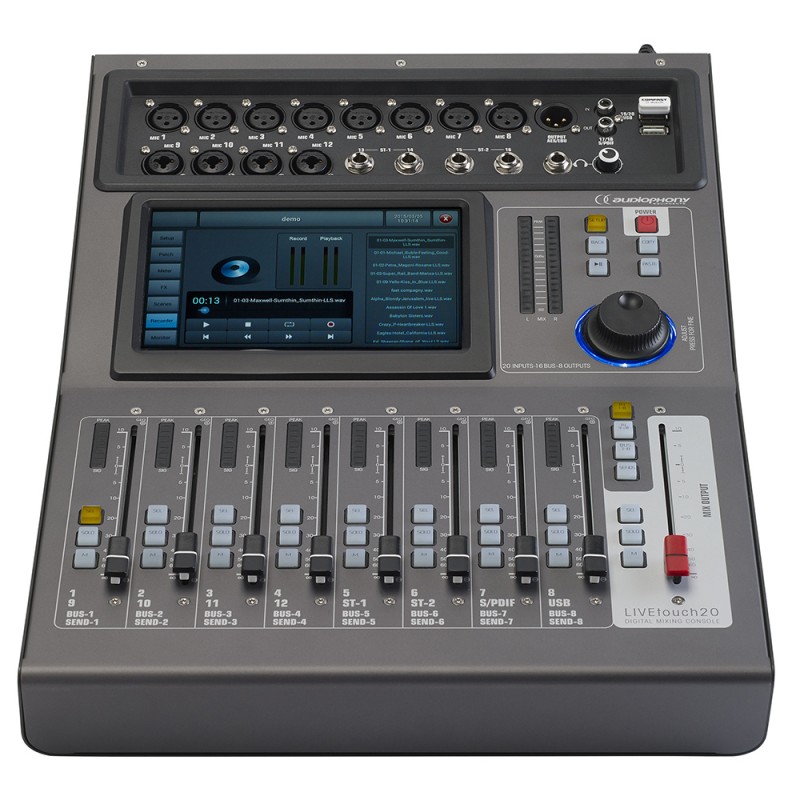

H10901 - LIVETOUCH20

20 CH Motorized Faders Digital Mixer
NON DISP.

638.70€ Prezzo di listino (IVA esclusa)

Descrizione
ITENFR

LiveTouch20 è un mixer digitale a 20 canali con fader motorizzati, un ampio touch screen e porte USB. Il software integrato permette il controllo totale sull'intera elaborazione del suono: equalizzazione, dinamica, effetti, ma anche la gestione dei ritorni, routing, backup e play/rec su chiavetta USB. Lo stesso controllo è disponibile anche da remoto tramite dongleWIFI fornito per poter mixare a distanza con ilVostro iPad. Ci sono 12 ingressi Mic/Line, 2 ingressi stereo tutti indirizzabili a 4 bus mono, 4 bus stereo e master L/R. Il touch screen HD da 7" rende la navigazione semplice e intuitiva per applicazioni in studio o dalVivo.

LiveTouch20 is a 20 channels digital mixerWith motorized faders, a large touch screen and USB ports. The onboard software allows total control on the entire sound processing of your mix: equalization, dynamic, effects, but also management of returns, routing, backup and play/rec on USB key. The same control is also available remotelyViaWIFI dongle provided to remotely mixWith your iPad. There are 12 Mic/Line inputs, 2 stereo inputs all routableVia 4 mono busses, 4 stereo busses and master L/R. The HD 7" touch screen makes navigation simple and intuitive for studio or live applications.

LiveTouch20 est une table de mixage numérique 20 canaux avec faders motorisés, grand écran tactile et ports USB. Le logiciel embarqué permet un contrôle total sur l'ensemble du traitement du son de votre mixage : égalisation, dynamique, effets, mais aussi gestion des retours, routage, sauvegarde et lecture/enregistrement sur clef USB. Le même contrôle est également disponible à distance via le dongle WIFI fourni pour un mixage à distance avec votre iPad. Il y a 12 entrées Mic/Line, 2 entrées stéréo toutes routables via 4 bus mono, 4 bus stéréo et master L/R. L'écran tactile HD de 7" rend la navigation simple et intuitive pour les applications studio ou live.

Dati tecnici

Features

  • 12 microphone inputs + 2 stereo inputs
  • 1 S/PDIF input/output and 1 AES/EBU output

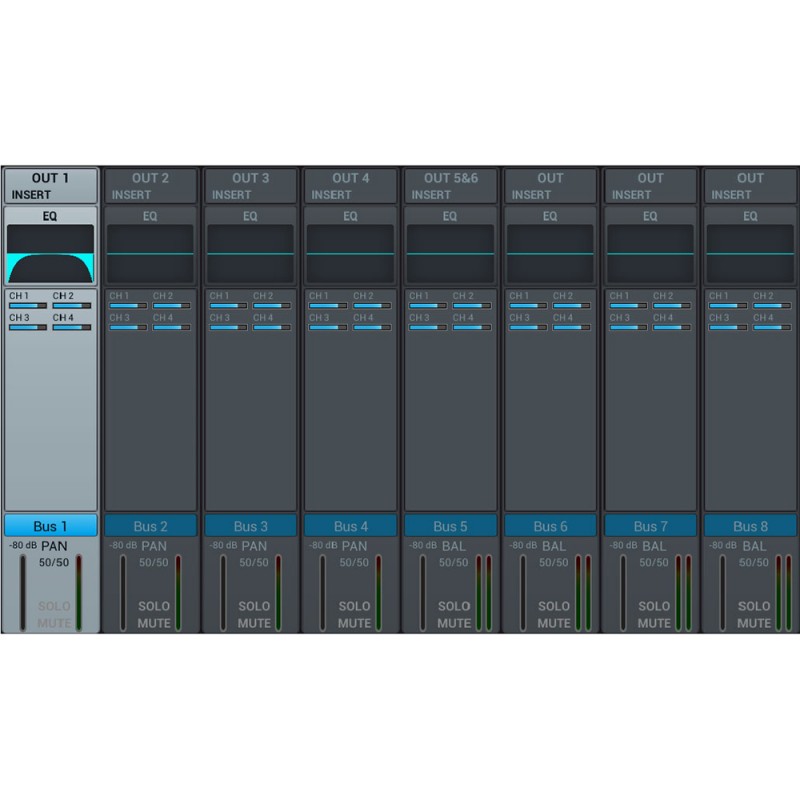

  • 4 mono busses / 5 stereo busses / 1 monitor bus
  • 8 assignable XLR outputs
  • 1 stereo monitor output and 1 headphone output
  • 1 x 7" touch screen
  • 8 effect modules
  • 2 USB plugs for song recording, song playback and scene backups


Technical data

  • Inputs : 12 microphones (4 Combo), 2 stereo, S/PDIF and USB

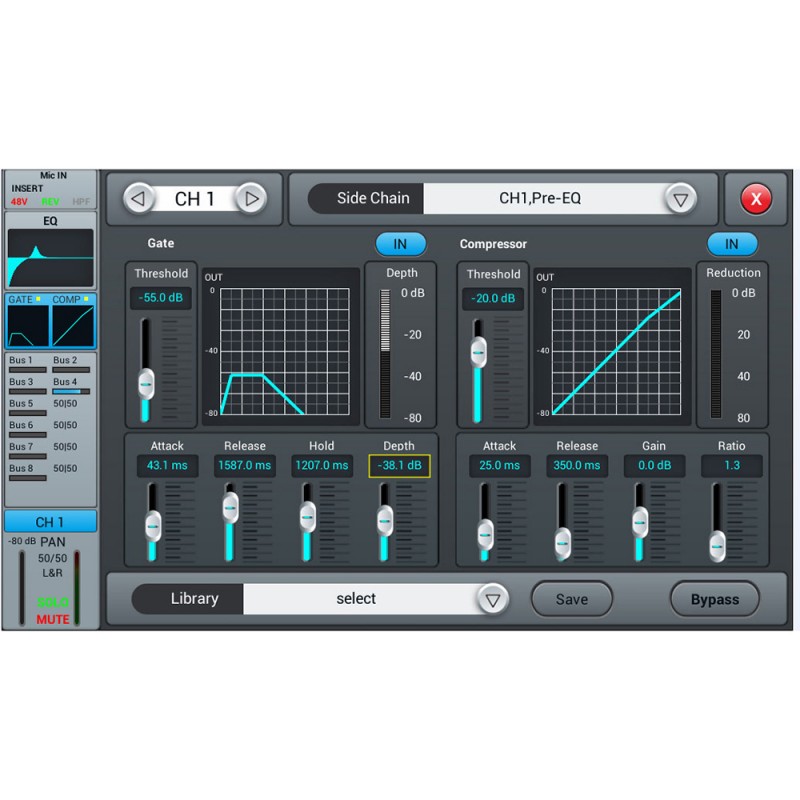

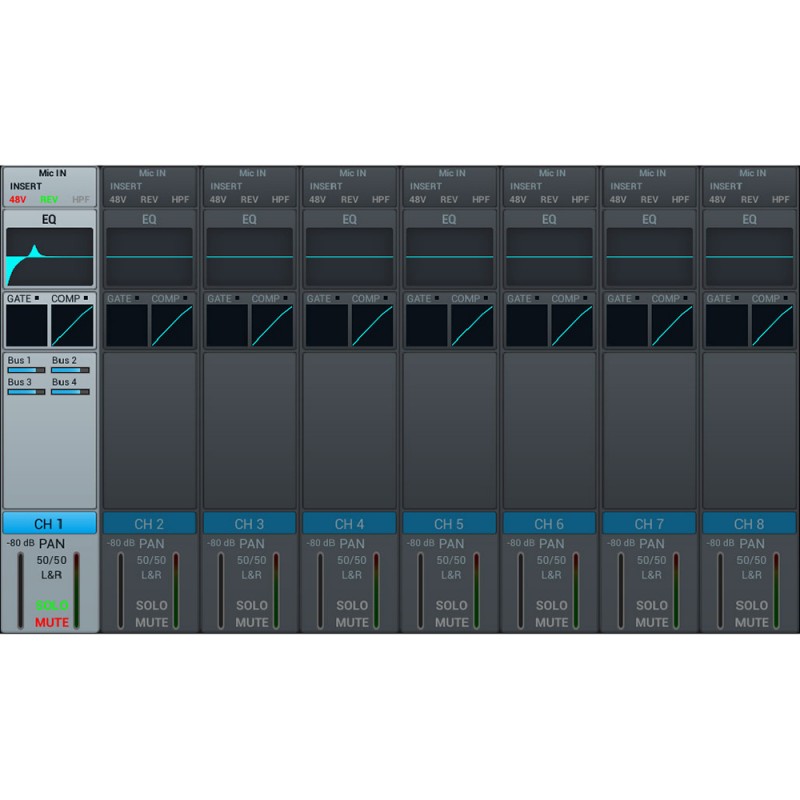

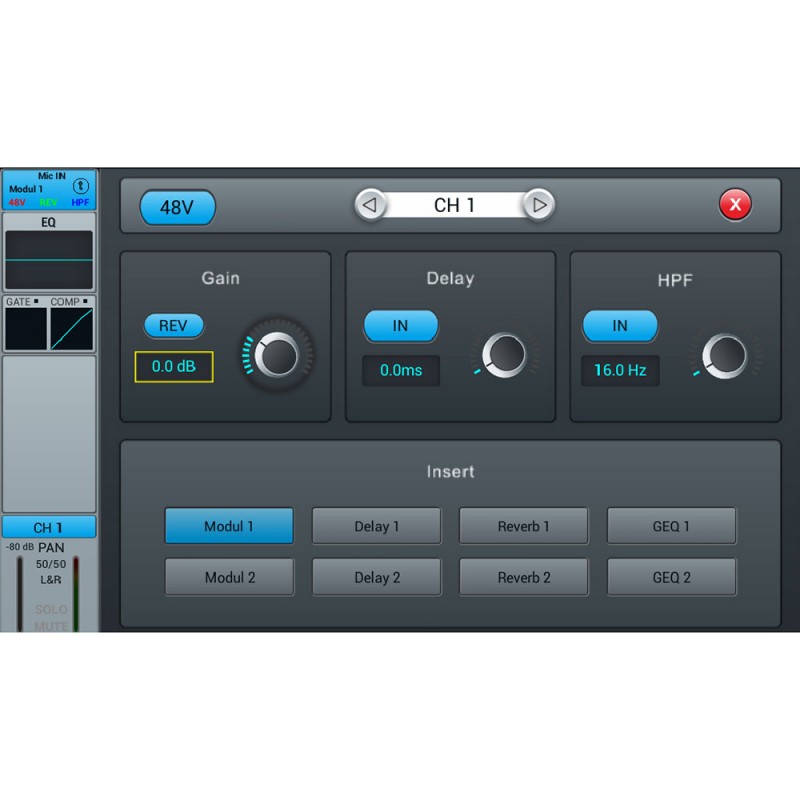

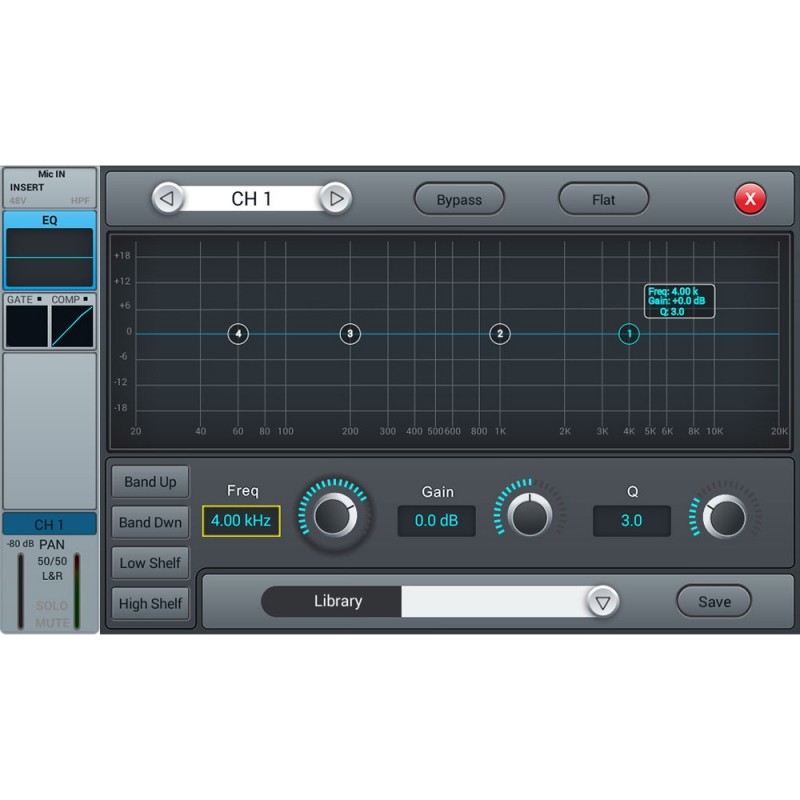

  • Input channel functions : Phase, Delay, high pass filter, 4 band parametric equalizer, noise gate, compressor, pan, effects
  • Outputs : 8 assignable XLR, AES/EBU, S/PDIF and headphone

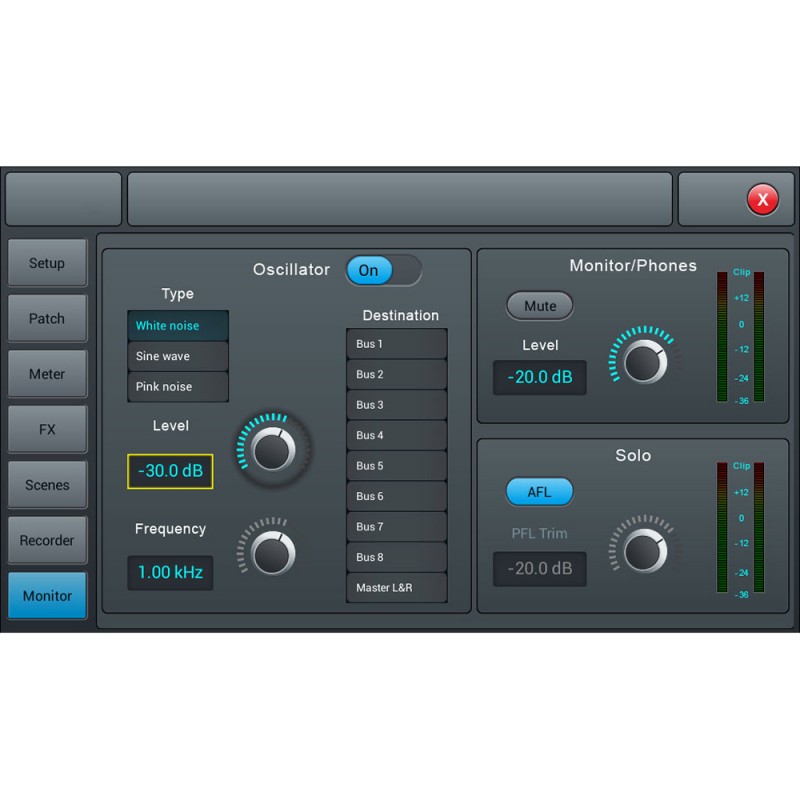

  • Internal signal generator :White, sinusoidal andWhite noise
  • Phantom power : 48V independently activatable on each channel

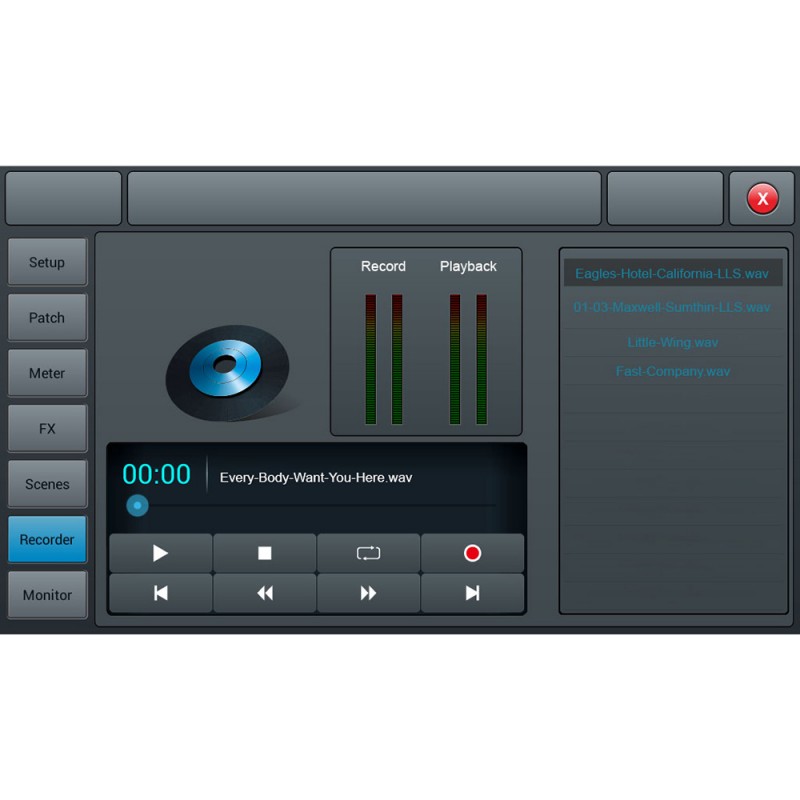

  • USB Features Play and record songs, system update, scene backup and external network card
  • Screen : 7-inch, 1024 x 600 pixel, high definition touchscreen
  • AD/DA : 192KHz/24 bits max.
  • Sampling frequency : 48KHz / 44.1KHz
  • DSP : SHARC ADI 40-bit floating point processor, 4th generation, 450M

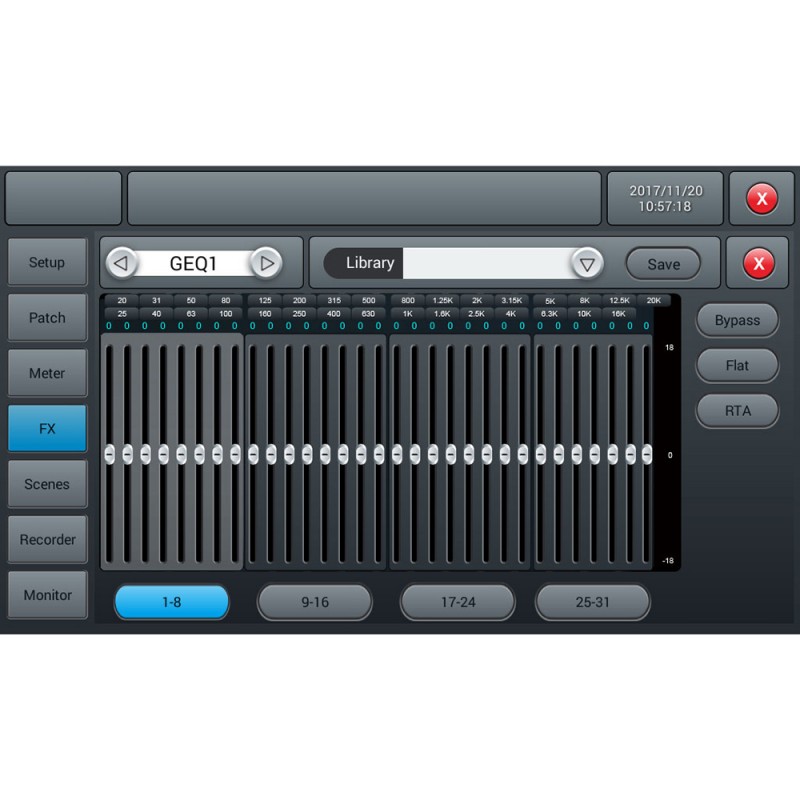

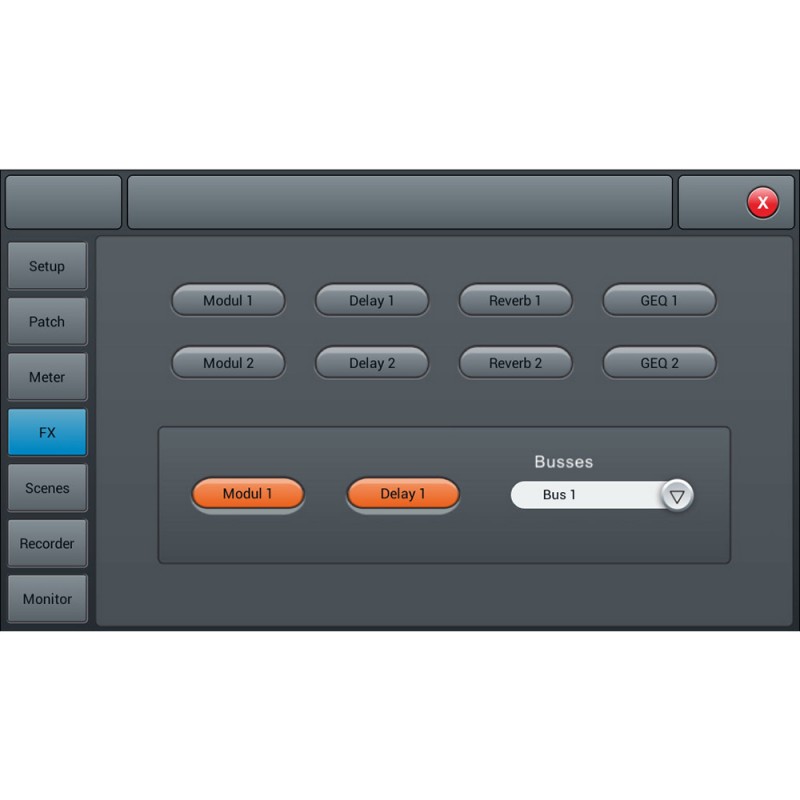

  • Effects : 8 modules: 2 Reverbs, 2 Modulation, 2 Delay and 2 x15 bands graphic equalizers
  • Système : Custom Android

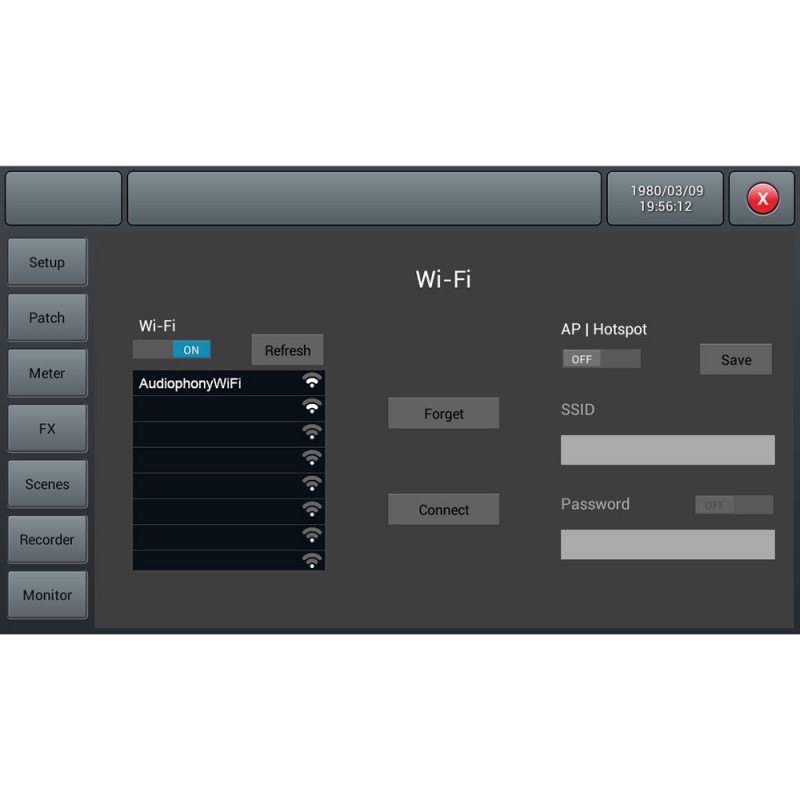

  • Network :Via 1 external USB module (supplied)

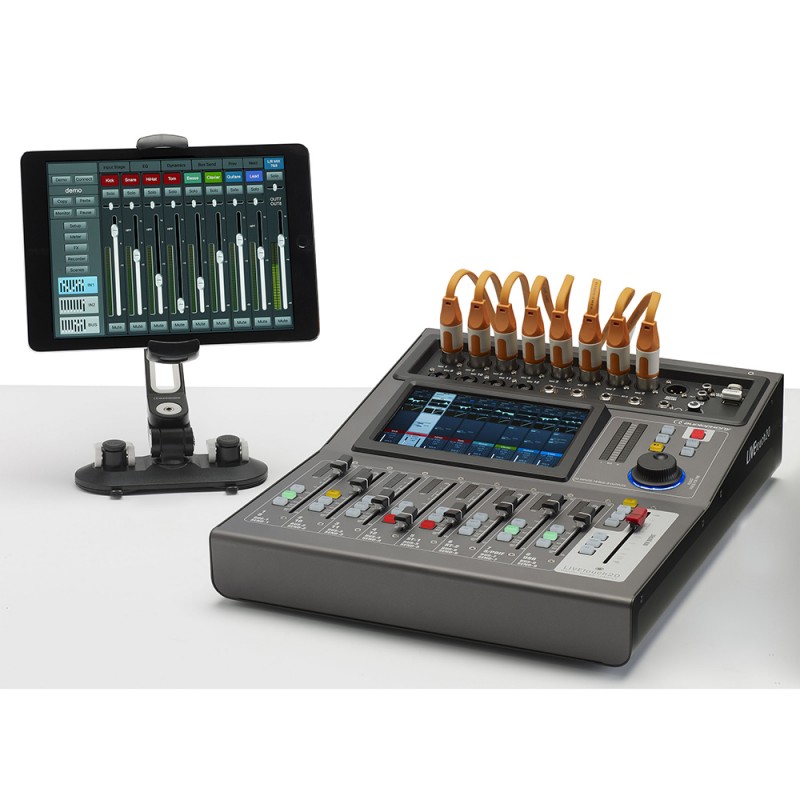

  • Remote control :Via 1 iPad application
  • Power supply : 100-240V 50/60Hz > DC12V
  • Dimensions : 445 x 325 x 100mm
  • Weight : 5.3 Kg

Packaging content

  • The LIVEtouch20 console
  • 1 external power supply
  • 1 IEC power cord
  • 1WiFi dongle
  • The user guide
