Amplificatore da rack 19," 4x150W compatto e leggero. Il suo funzionamento silenzioso ne consente l'utilizzo in qualsiasi ambiente. Modalità stereo fino a 8 altoparlanti.
Compact and lightweight 19" rack 4x150W amplifier. Its quiet operation allows the use in any environment. Stereo mode up to 8 speakers.
Amplificateur professionnel appartenant à la série Ti, 4 x 150 W sous 8 ohms ou 2 x 300 W sous 8 ohms compact et léger en rack 19" 1U. Son fonctionnement silencieux permet de l'utiliser dans n'importe quel environnement. Mode stéréo jusqu'à 8 enceintes.
Dati tecnici
OVERVIEW
- Class-D amplifier
- Switched-mode power supply
- Mode selection: Stereo, Bridge or Parallel
- Independent limiter for each channel
- Extremely accurate and independent level settings for each channel
- LEDs indicators
- Convection cooled
- Combo XLR/Jack
- Unbalanced RCA outputs
- Binding post-jacks or Speakon® outputs
- Short-circuit, over current and high temperature independent protections for each channel
- 2x19" rack mount spaces
TECHNICAL SPECIFICATIONS
- Stereo Max power: 4 Ω RMS stereo power (minimum): 4 x 150 W RMS; 8 Ω RMS stereo power: 4 x 80 W RMS;
- Mono bridged Max power: 8 Ω bridged power (minimum): 2 x 230 W RMS;
- Signal-to-noise ratio Less than 90 dB
- Input sensitivity: 4 dBu +/-2 dB
- Distortion: THD at 1kHz 1/2 rated power Less than 0.1%; Slew rate: - 65 dB at 1 kHz;
- Frequency response (4 ?/1 W): +0.5 dB ; 20 Hz-20 kHz
- Input impedance : unbalanced 15 kΩ / Balance 30 kΩ
- Clip: 0 dBr
- Cooling: Convection cooled
- Input connectors: Combo XLR/Jack
- Output connectors: Binding post-jacks + 4-pole Speakon®

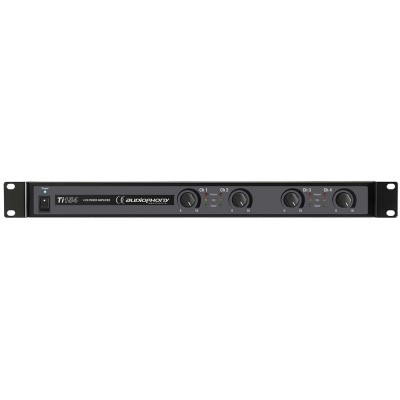

- Front control panel: AC power switch, Channel 1 and 2Volume

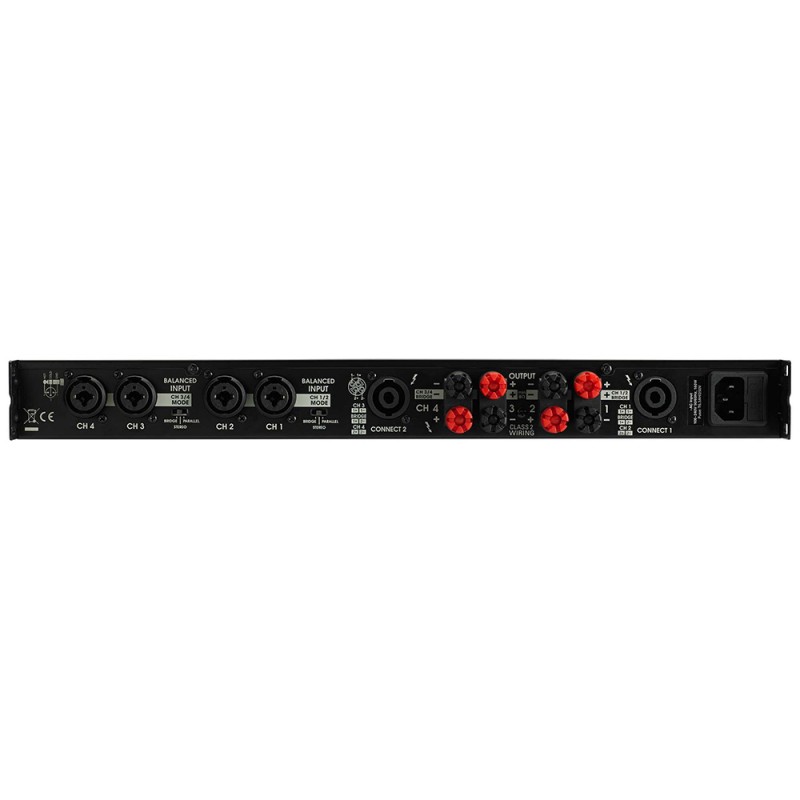

- Rear control panel: Mode selection button
- Indicators: Protect (red) / Clip (yellow) / Signal (green)
- Protections: Short-circuits, over current and high temperature protected
- Power supply: 100/230 V AC - 50/60 Hz
- Dimensions: 482 mm x 44 mm x 330 mm
- NetWeight: 4.3 kg
